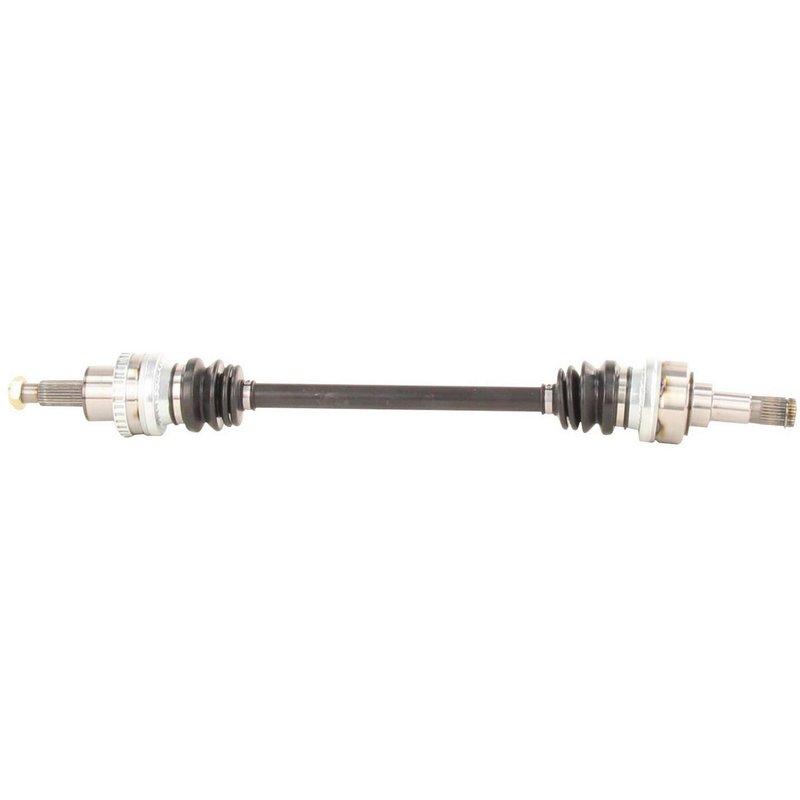

TrakMotive JG-8003 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft JG-8003 for Jaguar X-Type

The TrakMotive CV Axle Shaft JG-8003 is engineered specifically for the Jaguar X-Type, providing reliable driveline performance. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's CV components.

• Compatible with Jaguar X-Type models
• Includes ABS tone ring with 32 window-type teeth
• Neoprene boot material for enhanced durability
• Self-locking hex axle nut included (M22*1.5 thread size)
• Overall compressed length of 31.1 inches (790 mm)
• Inboard joint with 28 splines, outboard joint with 26 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored to specific vehicle applications. This CV Axle Shaft line emphasizes quality materials and accurate specifications, such as the inclusion of ABS tone rings and neoprene boots, to maintain optimal performance and longevity in CV components.

Technical Description and Specifications

This CV Axle Shaft (part number JG-8003) features a window-type ABS ring with 32 teeth, which is included to maintain proper ABS sensor function. The axle nut is a self-locking hex type, measuring 1 1/4 inches (32 mm) across the flats, with a height of 15 mm (3/5 inch) and a length of 37 mm (1 1/2 inch). The shaft includes a male inboard joint with 28 splines and a conventional outboard joint with 26 splines, connected via spline style. The neoprene boot material offers resistance to wear and environmental factors, helping to protect the joint from contaminants. The overall compressed length of the axle shaft is 31.1 inches (790 mm), ensuring proper fitment within the Jaguar X-Type driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Jaguar X-Type vehicles
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and joint contamination with durable neoprene boot
• Ensures secure wheel attachment with included self-locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft JG-8003, verify compatibility with your Jaguar X-Type model year and drivetrain configuration. Use the included self-locking hex axle nut (M22*1.5 thread) and torque to manufacturer specifications. Inspect the ABS tone ring alignment to ensure proper sensor operation. Handle the neoprene boot carefully to avoid damage during installation. It is recommended to replace any related hardware or seals to maintain driveline integrity.

Quality Assurance and Warranty Information

This CV Axle Shaft is a new, direct replacement part manufactured to meet OEM standards for fit and function. The inclusion of a self-locking axle nut and ABS tone ring reflects attention to detail in design. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Jaguar X-Type vehicles.
