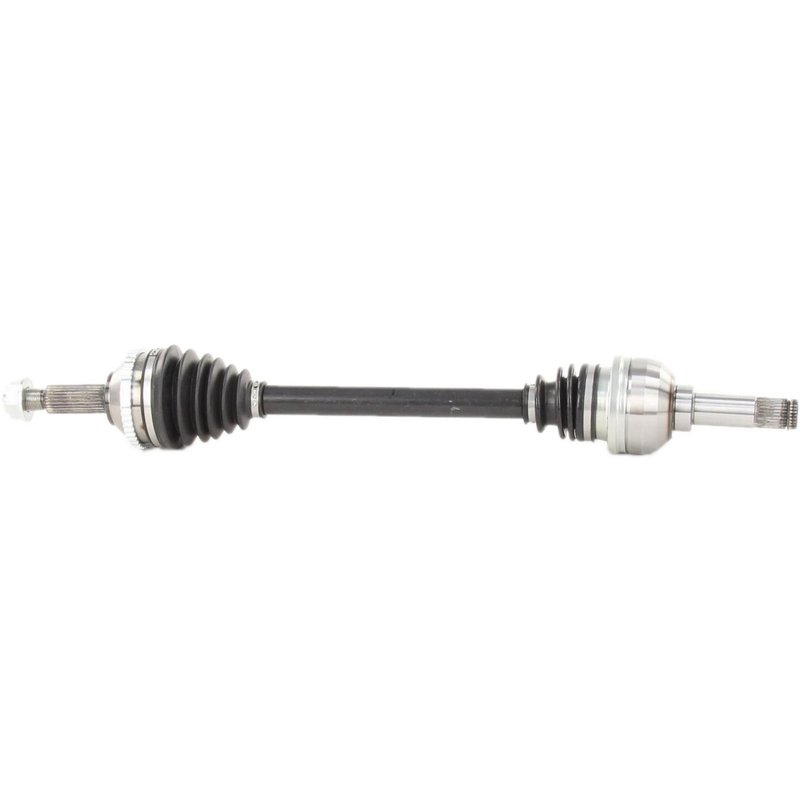

TrakMotive JG-8004 CV Axle Shaft - Rear Left
| Brand | TrakMotive JG-8004 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 46 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | HEX |
| Axle Nut Height (in) | 0.91 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.4 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.61 |
| Axle Nut Length (mm) | 40.99 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 30.55 |
| Overall Compressed Length (mm) | 776 |
| Product line | CV Axle Shaft |
| Fits | Jaguar · 19 vehicles |
OE-style replacement. New CV axle shaft with spline connections for straightforward installation.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Toothed ring and axle nut are included for a complete assembly.
Cross-references TrakMotive JG-8004, C2C12261 and C2C22871 for the same application. See all 7.
Rear Left CV Axle Shaft for Jaguar Applications
TrakMotive JG-8004 is a new rear left CV axle shaft built for specific Jaguar rear-drive applications. It is engineered with 28 inboard splines, 28 outboard splines, and a 46-tooth toothed ABS ring with tone ring included for the listed vehicles.
This CV axle shaft is part of TrakMotive’s CV Axle Shaft line, focused on direct-fit driveline replacement parts for passenger vehicles. JG-8004 includes a self-lock axle nut and uses a neoprene boot material for the specified application.
- New CV axle shaft for rear left installation
- 28 inboard splines and 28 outboard splines
- 46-tooth toothed ABS ring with tone ring included
- Overall compressed length: 30.55 in. (776 mm)
- Axle nut included with M24 x 2 thread size, 35.5 mm hex size, and self-lock design
- Neoprene boot material
- TrakMotive part number JG-8004
Detailed Product Information
TrakMotive JG-8004 is a rear left CV axle shaft for select Jaguar XJR, XKR, S-Type, XJ8, Super V8, and Vanden Plas models. It is built as a new replacement axle with male inboard joint design, conventional outboard joint design, and spline-style shaft connections at both ends. The axle measures 30.55 inches compressed and includes the ABS tone ring needed for the listed ABS-equipped applications. Cross-reference part numbers include XR833778 and XR843491 for the same application.
Common Problems This Part Addresses
- Clicking or popping from a worn CV joint
- Vibration during acceleration from a damaged axle shaft
- ABS warning light caused by a failed tone ring or sensor trigger surface
- Grease leakage from a deteriorated axle boot
- Driveline noise from spline or joint wear
Installation Notes and Fitment
Fits 2008-2009 Jaguar XJR, rear left. Fits 2006 Jaguar XJR, rear left. Fits 2007-2009 Jaguar XKR, rear left. Fits 2006-2008 Jaguar S-Type, rear left. Fits 2006-2008 Jaguar XJ8, rear left. Fits 2006 Jaguar Super V8, rear left. Fits 2006 Jaguar Vanden Plas, rear left. Fits 2005 Jaguar S-Type, rear left, from VIN N41581. Fits 2005 Jaguar Super V8, rear left, from VIN G41512. Fits 2005 Jaguar Vanden Plas, rear left, from VIN G41512. Fits 2005 Jaguar XJ8, rear left, from VIN G41512. Fits 2005 Jaguar XJR, rear left, from VIN G41512.
Verify axle length, spline count, ABS ring style, and VIN breakpoints before installation. Confirm the rear left position and compare the original axle nut thread size and hex size to the vehicle specification before assembly.
Quality Assurance
TrakMotive lists this axle shaft as a new part and backs it with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production standards for this driveline component.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Jaguar | XJR | Rear Left | CV Axle Shaft |
| 2009 | Jaguar | XKR | Rear Left | CV Axle Shaft |
| 2008 | Jaguar | S-Type | Rear Left | CV Axle Shaft |
| 2008 | Jaguar | XJ8 | Rear Left | CV Axle Shaft |
| 2008 | Jaguar | XJR | Rear Left | CV Axle Shaft |
| 2008 | Jaguar | XKR | Rear Left | CV Axle Shaft |
| 2007 | Jaguar | S-Type | Rear Left | CV Axle Shaft |
| 2007 | Jaguar | XJ8 | Rear Left | CV Axle Shaft |
| 2007 | Jaguar | XKR | Rear Left | CV Axle Shaft |
| 2006 | Jaguar | S-Type | Rear Left | CV Axle Shaft |
| 2006 | Jaguar | Super V8 | Rear Left | CV Axle Shaft |
| 2006 | Jaguar | Vanden Plas | Rear Left | CV Axle Shaft |
| 2006 | Jaguar | XJ8 | Rear Left | CV Axle Shaft |
| 2006 | Jaguar | XJR | Rear Left | CV Axle Shaft |
| 2005 | Jaguar | S-Type | Rear Left | From VIN N41581; CV Axle Shaft |
| 2005 | Jaguar | Super V8 | Rear Left | From VIN G41512; CV Axle Shaft |
| 2005 | Jaguar | Vanden Plas | Rear Left | From VIN G41512; CV Axle Shaft |
| 2005 | Jaguar | XJ8 | Rear Left | From VIN G41512; CV Axle Shaft |
| 2005 | Jaguar | XJR | Rear Left | From VIN G41512; CV Axle Shaft |
