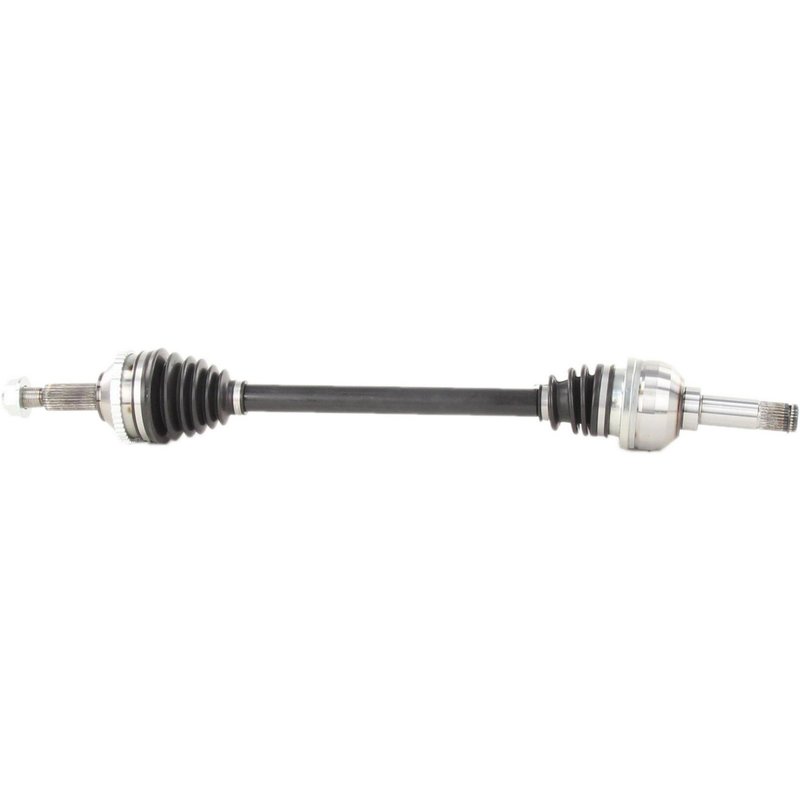

TrakMotive JG-8005 CV Axle Shaft - Rear Right
| Brand | TrakMotive JG-8005 |
|---|---|
| Position | Rear Right |
| Abs Ring Tooth Count | 46 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | HEX |
| Axle Nut Height (in) | 0.91 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.4 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.61 |
| Axle Nut Length (mm) | 40.99 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 31 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 32.68 |
| Overall Compressed Length (mm) | 830 |
| Product line | CV Axle Shaft |
| Fits | Jaguar · 15 vehicles |
New axle shaft. Built with neoprene boot material and spline connections for dependable driveline operation.
ABS tone ring included. Toothed ring with 46 teeth for ABS-equipped applications.
Hardware included. Comes with a self-locking axle nut for easier installation.
Cross-references TrakMotive JG-8005 and C2P3968 for the same application. See all 2.
TrakMotive JG-8005 Rear Right CV Axle Shaft
The TrakMotive JG-8005 is a new rear right CV axle shaft for select Jaguar applications, including the XJR, XKR, S-Type, XJ8, Super V8, and Vanden Plas. Built for direct driveline replacement, it includes the axle nut and ABS tone ring details needed for the listed fitments.
Key Features
- New CV axle shaft for rear right installation
- Fits select 2005-2009 Jaguar XJR, XKR, S-Type, XJ8, Super V8, and Vanden Plas applications
- Overall compressed length: 32.68 in. (830 mm)
- Boot material: neoprene
- Inboard shaft connection style: spline; outboard shaft connection style: spline
- Inboard joint type: male; outboard joint type: conventional
- ABS tone ring included with 46-tooth toothed ring
- Axle nut included: M24 x 2 thread, 35.5 mm hex size, self-locking type
- TrakMotive JG-8005 cross-references C2P3968 for the same application
Detailed Description
This TrakMotive CV axle shaft is engineered for rear right driveline service on specific Jaguar rear-wheel-drive platforms. The JG-8005 uses a spline-style inboard and outboard connection, a male inboard joint, and a conventional outboard joint to match the listed vehicle applications. It is a new replacement part, not remanufactured, and is built with a neoprene boot for driveline protection. The included ABS tone ring features 46 teeth, and the axle nut is supplied with the correct M24 x 2 thread specification for the listed fitments. Compatible with 2008-2009 Jaguar XJR rear right, 2007-2009 Jaguar XKR rear right, and 2006-2008 Jaguar S-Type rear right applications, this part also covers select 2005 Jaguar models with VIN-specific notes. TrakMotive JG-8005 is a direct-fit option for restoring axle function on these Jaguar vehicles.
What This Part Helps Address
- Clicking or popping noises from a worn rear axle assembly
- Vibration during acceleration caused by driveline wear
- Axle shaft play or looseness at the rear right position
- ABS signal issues related to a damaged tone ring on the axle
- Loss of smooth power transfer from the differential to the wheel hub
Installation Notes and Tips
Verify the rear right position and confirm the VIN-specific notes for 2005 Jaguar S-Type, Super V8, Vanden Plas, XJ8, and XJR applications before ordering. Match the axle nut thread size, hex size, and overall compressed length to the original part during installation. Inspect related seals, hub components, and mounting surfaces for wear before fitting the new axle shaft.
Quality Assurance
TrakMotive identifies this axle shaft as a new component and states that its products are backed by a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and quality management for driveline components.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Jaguar | XJR | Rear Right | CV Axle Shaft |
| 2009 | Jaguar | XKR | Rear Right | CV Axle Shaft |
| 2008 | Jaguar | S-Type | Rear Right | CV Axle Shaft |
| 2008 | Jaguar | XJR | Rear Right | CV Axle Shaft |
| 2008 | Jaguar | XKR | Rear Right | CV Axle Shaft |
| 2007 | Jaguar | S-Type | Rear Right | CV Axle Shaft |
| 2007 | Jaguar | XJ8 | Rear Right | CV Axle Shaft |
| 2007 | Jaguar | XKR | Rear Right | CV Axle Shaft |
| 2006 | Jaguar | S-Type | Rear Right | CV Axle Shaft |
| 2006 | Jaguar | XJ8 | Rear Right | CV Axle Shaft |
| 2005 | Jaguar | S-Type | Rear Right | From VIN N41581; CV Axle Shaft |
| 2005 | Jaguar | Super V8 | Rear Right | From VIN G41512; CV Axle Shaft |
| 2005 | Jaguar | Vanden Plas | Rear Right | From VIN G41512; CV Axle Shaft |
| 2005 | Jaguar | XJ8 | Rear Right | From VIN G41512; CV Axle Shaft |
| 2005 | Jaguar | XJR | Rear Right | From VIN G41512; CV Axle Shaft |
