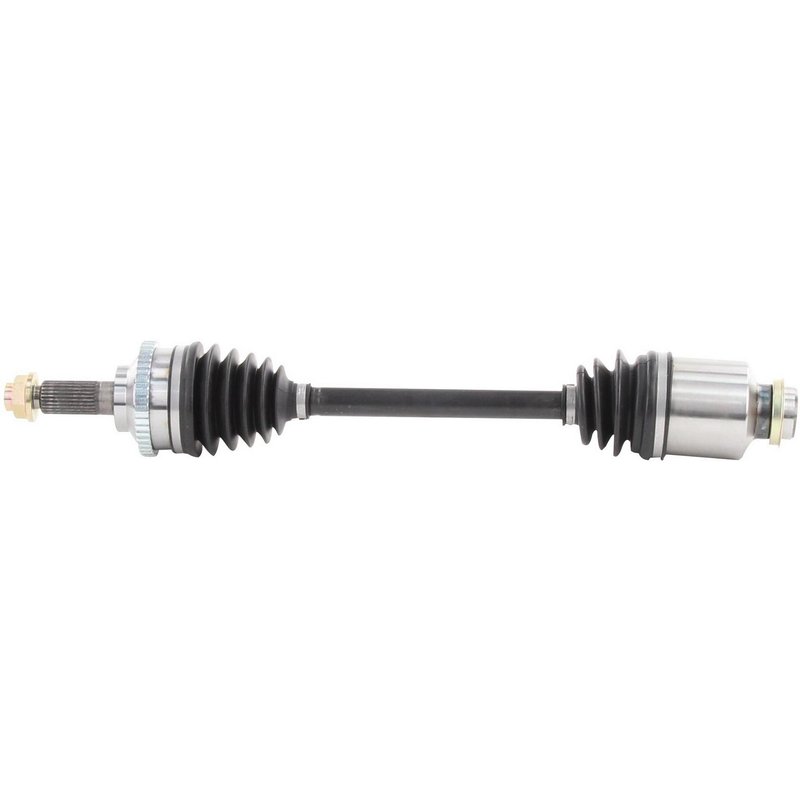

TrakMotive KA-8012 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft KA-8012

The TrakMotive CV Axle Shaft KA-8012 is engineered for reliable driveline performance in Kia Sephia and Kia Spectra models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front axle assembly.

• Compatible with Kia Sephia and Kia Spectra
• Includes a neoprene boot for enhanced joint protection
• Equipped with a 46-tooth ABS ring and included tone ring
• Axle nut with hex head, 1 1/4 inch hex size, and stake locking type
• Overall compressed length of 24.33 inches (618 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality constant velocity components tailored for specific vehicle applications. This line emphasizes precise engineering, including correct spline counts and joint types, to maintain OEM specifications. The KA-8012 model features a female inboard joint and a conventional outboard joint, ensuring compatibility with the driveline system of Kia Sephia and Spectra vehicles.

Technical Specifications and Features

This CV axle shaft includes a 46-tooth toothed ABS ring with an included tone ring, supporting accurate wheel speed sensor readings. The neoprene boot material provides resistance to wear and environmental factors, protecting the joint from contaminants. The axle nut is a hex head type with a 1 1/4 inch (32 mm) hex size, 1 inch (24 mm) height, and a length of 1 1/2 inches (37 mm), featuring a stake locking mechanism for secure installation. The shaft has 28-2t inboard splines and 28 outboard splines, with an overall compressed length of 24.33 inches (618 mm), matching the original equipment dimensions.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Kia Sephia and Spectra
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included stake-lock axle nut

Installation Notes and Tips

Ensure compatibility by verifying the part number KA-8012 against your Kia Sephia or Spectra model year and specifications. Use proper torque settings for the M22x1.5 axle nut and stake the nut as required to prevent loosening. Inspect the CV boot for damage during installation and replace if necessary. It is recommended to check wheel alignment and suspension components when replacing the CV axle shaft.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft KA-8012 is a new, remanufactured-free component designed to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance and fitment.
