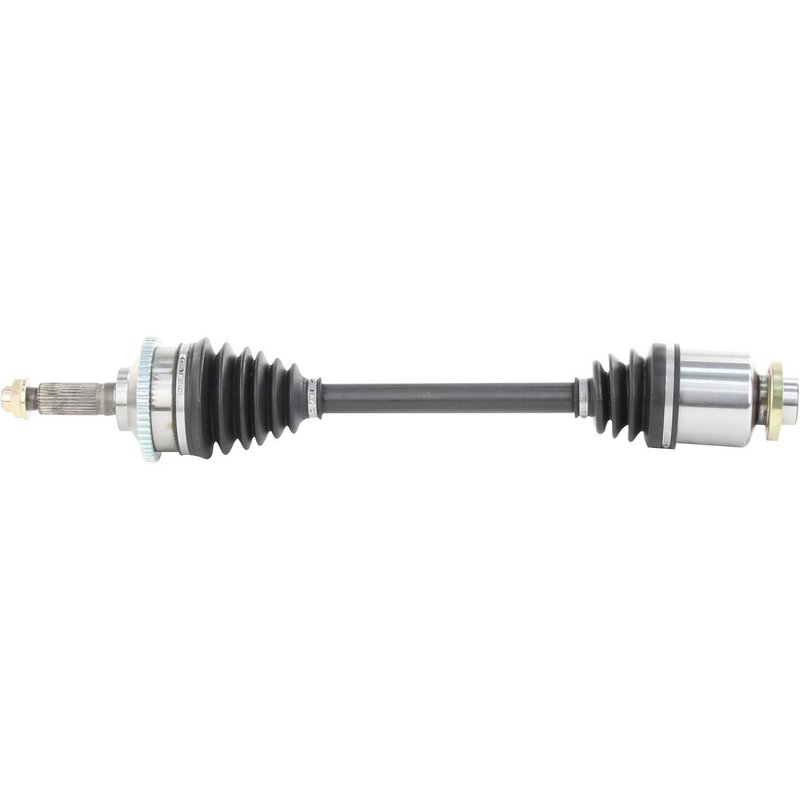

TrakMotive KA-8028 CV Axle Shaft - Front Right
| Brand | TrakMotive KA-8028 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 54 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28-2T |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.14 |
| Overall Compressed Length (mm) | 664 |
| Product line | CV Axle Shaft |
| Fits | Kia · 4 vehicles |
New CV axle shaft. Built as a direct replacement for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Ready for applications that use a toothed sensor ring.
Cross-references AMS Automotive 6462, Cardone New 66-8130 and Cardone Reman 60-8130 for the same application. See all 27.
CV Axle Shaft for Kia Sedona
Restore driveline performance with the TrakMotive CV Axle Shaft KA-8028 for the front right position on select 2002-2005 Kia Sedona models. This new axle shaft is built for direct replacement service and includes the axle nut and ABS tone ring details needed for the listed application.
Key Features
- Fits 2002-2005 Kia Sedona, front right
- TrakMotive CV Axle Shaft, part number KA-8028
- New axle shaft construction for replacement service
- Neoprene boot material for joint protection
- Inboard female joint with 28-2T splines
- Outboard conventional joint with 28 splines
- ABS tone ring included; 54-tooth toothed ring
- Axle nut included, M22 x 1.5 thread, 31.8 mm hex size
- Overall compressed length: 26.14 in. (664 mm)
Product Details
The TrakMotive KA-8028 CV axle shaft is engineered for the front right side of the Kia Sedona and matches the listed OE-style configuration for the application. It uses a female inboard connection, a conventional outboard joint, and a neoprene boot to support driveline articulation while maintaining a proper fit. This part cross-references Cardone New 66-8130 for the same application.
TrakMotive positions the CV Axle Shaft line as a direct-fit driveline replacement category, and this part reflects that approach with application-specific dimensions, spline counts, and ABS ring details. The KA-8028 is listed for 2002-2005 Kia Sedona front right service and is also referenced by the part number KA-8028 in interchange data.
Common Repair Applications
- Front-end vibration during acceleration
- Clicking or popping from the front right axle area
- Worn CV joints or torn axle boot service
- ABS signal issues related to a damaged tone ring
- Axle replacement after driveline wear or contamination
Installation Notes
Verify spline count, axle length, nut thread size, and ABS ring configuration before installation. This axle uses a hex axle nut with stake locking, so follow the vehicle service procedure for nut removal and reinstallation. Confirm the front right position and inspect related seals, hubs, and suspension components during service.
Quality Assurance
TrakMotive states that this CV axle shaft line is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for driveline components.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Kia | Sedona | Front Right | CV Axle Shaft |
| 2004 | Kia | Sedona | Front Right | CV Axle Shaft |
| 2003 | Kia | Sedona | Front Right | CV Axle Shaft |
| 2002 | Kia | Sedona | Front Right | CV Axle Shaft |
