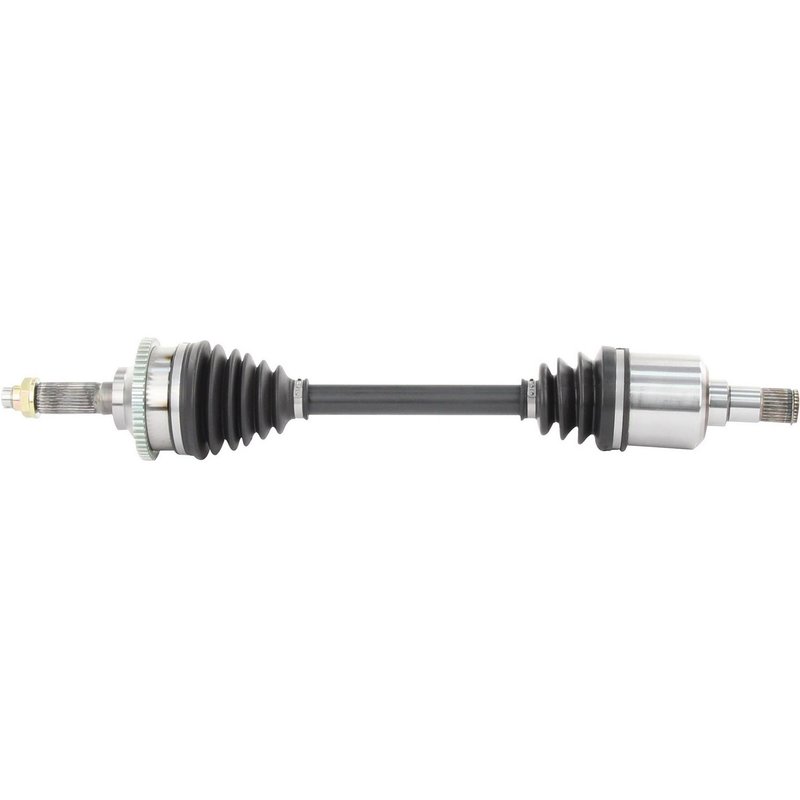

TrakMotive KA-8030 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft KA-8030 for Kia Sedona

The TrakMotive CV Axle Shaft KA-8030 is engineered specifically for Kia Sedona models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle's driveline system.

• Compatible with Kia Sedona vehicles
• Includes ABS tone ring with 54 toothed ring teeth
• Neoprene boot material for durability and protection
• Comes with a hex head axle nut (M22*1.5 thread size)
• Overall compressed length of 26.46 inches (672 mm)
• Inboard and outboard joint types: male and conventional respectively
• Axle nut locking type: stake for secure installation
• 28 splines on both inboard and outboard shafts

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that match or exceed factory standards. This line includes CV axle shafts designed with attention to critical attributes such as ABS tone ring integration, boot material quality, and secure axle nut specifications. The KA-8030 model exemplifies this approach by incorporating a neoprene boot and a stake-type locking axle nut to maintain driveline integrity and safety.

Technical Specifications and Features

The KA-8030 CV axle shaft features a 54-tooth ABS ring with a toothed design, which is included to ensure proper ABS sensor function. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The axle nut included is a hex head type with a 1 1/4 inch (31.8 mm) hex size and a thread size of M22*1.5, measuring 4/5 inch (20 mm) in height and 1 1/3 inch (34.4 mm) in length. The stake locking type of the axle nut provides a secure fit to prevent loosening during operation. Both the inboard and outboard shafts have 28 splines, with the inboard joint being male type and the outboard joint conventional, ensuring compatibility with the Kia Sedona's driveline system. The overall compressed length of 26.46 inches (672 mm) matches OEM requirements for proper installation.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Kia Sedona
• Restoring ABS sensor functionality with included toothed ABS tone ring
• Eliminating axle vibration or noise caused by joint wear
• Addressing boot damage to prevent grease leakage and contamination
• Securing axle connection with included stake-type locking nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft KA-8030 on a Kia Sedona, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to ensure a proper seal. It is recommended to use appropriate tools for the 1 1/4 inch hex axle nut and confirm spline alignment on both inboard and outboard shafts for smooth installation.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet OEM standards for fit and function. TrakMotive products undergo quality control to ensure durability and performance. While specific warranty details are not provided here, new parts typically carry manufacturer-backed warranties against defects in materials and workmanship. Always consult product documentation or manufacturer resources for exact warranty terms.
