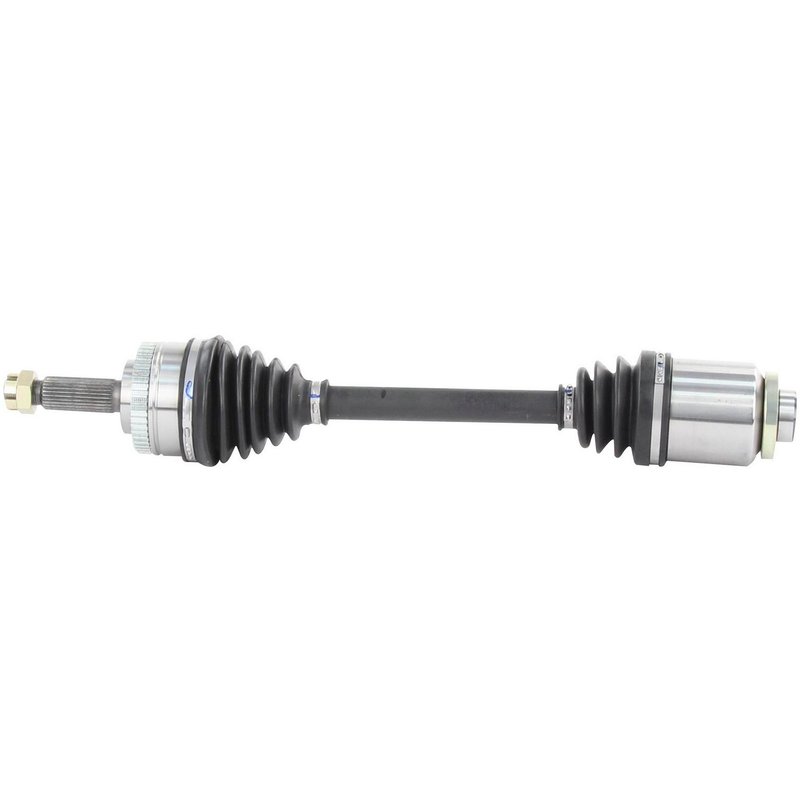

TrakMotive KA-8037 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft KA-8037 for Kia Amanti

The TrakMotive CV Axle Shaft KA-8037 is engineered specifically for Kia Amanti models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Kia Amanti vehicles
• Includes ABS tone ring with 47 toothed ring teeth
• Neoprene boot material for durability and protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 24.02 inches (610 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed for driveline and axle applications. This line emphasizes precise fitment and durability, featuring components such as ABS tone rings and neoprene boots to ensure long-lasting performance. The KA-8037 model is part of this line, offering a new, direct replacement CV axle shaft tailored for Kia Amanti vehicles.

Technical Specifications and Features

This CV axle shaft features a female inboard joint type with 28-2t splines and a conventional outboard joint with 27 splines. The included ABS tone ring has 47 teeth and is of the toothed type, enhancing wheel speed sensor accuracy. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, 6/7 inches (22 mm) in height, and 1 1/2 inches (37 mm) in length, with an M22x1.5 thread size and a cotter pin locking mechanism for secure installation. The neoprene boot material provides resistance to wear and environmental factors, helping to protect the joint from contaminants.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Kia Amanti
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and joint contamination with durable neoprene boot
• Ensures secure wheel attachment with included locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft KA-8037, ensure the cotter pin locking axle nut is properly secured to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Use appropriate torque specifications for the axle nut and inspect the neoprene boot for any damage during installation. This part is designed for direct replacement on Kia Amanti models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft KA-8037 is a new, remanufactured-quality component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and durability in driveline applications.
