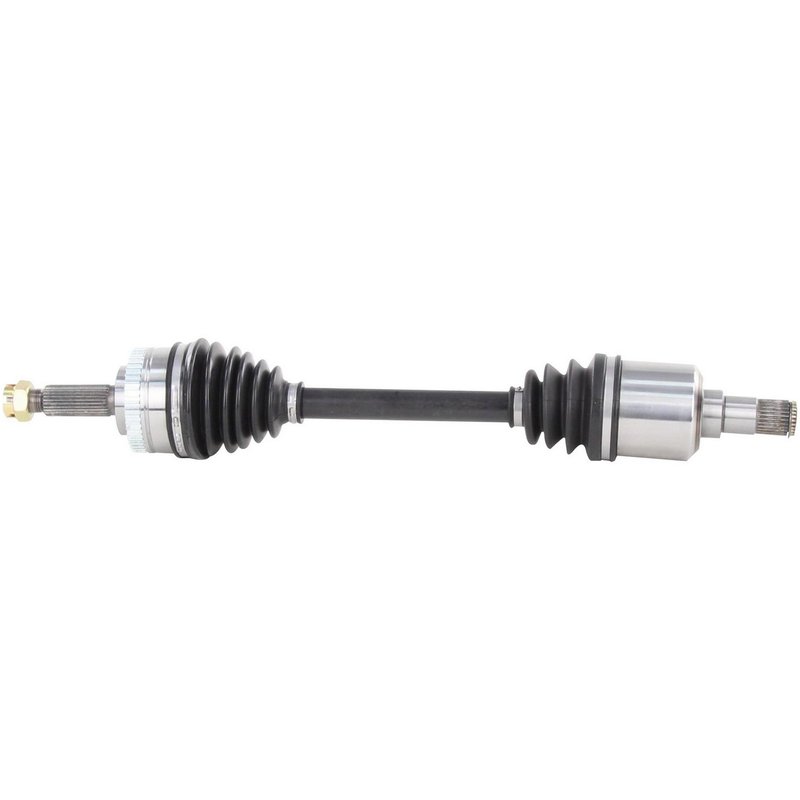

TrakMotive KA-8038 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft KA-8038 for Kia Amanti

The TrakMotive CV Axle Shaft KA-8038 is designed specifically for the Kia Amanti, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Kia Amanti models
• Includes ABS tone ring with 47 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 25.63 inches (651 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components engineered for direct fitment and reliable driveline operation. This line includes shafts with integrated ABS tone rings and durable neoprene boots to protect joints from contaminants. The KA-8038 model exemplifies this line’s commitment to precise fit and function for specific vehicle applications like the Kia Amanti.

Technical Specifications and Features

The KA-8038 CV axle shaft features a male inboard joint type with 28 splines and a conventional outboard joint with 27 splines, ensuring proper connection and torque transfer. The included ABS tone ring has 47 teeth and a toothed design, compatible with the vehicle’s ABS system. The axle nut is a hex type measuring 1 1/4 inches (32 mm) across flats, 6/7 inches (22 mm) in height, and 1 1/2 inches (37 mm) in length, with an M22x1.5 thread size and a cotter pin locking mechanism for secure installation. The boot is made from neoprene, providing resistance to wear and environmental factors.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Kia Amanti
• Restoring proper ABS sensor function with included tone ring
• Eliminating axle vibration or clicking noises during turns
• Addressing grease leaks from torn or degraded CV boots
• Ensuring secure axle nut fitment with included hardware

Installation Notes and Tips

When installing the TrakMotive KA-8038 CV axle shaft, verify the spline counts and joint types match the vehicle’s specifications. Use the included hex axle nut with cotter pin locking to secure the shaft properly. Ensure the neoprene boot is seated correctly to prevent contamination. It is recommended to inspect related suspension and driveline components during installation for optimal performance.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component manufactured to meet OEM standards. The inclusion of the ABS tone ring and high-quality neoprene boot supports long-term reliability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure fit and function for Kia Amanti vehicles.
