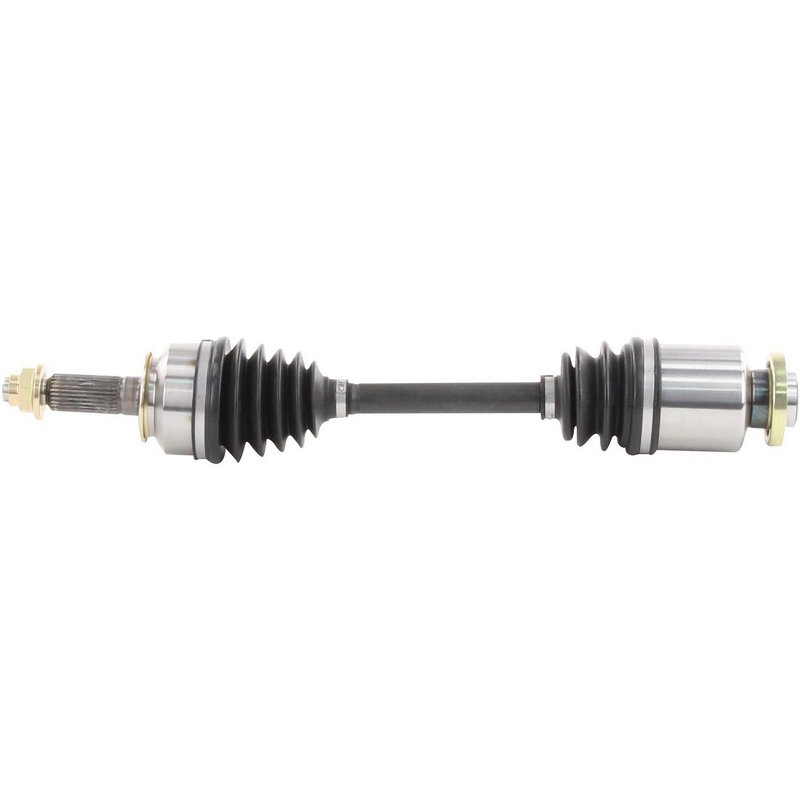

TrakMotive KA-8040 CV Axle Shaft - Front Right
| Brand | TrakMotive KA-8040 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28-2T |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.3 |
| Overall Compressed Length (mm) | 566.5 |
| Product line | CV Axle Shaft |
| Fits | Kia · 7 vehicles |
New CV axle shaft. Built as a direct replacement for straightforward installation.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Conveniently supplied with a stake-locking nut for assembly.
Cross-references ACI 87275, Cardone New 66-8126 and Cardone Reman 60-8126 for the same application. See all 13.
Front Right CV Axle Shaft for Kia Sorento
TrakMotive KA-8040 is a new CV axle shaft for the front right position on select 2003-2009 Kia Sorento models. It is built with a neoprene boot, a female inboard connection, and a conventional outboard joint for direct driveline service.
Key Features
- Fits 2003-2009 Kia Sorento, front right
- New CV axle shaft for driveline repair and replacement
- Neoprene boot material for joint protection
- Female inboard shaft connection with 28-2T inboard splines
- Conventional outboard shaft connection with 28 outboard splines
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and stake locking type
- Overall compressed length: 22.3 in. (566.5 mm)
- ABS tone ring not included
Product Details
The TrakMotive CV Axle Shaft line is built for direct replacement service in driveline and axle applications. KA-8040 is a front right axle shaft for Kia Sorento models from 2003 through 2009, with the correct spline counts, shaft connection styles, and compressed length for the listed application. TrakMotive KA-8040 is a new part, not remanufactured, and it includes the axle nut specified for the assembly. This part cross-references Cardone New 66-8126 for the same application.
Common Repair Uses
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Torn boot or grease loss at the axle assembly
- Axle shaft wear that affects front-wheel driveline operation
- Noise from a damaged front right CV axle on a Kia Sorento
Installation Notes
Verify front right fitment by matching year, model, spline count, and axle nut specifications before installation. Inspect the hub, seals, and surrounding suspension components during replacement, and confirm the axle seats fully in the transmission and hub. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive identifies this axle shaft as a new component from an ISO 9001:1007 and TS 16949:2009 certified company. Limited lifetime warranty coverage is stated by the manufacturer.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2009 | Kia | Sorento | 4WD | Front Right | CV Axle Shaft |
| 2008 | Kia | Sorento | 4WD | Front Right | CV Axle Shaft |
| 2007 | Kia | Sorento | 4WD | Front Right | CV Axle Shaft |
| 2006 | Kia | Sorento | 4WD | Front Right | CV Axle Shaft |
| 2005 | Kia | Sorento | 4WD | Front Right | CV Axle Shaft |
| 2004 | Kia | Sorento | 4WD | Front Right | CV Axle Shaft |
| 2003 | Kia | Sorento | 4WD | Front Right | CV Axle Shaft |
