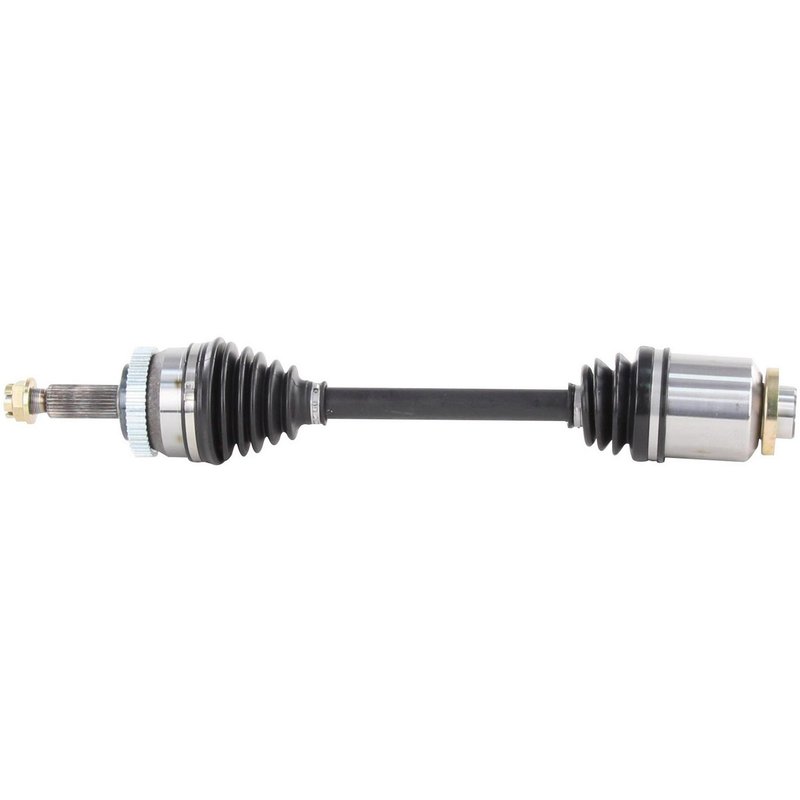

TrakMotive KA-8043 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft KA-8043

The TrakMotive CV Axle Shaft KA-8043 is engineered for reliable driveline performance in Hyundai and Kia vehicles. Designed specifically for models like the Hyundai Tucson and Kia Sportage, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Hyundai Tucson and Kia Sportage
• Includes ABS tone ring with 48 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 23.98 inches (609 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to meet or exceed OEM specifications. This line emphasizes precise engineering, including features like ABS tone rings and robust joint designs, to maintain driveline integrity and vehicle safety. The KA-8043 model exemplifies these standards with its combination of female inboard joint and conventional outboard joint types, ensuring compatibility and performance for specific Hyundai and Kia applications.

Technical Specifications and Features

This CV axle shaft features a 48-tooth ABS ring with a toothed design, which is included to maintain accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/6 inches (30 mm) across flats, with a height of 5/6 inches (21 mm) and a length of 1 1/3 inches (34.6 mm). It uses an M22x1.5 thread size and secures with a cotter pin locking mechanism for added safety. The neoprene boot material provides resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint is female type with 26-2t splines, while the outboard joint is conventional with 27 splines, ensuring proper connection and torque transfer. The overall compressed length of 23.98 inches (609 mm) fits the specified vehicle models precisely.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Hyundai Tucson and Kia Sportage
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and joint contamination with durable neoprene boots
• Secures wheel hub connection with included axle nut and cotter pin locking

Installation Notes and Tips

Ensure compatibility by verifying vehicle make, model, and year before installation. Use proper torque specifications for the M22x1.5 axle nut and secure it with the cotter pin locking mechanism to prevent loosening. Inspect the CV boot for any damage during installation and replace if necessary. It is recommended to use appropriate tools to avoid damage to the splines and joints. Proper alignment and balancing after installation will help maintain driveline performance.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft KA-8043 is a new, not remanufactured, component built to meet OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and fitment for Hyundai Tucson and Kia Sportage vehicles.
