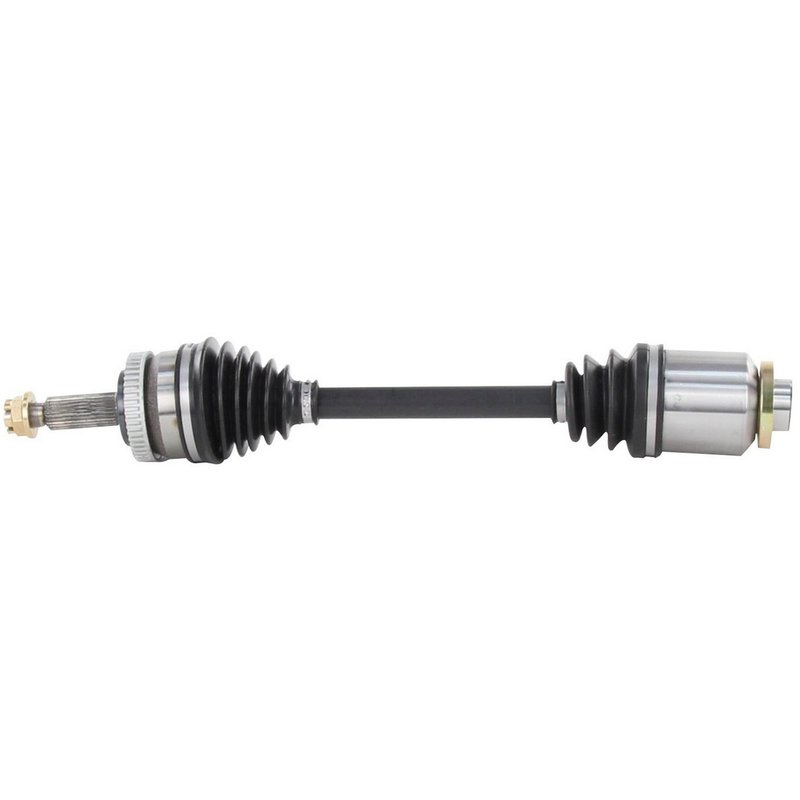

TrakMotive KA-8045 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft KA-8045 for Kia Sportage

The TrakMotive CV Axle Shaft KA-8045 is engineered specifically for Kia Sportage models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Kia Sportage vehicles
• Includes ABS tone ring with 48 toothed ring teeth
• Equipped with a neoprene boot for durability and protection
• Axle nut included with cotter pin locking mechanism
• Overall compressed length of 23.66 inches (601 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line features new CV axle shafts built with precision-engineered joints and connection styles to match factory specifications. The KA-8045 model includes both inboard and outboard joints with female and conventional connection styles respectively, ensuring compatibility and ease of installation on Kia Sportage vehicles.

Technical Specifications and Features

This CV axle shaft includes a 48-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The neoprene boot material offers resistance to wear and environmental damage, extending the life of the joint. The axle nut is a hex head type, measuring 30 mm across flats, with a height of 21 mm and a length of 34.6 mm. It features an M22x1.5 thread size and uses a cotter pin locking type for secure fastening. The inboard joint has 26-2t splines with a female connection style, while the outboard joint has 27 splines with a conventional connection style. The overall compressed length of 23.66 inches (601 mm) ensures proper fitment within the Kia Sportage driveline assembly.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Kia Sportage
• Restoring proper ABS sensor function with included tone ring
• Eliminating axle vibration or clicking noises during turns
• Addressing grease leaks from torn or degraded CV boots
• Ensuring secure axle nut fastening with included cotter pin design

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft KA-8045 on a Kia Sportage, verify the axle nut torque specifications and ensure the cotter pin is properly installed to prevent loosening. Inspect the axle splines for damage before installation to guarantee a secure fit. The neoprene boot should be checked for proper seating to avoid premature wear. It is recommended to use appropriate tools for hex nut removal and installation to avoid rounding the nut.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet or exceed OEM standards. The inclusion of the ABS tone ring and high-quality neoprene boot reflects attention to durability and performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable operation in Kia Sportage driveline systems.
