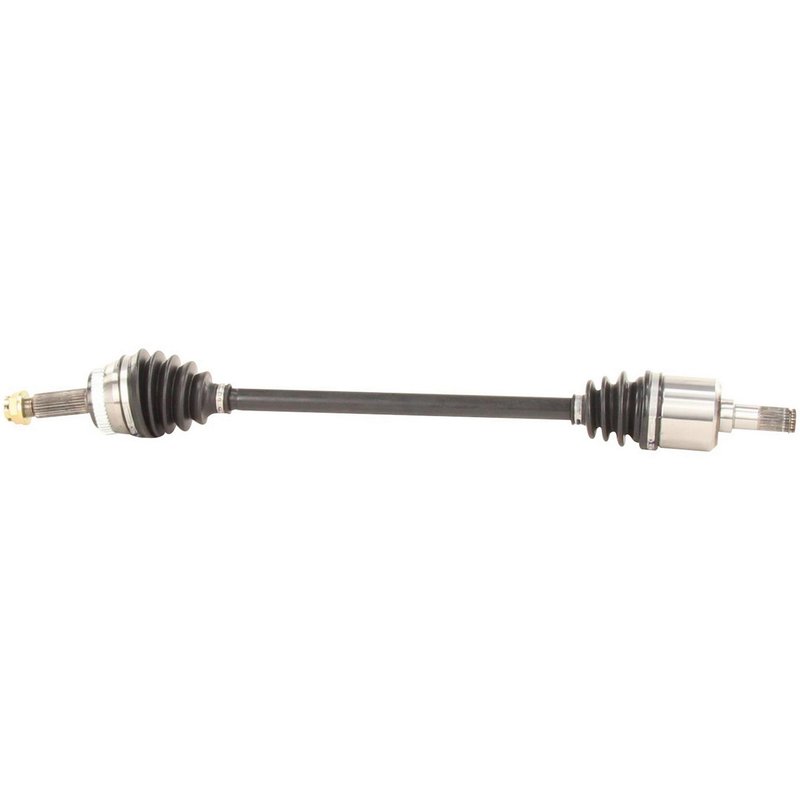

TrakMotive KA-8046 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive KA-8046 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/6 |
| Axle Nut Height (mm) | 21 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 31.63 |
| Overall Compressed Length (mm) | 803.5 |
| Product line | CV Axle Shaft |
| Fits | Kia and Hyundai · 22 vehicles |
New CV axle shaft. Fresh replacement part for dependable driveline service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Built with a toothed ring for ABS-equipped applications.
Cross-references Cardone New 66-3429, Cardone Reman 60-3429 and TrakMotive KA-8046 for the same application. See all 11.
CV Axle Shaft for Kia Sportage and Hyundai Tucson
TrakMotive KA-8046 is a new CV axle shaft for rear applications on select Kia Sportage and Hyundai Tucson models. It is built with a neoprene boot, a toothed ABS ring with 48 teeth, and a supplied axle nut for a direct replacement on the listed vehicles.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: KA-8046
- New construction
- Overall compressed length: 31.63 in. (803.5 mm)
- Inboard joint type: male
- Outboard joint type: conventional
- Inboard splines: 25
- Outboard splines: 27
- Neoprene boot material
- ABS tone ring included with 48-tooth toothed ring
- Axle nut included: M22 x 1.5, 30 mm hex, cotter pin locking type
Product Details
TrakMotive KA-8046 is a CV axle shaft for rear right and rear left positions on 2005-2010 Kia Sportage and 2005-2009 Hyundai Tucson applications. The axle is configured with a male inboard connection, spline-style outboard connection, and the specified spline counts to match the listed driveline setup. This part cross-references Cardone New 66-3429 and Cardone Reman 60-3429 for the same application.
Compatible With 2005-2010 Kia Sportage, rear right and rear left, and 2005-2009 Hyundai Tucson, rear right and rear left. The KA-8046 is a direct-fit driveline replacement for vehicles requiring the listed axle dimensions and ABS ring configuration.
What It Helps Address
- Clicking or popping noises from a worn CV axle
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- ABS warning concerns related to a missing or damaged tone ring
- Driveline play caused by worn inner or outer CV joints
Installation Notes and Tips
Verify axle length, spline count, ABS ring style, and axle nut thread size before installation. This axle uses a 30 mm hex axle nut with M22 x 1.5 threads and cotter pin locking. ABS axles fit non-ABS applications unless otherwise noted, so confirm the vehicle’s original configuration against the listing before service.
Quality Assurance
TrakMotive manufactures this axle as a new replacement part in an ISO 9001:1007 and TS 16949:2009 certified facility. The KA-8046 is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Kia | Sportage | AWD | Rear Right | CV Axle Shaft |
| 2010 | Kia | Sportage | AWD | Rear Left | CV Axle Shaft |
| 2009 | Hyundai | Tucson | 4WD | Rear Right | CV Axle Shaft |
| 2009 | Hyundai | Tucson | 4WD | Rear Left | CV Axle Shaft |
| 2009 | Kia | Sportage | AWD | Rear Right | CV Axle Shaft |
| 2009 | Kia | Sportage | AWD | Rear Left | CV Axle Shaft |
| 2008 | Hyundai | Tucson | 4WD | Rear Right | CV Axle Shaft |
| 2008 | Hyundai | Tucson | 4WD | Rear Left | CV Axle Shaft |
| 2008 | Kia | Sportage | AWD | Rear Right | CV Axle Shaft |
| 2008 | Kia | Sportage | AWD | Rear Left | CV Axle Shaft |
| 2007 | Hyundai | Tucson | 4WD | Rear Right | CV Axle Shaft |
| 2007 | Hyundai | Tucson | 4WD | Rear Left | CV Axle Shaft |
| 2007 | Kia | Sportage | AWD | Rear Right | CV Axle Shaft |
| 2007 | Kia | Sportage | AWD | Rear Left | CV Axle Shaft |
| 2006 | Hyundai | Tucson | 4WD | Rear Right | CV Axle Shaft |
| 2006 | Hyundai | Tucson | 4WD | Rear Left | CV Axle Shaft |
| 2006 | Kia | Sportage | AWD | Rear Right | CV Axle Shaft |
| 2006 | Kia | Sportage | AWD | Rear Left | CV Axle Shaft |
| 2005 | Hyundai | Tucson | 4WD | Rear Right | CV Axle Shaft |
| 2005 | Hyundai | Tucson | 4WD | Rear Left | CV Axle Shaft |
| 2005 | Kia | Sportage | AWD | Rear Right | CV Axle Shaft |
| 2005 | Kia | Sportage | AWD | Rear Left | CV Axle Shaft |
