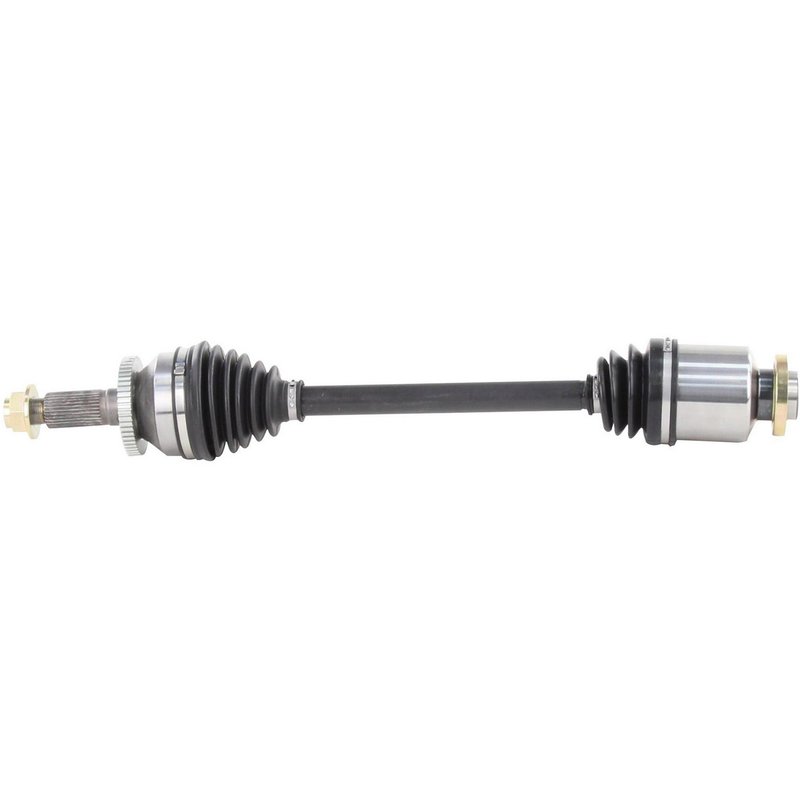

TrakMotive KA-8047 CV Axle Shaft - Front Right
| Brand | TrakMotive KA-8047 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 54 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24.3 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.4 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 39.7 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28-2T |
| Number Of Outboard Splines | 31 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.67 |
| Overall Compressed Length (mm) | 652 |
| Product line | CV Axle Shaft |
| Fits | Kia and Hyundai · 13 vehicles |
New CV axle shaft. A direct replacement for worn driveline components.
Neoprene boot material. Helps resist wear for dependable joint protection.
ABS tone ring included. Built with a toothed ring for ABS applications.
Cross-references ACI 87102, Cardone New 66-8159 and Cardone Reman 60-8159 for the same application. See all 21.
TrakMotive KA-8047 CV Axle Shaft
TrakMotive KA-8047 is a new front right CV axle shaft built for direct replacement service on select Kia and Hyundai applications. It is engineered with the correct spline counts, ABS tone ring, and axle nut specifications for a precise driveline repair.
Key Features
- New CV axle shaft for front right installation
- Fits 2014-2016 Kia Sportage, front right
- Fits 2011 Kia Sedona, front right
- Fits 2006-2010 Kia Sedona, front right
- Fits 2007-2010 Hyundai Entourage, front right
- 54-tooth toothed ABS ring with ABS tone ring included
- Neoprene boot material for driveline protection
- Female inboard joint and conventional outboard joint design
- 28-2T inboard splines and 31 outboard splines
- Overall compressed length: 25.67 in. (652 mm)
- Axle nut included with M24 x 1.5 thread, stake lock, and hex head
Product Details
This TrakMotive CV axle shaft is built for front right replacement on the Kia Sportage, Kia Sedona, and Hyundai Entourage applications listed above. The KA-8047 uses a female inboard connection, a conventional outboard shaft connection, and a neoprene boot to support consistent operation in the driveline. It also includes the ABS tone ring and axle nut details needed for the specified applications, making it a practical choice for restoring axle function after wear, vibration, or joint damage. This part cross-references Cardone New 66-8159 and ACI 87102 for the same application.
Common Repair Uses
- Clicking or popping during turns caused by worn CV joints
- Vibration under acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- ABS warning concerns related to the tone ring setup
- Driveline noise from excessive axle wear
Installation Notes
Verify front right fitment by year, make, model, and axle configuration before installation. Confirm spline count, axle nut thread size, and ABS ring style against the original part. Inspect the hub, seals, and surrounding suspension components during replacement to help prevent repeat failure. Use the correct torque procedure for the axle nut and follow vehicle service specifications.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The company is ISO 9001:1007 and TS 16949:2009 certified, reflecting controlled manufacturing and quality management practices.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2016 | Kia | Sportage | Front Right | CV Axle Shaft |
| 2015 | Kia | Sportage | Front Right | CV Axle Shaft |
| 2014 | Kia | Sportage | Front Right | CV Axle Shaft |
| 2011 | Kia | Sedona | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2010 | Hyundai | Entourage | Front Right | CV Axle Shaft |
| 2010 | Kia | Sedona | Front Right | CV Axle Shaft |
| 2009 | Hyundai | Entourage | Front Right | CV Axle Shaft |
| 2009 | Kia | Sedona | Front Right | CV Axle Shaft |
| 2008 | Hyundai | Entourage | Front Right | CV Axle Shaft |
| 2008 | Kia | Sedona | Front Right | CV Axle Shaft |
| 2007 | Hyundai | Entourage | Front Right | CV Axle Shaft |
| 2007 | Kia | Sedona | Front Right | CV Axle Shaft |
| 2006 | Kia | Sedona | Front Right | CV Axle Shaft |
