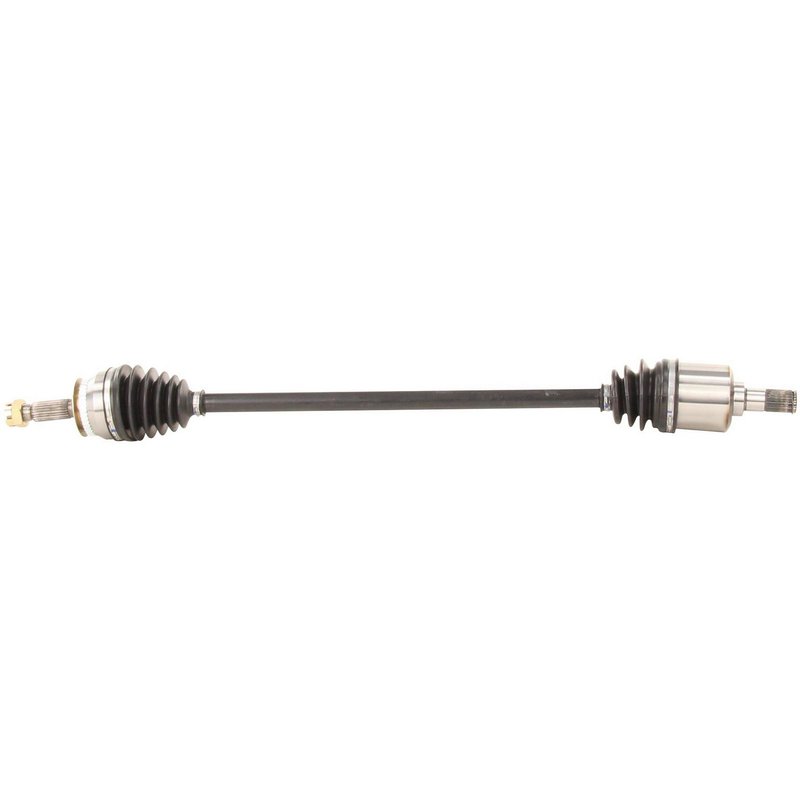

TrakMotive KA-8051 CV Axle Shaft - Front Right
| Brand | TrakMotive KA-8051 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 36.5 |
| Overall Compressed Length (mm) | 927 |
| Product line | CV Axle Shaft |
| Fits | Kia · 7 vehicles |
New CV axle shaft. Direct replacement for a worn driveline component.
Neoprene boot material. Helps resist wear while protecting the joint assembly.
ABS tone ring included. Built with a toothed ring and 44 teeth for ABS applications.
Cross-references Cardone New 66-3528, Cardone Reman 60-3528 and Dorman - Conduct-Tite 87504 for the same application. See all 18.
Front Right CV Axle Shaft for Kia Spectra
TrakMotive KA-8051 is a new CV axle shaft for the front right position on select Kia Spectra and Kia Spectra5 models. It is built with a 27-spline inboard joint, a conventional outboard joint, and a 36.5-inch compressed length for the listed applications.
Key Features
- Fits 2006-2009 Kia Spectra, front right
- Fits 2007-2009 Kia Spectra5, front right
- New CV axle shaft for driveline and axle service
- 27-spline inboard joint with male shaft connection
- 25-spline outboard connection with conventional joint design
- Neoprene boot material for the CV joint assembly
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and cotter pin locking type
- ABS tone ring included with 44-tooth toothed ring
- Overall compressed length: 36.5 in. (927 mm)
Product Details
TrakMotive KA-8051 is a CV axle shaft for front right replacement on 2006-2009 Kia Spectra and 2007-2009 Kia Spectra5 models. The axle is configured with a male inboard shaft connection, a conventional outboard shaft connection, and an ABS tone ring for applications that require wheel speed signal support. TrakMotive identifies this axle as a new part, and the brand notes ISO 9001:1007 and TS 16949:2009 certified manufacturing practices. This part cross-references Cardone New 66-3528 and Dorman - Conduct-Tite 87504 for the same application.
Common Issues This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Torn or deteriorated CV boot condition
- Excessive play in the front right driveline assembly
- ABS-related wheel speed signal concerns when the tone ring is required
Installation Notes and Tips
Verify the front right position, spline count, and axle length before installation. Confirm the axle nut thread size, hex size, and locking style match the vehicle specification. Inspect the hub, seals, and surrounding suspension components during service, and replace any worn hardware or damaged mating parts as needed. For Kia Spectra axle replacement or Kia Spectra5 front right CV axle service, confirm ABS and non-ABS application details against the vehicle build information.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The company also states that its manufacturing is ISO 9001:1007 and TS 16949:2009 certified.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2009 | Kia | Spectra | Automatic | Front Right | w/ 27 Spline Inboard Joint; CV Axle Shaft |
| 2009 | Kia | Spectra5 | Automatic | Front Right | w/ 27 Spline Inboard Joint; CV Axle Shaft |
| 2008 | Kia | Spectra | Automatic | Front Right | w/ 27 Spline Inboard Joint; CV Axle Shaft |
| 2008 | Kia | Spectra5 | Automatic | Front Right | w/ 27 Spline Inboard Joint; CV Axle Shaft |
| 2007 | Kia | Spectra | Automatic | Front Right | w/ 27 Spline Inboard Joint; CV Axle Shaft |
| 2007 | Kia | Spectra5 | Automatic | Front Right | w/ 27 Spline Inboard Joint; CV Axle Shaft |
| 2006 | Kia | Spectra | Automatic | Front Right | w/ 27 Spline Inboard Joint; CV Axle Shaft |
