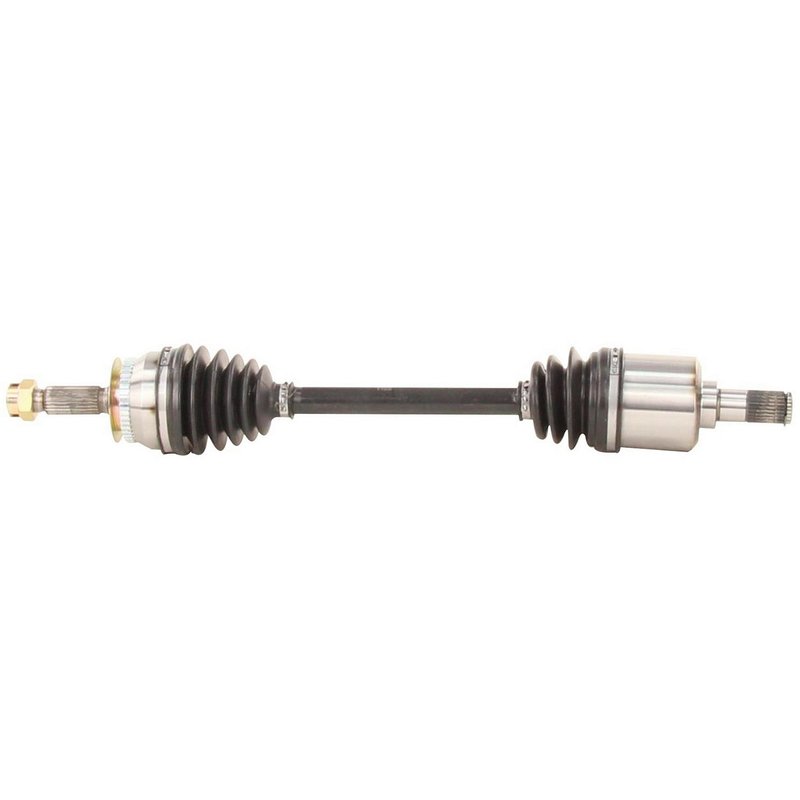

TrakMotive KA-8052 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft KA-8052

The TrakMotive CV Axle Shaft KA-8052 is engineered for reliable driveline performance in Kia Spectra and Spectra5 models. Designed to meet OEM specifications, this new CV axle shaft ensures consistent power transfer and vehicle stability.

• Compatible with Kia Spectra and Spectra5
• Includes ABS tone ring with 44 toothed abs ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 25.24 inches (641 mm)
• Male inboard joint and conventional outboard joint types
• Thread size M22*1.5 axle nut with 1 1/4 inch hex size

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for various vehicle applications. This line emphasizes quality materials such as neoprene boots and includes essential hardware like axle nuts with cotter pin locking to maintain secure installation. The KA-8052 model exemplifies this approach by combining robust construction with exact fitment for Kia Spectra and Spectra5 vehicles.

Technical Specifications and Features

This CV axle shaft features a 44-tooth ABS ring with a toothed design, which is included to maintain proper ABS sensor function. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint uses a male connection style with 27 splines, while the outboard joint is conventional with 25 splines, ensuring compatibility with the vehicle’s drivetrain. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, 6/7 inches (22 mm) in height, and 1 1/2 inches (37 mm) in length, featuring a cotter pin locking mechanism for secure fastening.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Kia Spectra and Spectra5
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boots
• Secures wheel hub connection with included axle nut and cotter pin locking

Installation Notes and Tips

Ensure compatibility by verifying the part number KA-8052 matches the vehicle’s specifications. Use proper torque settings for the M22*1.5 axle nut and secure it with the cotter pin to prevent loosening. Inspect the axle shaft splines and joints during installation for any signs of damage. The neoprene boot should be handled carefully to avoid tears. Professional installation is recommended to maintain driveline integrity and safety.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft KA-8052 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware for installation, such as the axle nut and ABS tone ring. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and performance in Kia Spectra and Spectra5 applications.
