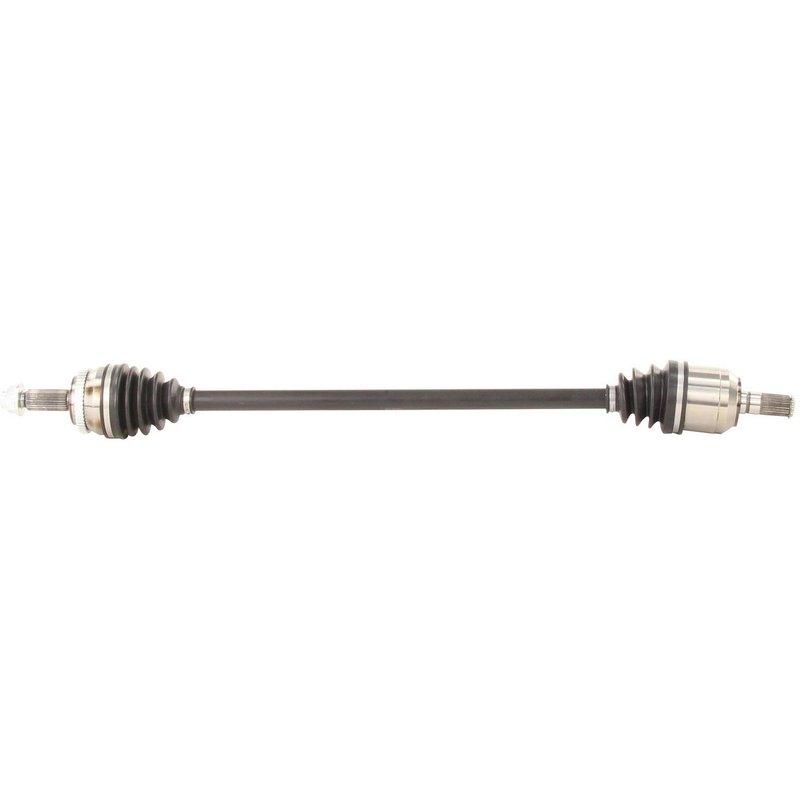

TrakMotive KA-8066 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft KA-8066 for Kia Soul

The TrakMotive CV Axle Shaft KA-8066 is engineered specifically for Kia Soul models, providing reliable driveline performance. Designed as a new replacement part, it ensures proper fit and function for your vehicle's front-wheel-drive system.

• Compatible with Kia Soul vehicles
• Includes a neoprene boot for durability
• Equipped with a 46-tooth ABS ring for accurate wheel speed sensing
• Comes with a hex head axle nut (M22*1.5 thread size) included
• Overall compressed length of 37.72 inches (958 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This CV Axle Shaft model KA-8066 features both inboard and outboard joints designed for durability and smooth power transfer. The inclusion of a toothed ABS tone ring supports vehicle stability control systems, while the neoprene boot material offers resistance to wear and environmental factors.

Technical Specifications and Features

This CV Axle Shaft includes a male-type inboard joint and a conventional outboard joint, each with 27 splines to ensure secure shaft connections. The axle nut is a stake locking type with a 1 1/4 inch (32 mm) hex size and a length of 1 1/2 inches (37 mm), providing a secure fit. The ABS ring has 46 teeth and is toothed, with the tone ring included to maintain proper ABS sensor function. The neoprene boot protects the joint from contaminants and extends service life.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Kia Soul
• Resolves issues with clicking or popping noises during turns
• Addresses vibration or shuddering caused by axle wear
• Restores proper ABS sensor operation with included tone ring
• Fixes grease leaks from torn or damaged CV boots

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft KA-8066, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain sensor accuracy. Inspect the neoprene boot for any damage during installation and replace if necessary. This part is designed for direct replacement on compatible Kia Soul models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft KA-8066 is a new, remanufactured-quality component built to meet or exceed OEM standards. It includes the axle nut and ABS tone ring for a complete replacement solution. While specific warranty details are not provided, TrakMotive parts typically undergo rigorous quality control to ensure durability and performance in driveline applications.
