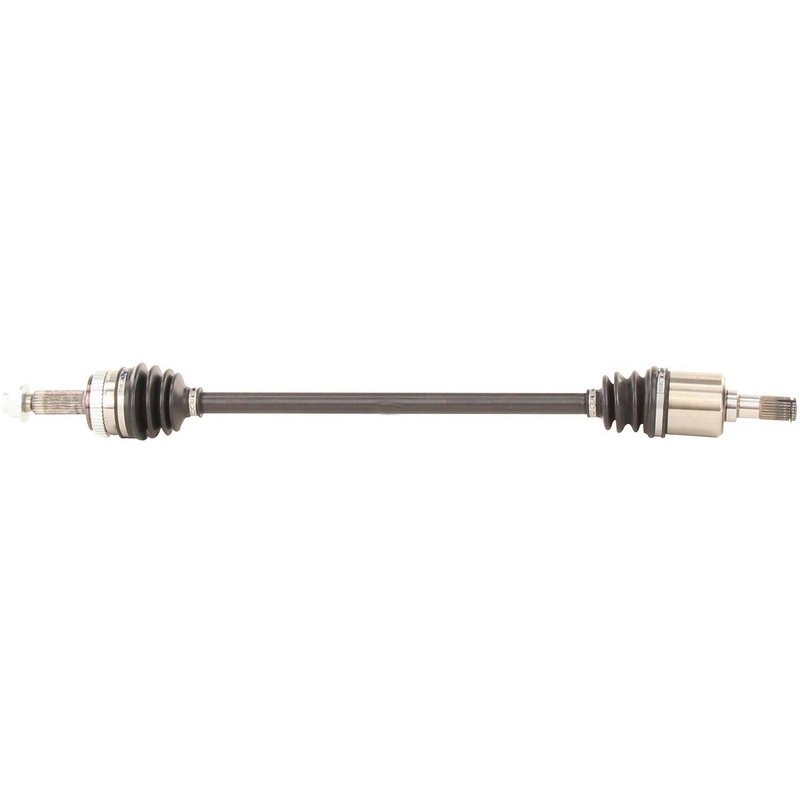

TrakMotive KA-8067 CV Axle Shaft - Rear Left
| Brand | TrakMotive KA-8067 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 32.87 |
| Overall Compressed Length (mm) | 835 |
| Product line | CV Axle Shaft |
| Fits | Kia · 3 vehicles |
OE-style replacement. New CV axle shaft built for straightforward installation.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. 48-tooth toothed ring supports ABS-equipped applications.
Cross-references TrakMotive KA-8067, 60-3718 and 219067 for the same application. See all 6.
TrakMotive KA-8067 Rear Left CV Axle Shaft
TrakMotive KA-8067 is a new CV axle shaft for the rear left position on select Kia Sportage models. It is built for 2011-2013 Kia Sportage applications and includes the axle nut and ABS tone ring details needed for the listed fitment.
Key Features
- Direct-fit CV axle shaft for rear left installation
- Fits 2011-2013 Kia Sportage, rear left
- New construction with neoprene boot material
- Male inboard shaft connection with conventional outboard joint type
- ABS ring with 48 teeth and toothed ring design
- Axle nut included with M22 x 1.5 thread size and 32 mm hex size
- Overall compressed length: 32.87 in. (835 mm)
- TrakMotive KA-8067 cross-references Monroe Shocks & Struts 172286 for the same application
Product Details
This TrakMotive CV axle shaft is engineered for rear left Kia Sportage driveline service where a replacement axle is needed for the listed 2011-2013 vehicles. The KA-8067 uses a 25-spline inboard connection and 27-spline outboard connection, with a conventional outboard joint and male inboard joint configuration. The included ABS tone ring and 48-tooth toothed ring support the specified ABS application, while the neoprene boot helps protect the joint assembly during operation. TrakMotive positions the CV Axle Shaft line as a new replacement solution backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.
Common Issues This Part Can Address
- Clicking or popping from a worn rear axle assembly
- Vibration during acceleration or steady-speed driving
- Boot damage that has allowed grease loss and joint wear
- ABS-related driveline service on the rear left side
- Excess play or noise from a failing CV joint
Installation Notes and Tips
Verify rear left fitment before ordering: Fits 2011-2013 Kia Sportage, rear left. Confirm axle nut thread size, spline count, and ABS ring configuration against the original part before installation. Inspect hub, seals, and surrounding suspension components for wear, and torque the included axle nut to the vehicle manufacturer’s specification during assembly. The KA-8067 is listed for ABS axles that fit non-ABS applications unless otherwise noted.
Quality Assurance
TrakMotive KA-8067 is a new CV axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. It is covered by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2013 | Kia | Sportage | AWD | Rear Left | CV Axle Shaft |
| 2012 | Kia | Sportage | AWD | Rear Left | CV Axle Shaft |
| 2011 | Kia | Sportage | AWD | Rear Left | CV Axle Shaft |
