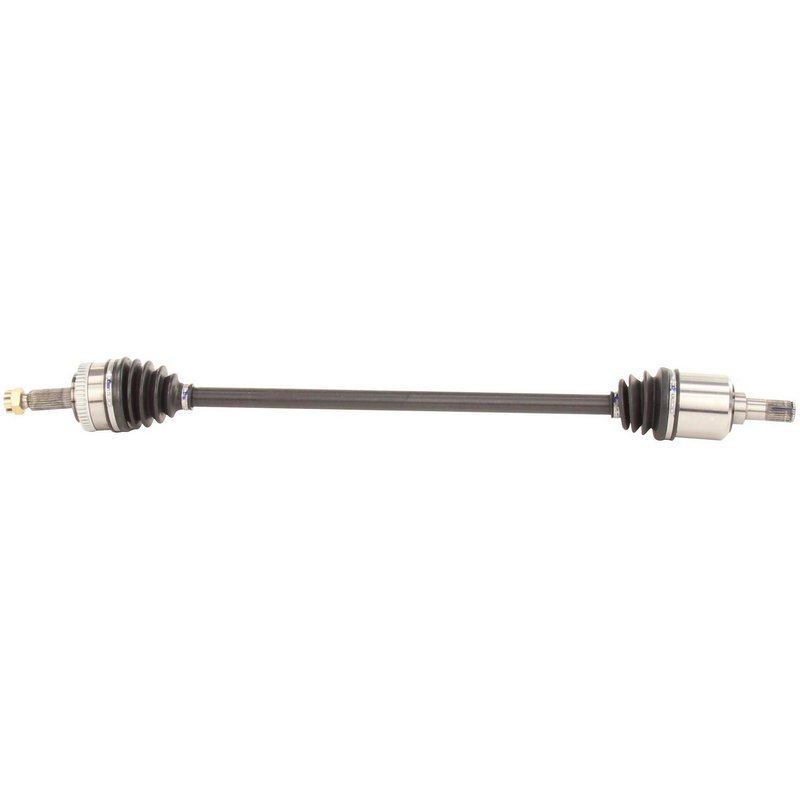

TrakMotive KA-8069 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft KA-8069 for Kia Sportage

The TrakMotive CV Axle Shaft KA-8069 is designed specifically for Kia Sportage models, providing reliable driveline performance. This new CV axle shaft includes essential components such as a neoprene boot and a toothed ABS tone ring to ensure smooth operation and durability.

• Compatible with Kia Sportage vehicles
• Includes a 48-tooth ABS ring with a toothed design
• Equipped with a neoprene boot for enhanced protection
• Axle nut with hex head, cotter pin locking, and M22*1.5 thread size included
• Overall compressed length of 38.98 inches (990 mm)
• Inboard and outboard joints with 27 splines each for secure fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for various vehicle applications. This line emphasizes quality materials and accurate specifications, such as the inclusion of ABS tone rings and durable neoprene boots, to maintain vehicle safety and performance. The KA-8069 model exemplifies these standards with its comprehensive design tailored for Kia Sportage models.

Technical Specifications and Features

This CV axle shaft features a 48-tooth ABS ring with a toothed design, which is included to work seamlessly with the vehicle's anti-lock braking system. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The axle nut included has a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inches) and a length of 37 mm (1 1/2 inches). It uses a cotter pin locking mechanism and an M22*1.5 thread size to ensure secure installation. Both the inboard and outboard joints have 27 splines, with the inboard joint featuring a male connection style and the outboard joint a conventional type. The overall compressed length of the axle shaft is 38.98 inches (990 mm), matching the OEM specifications for proper fitment.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Kia Sportage
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin locking

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft KA-8069 on a Kia Sportage, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Verify the ABS tone ring is properly aligned with the sensor to maintain ABS functionality. Inspect the neoprene boot for any damage during installation to avoid premature failure. Use appropriate tools for the 1 1/4 inch hex axle nut to ensure a secure fit.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive products undergo quality control to ensure durability and fitment accuracy. While specific warranty details are not provided here, TrakMotive typically offers coverage against manufacturing defects. Consult product documentation or supplier for warranty terms.
