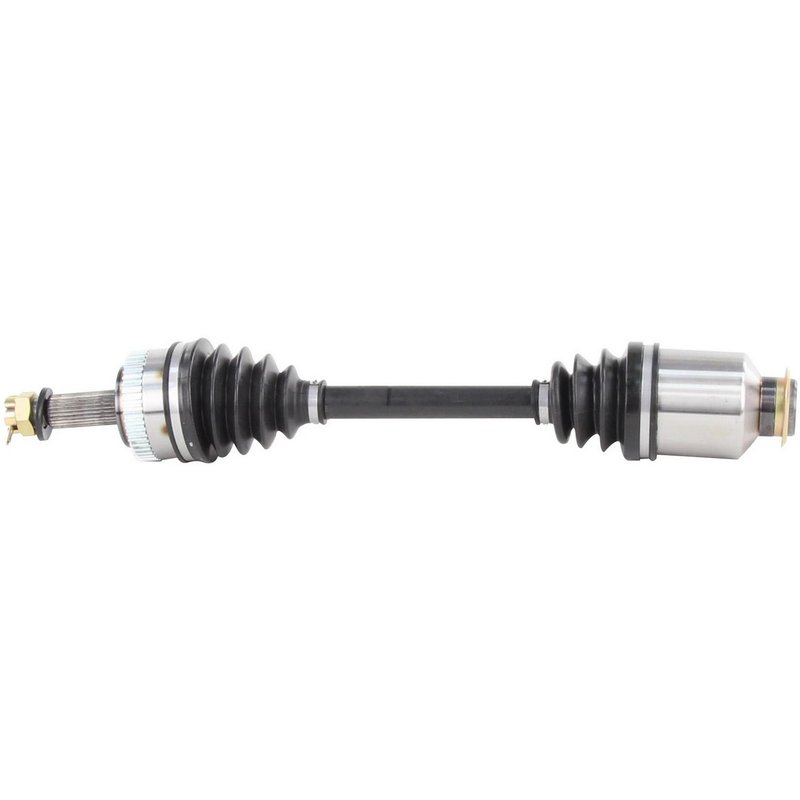

TrakMotive KA-8070 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft KA-8070

The TrakMotive CV Axle Shaft KA-8070 is engineered for reliable driveline performance in Hyundai and Kia vehicles. Designed specifically for models like the Hyundai Tucson and Kia Sportage, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Hyundai Tucson and Kia Sportage
• Includes ABS tone ring with 48 toothed ring count
• Neoprene boot material for enhanced protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 23.07 inches (586 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to meet OEM specifications. This line emphasizes durability and precise engineering, featuring components such as ABS tone rings and neoprene boots to maintain driveline integrity. The KA-8070 model is part of this line, offering a new, direct replacement CV axle shaft tailored for specific Hyundai and Kia applications.

Technical Specifications and Features

This CV axle shaft features a 48-tooth ABS ring with a toothed design, which is included to maintain accurate wheel speed sensor readings. The neoprene boot material provides resistance against environmental elements, extending the life of the joint. The inboard joint is female type with 26-2 splines, while the outboard joint is conventional with 27 splines, ensuring compatibility with the vehicle’s drivetrain. The axle nut included is a hex head type measuring 1 1/4 inches (32 mm) across flats, 6/7 inches (22 mm) in height, and 1 1/2 inches (37 mm) in length, secured with a cotter pin locking mechanism and threaded M22x1.5 for secure installation.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Hyundai Tucson and Kia Sportage
• Resolves issues related to torn or leaking CV boots
• Addresses ABS sensor errors caused by faulty or missing tone rings
• Eliminates axle vibration or clicking noises during turns
• Restores proper driveline function and vehicle handling

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify the part number KA-8070 matches the vehicle’s specifications. Use the included hex axle nut with cotter pin locking to secure the axle shaft properly. Inspect the ABS tone ring and boot for damage during installation. Proper torque specifications should be followed to avoid premature wear or failure.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft KA-8070 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and performance in Hyundai and Kia driveline applications.
