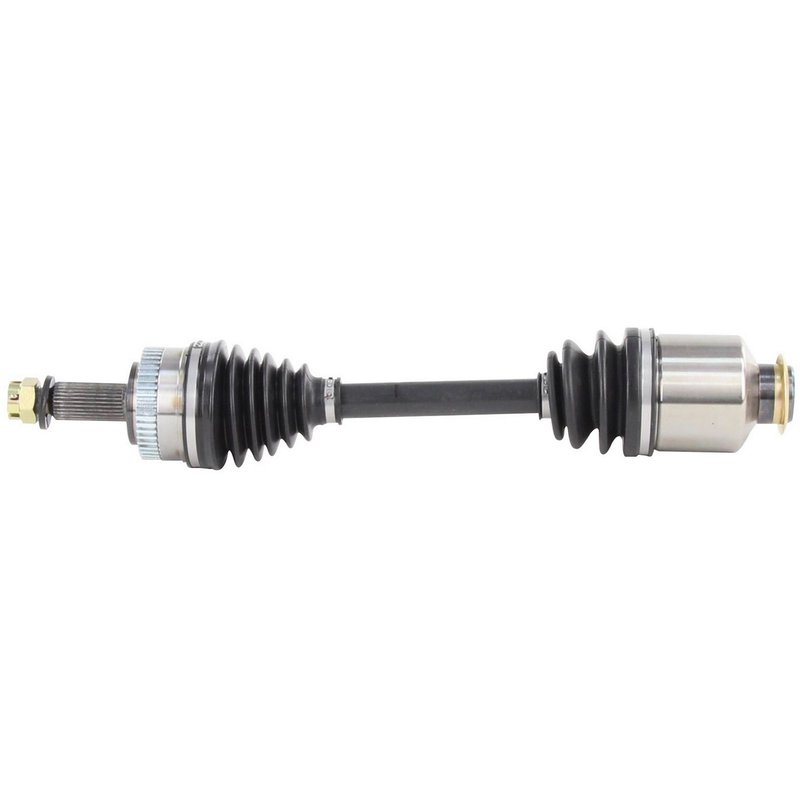

TrakMotive KA-8072 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft KA-8072 for Kia Sportage

The TrakMotive CV Axle Shaft KA-8072 is designed specifically for Kia Sportage models, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Kia Sportage vehicles
• Includes a neoprene boot for enhanced protection
• Equipped with a 48-tooth ABS ring and toothed ABS ring type
• Comes with a hex head axle nut with cotter pin locking
• Overall compressed length of 22.95 inches (583 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components engineered for precise fitment and reliable operation. This line includes shafts with integrated ABS tone rings and durable neoprene boots to protect joints from contaminants. The KA-8072 model exemplifies this approach by combining essential features such as a female inboard joint and conventional outboard joint types, ensuring smooth power transfer and long service life.

Technical Specifications and Features

The KA-8072 CV axle shaft includes a 48-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The included ABS tone ring supports anti-lock braking system functionality. The axle nut is a hex type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inches) and a length of 37 mm (1 1/2 inches). It features a cotter pin locking mechanism for secure installation. The neoprene boot material offers resistance to wear and environmental damage, protecting the inboard female joint and outboard conventional joint. The shaft has 28-2 inboard splines and 30 outboard splines, ensuring a precise connection to the drivetrain components.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Kia Sportage
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive KA-8072 CV axle shaft, ensure the ABS tone ring aligns correctly with the vehicle’s sensor. Use the included hex axle nut and cotter pin to secure the shaft firmly, following manufacturer torque specifications. Inspect the neoprene boot for any damage before installation to maintain joint protection. Proper lubrication of the joints is recommended to extend service life.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards for Kia Sportage vehicles. The inclusion of an ABS tone ring and durable materials reflects TrakMotive’s commitment to quality. Warranty details should be confirmed with the distributor or manufacturer, as they may vary.
