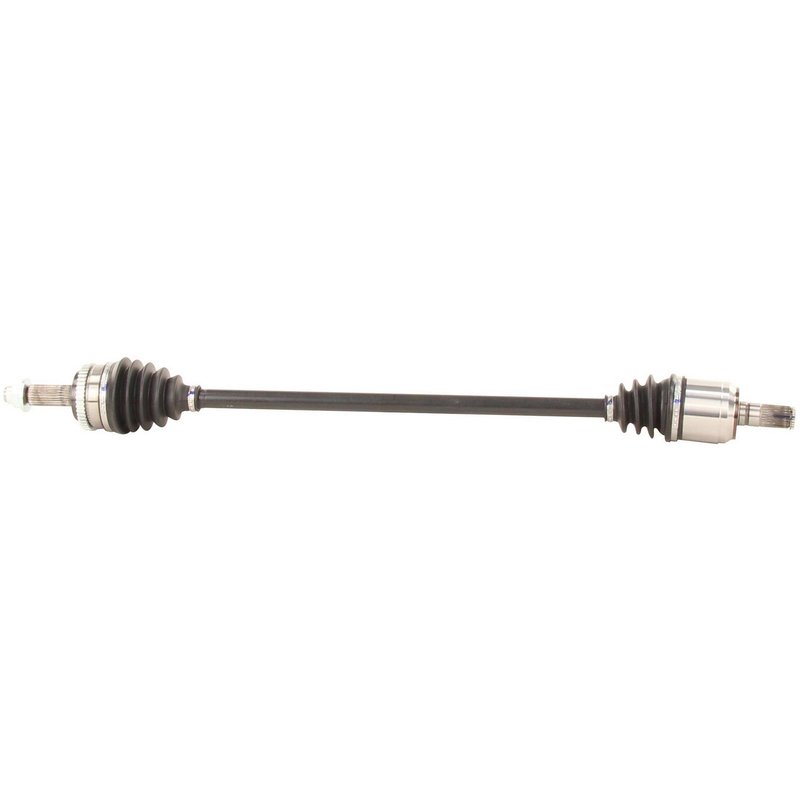

TrakMotive KA-8074 CV Axle Shaft - Front Right
| Brand | TrakMotive KA-8074 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 46 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 37.44 |
| Overall Compressed Length (mm) | 951 |
| Product line | CV Axle Shaft |
| Fits | Hyundai and Kia · 16 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot. Helps protect the joint from dirt and moisture.
ABS tone ring included. Ready for applications that use a toothed ABS ring.
Cross-references Cardone New 66-3737, Cardone New 66-3750 and Cardone New 66-3769 for the same application. See all 14.
CV Axle Shaft for Hyundai and Kia
TrakMotive KA-8074 is a new CV axle shaft for front right applications on select Hyundai Elantra, Elantra GT, Elantra Coupe, and Kia Soul models. It is built with a neoprene boot, 27 inboard splines, 27 outboard splines, and an included axle nut for a direct driveline service replacement.
Key Features
- Fits 2011-2017 Hyundai Elantra, front right
- Fits 2013-2017 Hyundai Elantra GT, front right
- Fits 2013-2014 Hyundai Elantra Coupe, front right
- Fits 2012-2013 Kia Soul, front right
- New CV axle shaft with conventional outboard joint and male inboard connection
- ABS tone ring included; 46-tooth toothed ABS ring
- Neoprene boot material for driveline protection
- Axle nut included, M22 x 1.5 thread, 32 mm hex size
Detailed Description
TrakMotive KA-8074 is a front right CV axle shaft engineered for Hyundai Elantra, Hyundai Elantra GT, Hyundai Elantra Coupe, and Kia Soul driveline service. The axle measures 37.44 inches compressed overall length and uses a 27-spline male inboard shaft connection with a conventional outboard joint. For ABS-equipped vehicles, the axle includes a toothed tone ring with 46 teeth. TrakMotive KA-8074 is also listed as an ABS axle that fits non-ABS applications unless otherwise noted, making it a practical replacement for a range of front-drive service needs.
This part cross-references Cardone New 66-3737 and 66-3750 for the same application.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn outer CV joint
- Vibration or shudder during acceleration caused by axle wear
- Torn boot conditions that allow grease loss and contamination
- ABS warning concerns related to a damaged tone ring or axle sensor interface
- Excessive driveline play from worn splines or joint components
Installation Notes and Tips
Verify front right fitment by year, model, and brake/ABS configuration before installation. Confirm axle nut thread size, hex size, and locking style against the original hardware. Inspect the hub, seals, and transmission side connection for wear before installing the new axle shaft. Proper torque procedures and final road testing help confirm smooth operation after replacement.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part and backs it with a limited lifetime warranty. The company states ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and quality management for driveline components.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2017 | Hyundai | Elantra | LE | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2017 | Hyundai | Elantra GT | — | — | Automatic | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2016 | Hyundai | Elantra | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2016 | Hyundai | Elantra GT | — | — | Automatic | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2015 | Hyundai | Elantra | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2015 | Hyundai | Elantra GT | — | — | Automatic | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2014 | Hyundai | Elantra | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2014 | Hyundai | Elantra Coupe | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2014 | Hyundai | Elantra GT | — | — | Automatic | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2013 | Hyundai | Elantra | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2013 | Hyundai | Elantra Coupe | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2013 | Hyundai | Elantra GT | — | — | Automatic | — | — | Front Right | CV Axle Shaft |
| 2013 | Kia | Soul | — | — | Automatic | 1.6L | L4 | Front Right | CV Axle Shaft |
| 2012 | Hyundai | Elantra | — | Sedan | Automatic | — | — | Front Right | CV Axle Shaft |
| 2012 | Kia | Soul | — | — | Automatic | 1.6L | L4 | Front Right | CV Axle Shaft |
| 2011 | Hyundai | Elantra | — | Sedan | Automatic | — | — | Front Right | CV Axle Shaft |
