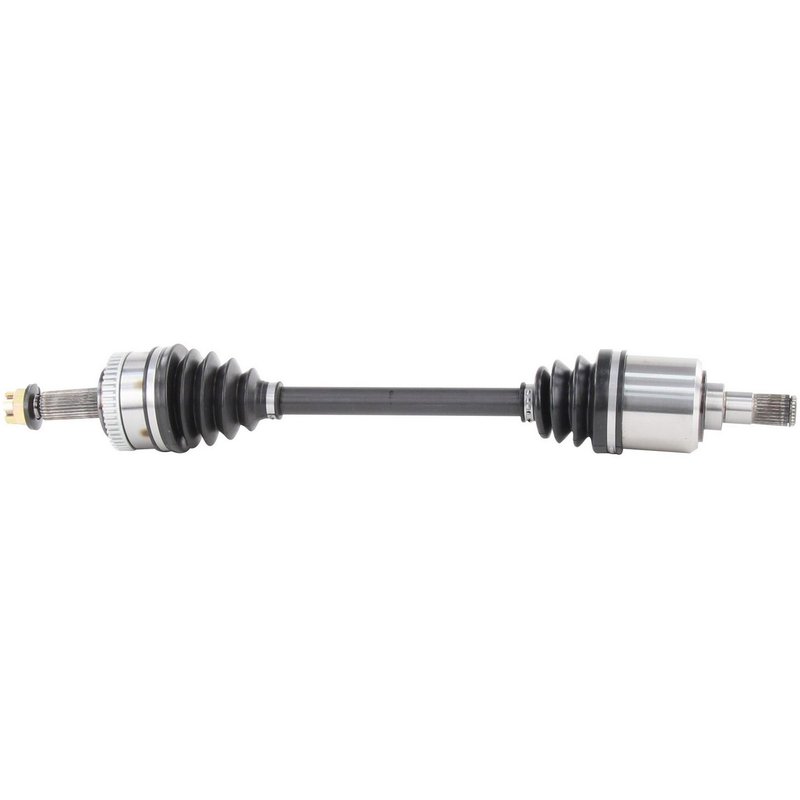

TrakMotive KA-8076 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft KA-8076

The TrakMotive CV Axle Shaft KA-8076 is engineered for reliable driveline performance in Hyundai and Kia vehicles. Designed specifically for models like the Hyundai Tucson and Kia Sportage, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Hyundai Tucson and Kia Sportage models
• Includes ABS tone ring with 48 toothed ring teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Axle nut with hex head, cotter pin locking, and M22*1.5 thread size included
• Overall compressed length of 26.81 inches (681 mm) for exact fit
• Inboard and outboard joints feature 27 splines for secure shaft connection

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes precise engineering, including features like ABS tone rings and durable neoprene boots, to maintain driveline integrity and vehicle safety. The KA-8076 model exemplifies these standards with its comprehensive component integration and fitment accuracy.

Technical Specifications and Features

This CV axle shaft includes a 48-tooth ABS ring with a toothed design, which is essential for accurate anti-lock braking system operation. The neoprene boot material provides resistance to wear and environmental damage, extending the life of the joint. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inches) and a length of 37 mm (1 1/2 inches). It features a cotter pin locking mechanism to ensure secure installation. Both inboard and outboard joints have 27 splines, with the inboard joint being male type and the outboard joint conventional, ensuring compatibility with the specified vehicle models. The overall compressed length of 26.81 inches (681 mm) matches factory specifications for proper driveline alignment.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Hyundai Tucson and Kia Sportage
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin locking

Installation Notes and Tips

Ensure the vehicle is safely lifted and supported before beginning installation. Verify the part number KA-8076 matches the original axle shaft specifications for your Hyundai Tucson or Kia Sportage. Use the included axle nut with cotter pin locking to secure the shaft properly. Inspect the ABS tone ring and sensor alignment during installation to maintain ABS functionality. Lubricate splines as recommended and avoid damaging the neoprene boot during handling.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft KA-8076 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring to ensure a complete replacement. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable vehicle operation.
