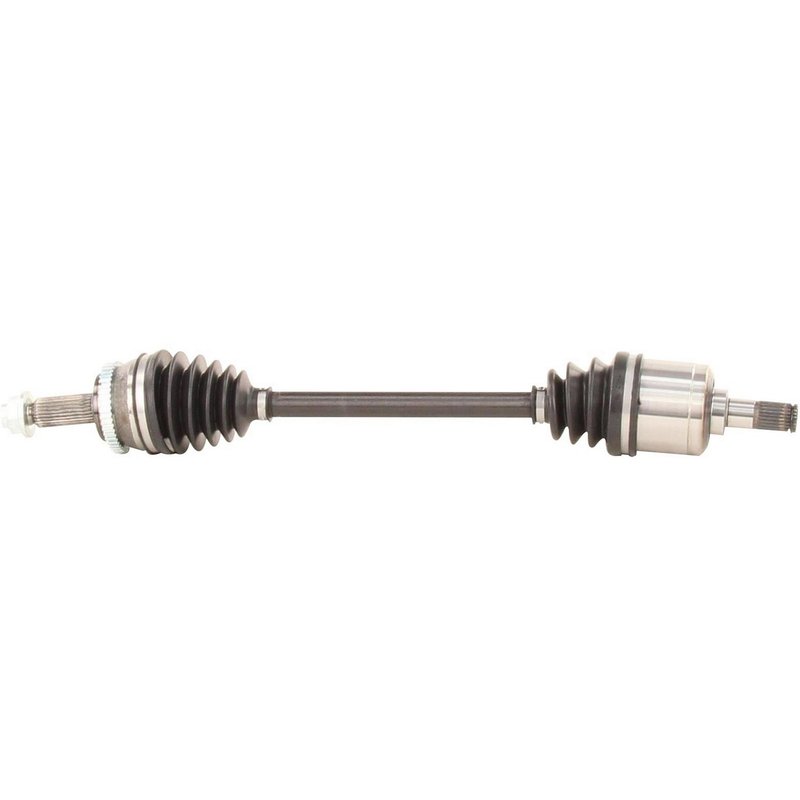

TrakMotive KA-8078 CV Axle Shaft - Front Left
| Brand | TrakMotive KA-8078 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 46 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.81 |
| Overall Compressed Length (mm) | 681 |
| Product line | CV Axle Shaft |
| Fits | Kia · 2 vehicles |
OE-style replacement. New CV axle shaft for straightforward driveline service.
ABS tone ring included. Toothed ring with 46 teeth for ABS-equipped applications.
Neoprene boot. Durable boot material helps protect the joint assembly.
Cross-references TrakMotive KA-8078, 219078 and 495012K620 for the same application. See all 5.
CV Axle Shaft for Kia Soul Front Left
TrakMotive KA-8078 is a new CV axle shaft for the front left position on 2012-2013 Kia Soul models. It is built with a neoprene boot, a toothed ABS ring with 46 teeth, and included axle nut hardware for the specified application.
Key Features
- Fits 2012-2013 Kia Soul, front left
- New CV axle shaft for driveline and axle service
- 46-tooth toothed ABS ring with tone ring included
- Neoprene boot material for CV joint protection
- Male inboard shaft connection with conventional outboard joint
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and stake locking type
- Overall compressed length: 26.81 in. (681 mm)
Detailed Description
TrakMotive KA-8078 is a CV axle shaft engineered for the front left side of the Kia Soul in 2012 and 2013. This axle uses a male inboard connection, a conventional outboard joint, and a 25-spline inboard / 27-spline outboard configuration to match the listed application. The ABS setup includes a toothed ring with 46 teeth and an included tone ring, supporting vehicles equipped for ABS-related wheel speed sensing.
TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles. KA-8078 follows that product line approach with application-specific dimensions and hardware details that matter during axle replacement on a Kia Soul front left installation. This part number, KA-8078, also cross-references 219078 for the same application.
Common Repair Uses
- Restores a worn or noisy front axle assembly
- Addresses clicking during turns caused by CV joint wear
- Replaces a damaged boot or contaminated axle assembly
- Corrects vibration or driveline shudder from axle wear
- Supports ABS-equipped front axle service on the listed Kia Soul models
Installation Notes and Tips
Verify spline count, compressed length, axle nut thread size, and ABS ring details before installation. The axle nut is included and uses a 32 mm hex size with M22 x 1.5 threads and stake locking. Confirm the front left position and compare the removed axle to the replacement part before final assembly.
Quality Assurance
TrakMotive lists this axle as a new part and backs it with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production standards for driveline components.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2013 | Kia | Soul | Manual | 1.6L | L4 | Front Left | CV Axle Shaft |
| 2012 | Kia | Soul | Manual | 1.6L | L4 | Front Left | CV Axle Shaft |
