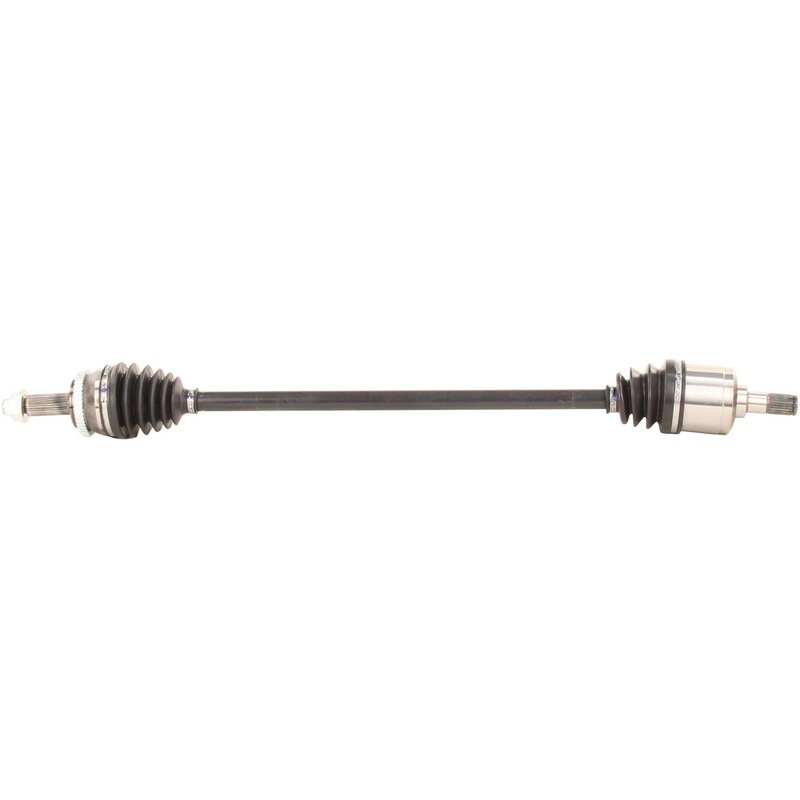

TrakMotive KA-8080 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft KA-8080 for Kia Soul

The TrakMotive CV Axle Shaft KA-8080 is engineered specifically for Kia Soul models, providing reliable driveline performance. Designed as a new replacement part, this axle shaft ensures proper fitment and durability for your vehicle's CV components.

• Compatible with Kia Soul vehicles
• Includes a neoprene boot for enhanced durability
• Equipped with a 46-tooth ABS ring and included tone ring
• Axle nut features a hex head, 1 1/2 inch length, and stake locking type
• Overall compressed length of 37.89 inches (962.5 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored to specific vehicle applications. This KA-8080 axle shaft is part of that line, offering a balance of quality materials and exact specifications such as male inboard joint type and conventional outboard joint type. The inclusion of a toothed ABS ring with 46 teeth and a neoprene boot highlights the line's attention to both performance and longevity.

Technical Specifications and Features

This CV axle shaft features a male inboard joint with 25 splines and a conventional outboard joint with 27 splines, ensuring secure shaft connections. The axle nut included is a hex type with a 32 mm (1 1/4 inch) hex size, 24 mm (1 inch) height, and M22x1.5 thread size, secured by a stake locking mechanism. The neoprene boot material provides resistance to wear and environmental factors, protecting the joint from contaminants. The overall compressed length of 37.89 inches (962.5 mm) matches OEM specifications for proper installation and function.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Kia Soul
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included axle nut

Installation Notes and Tips

When installing the TrakMotive KA-8080 CV Axle Shaft, verify compatibility with your Kia Soul model year. Use the included axle nut with the specified M22x1.5 thread size and stake locking type to secure the shaft properly. Ensure the ABS tone ring is correctly aligned for accurate sensor readings. It is recommended to inspect related suspension and driveline components during installation for optimal performance.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component manufactured to meet or exceed OEM standards. The use of high-quality materials such as neoprene for the boot and precision-machined splines supports long-term reliability. Warranty details are provided by the manufacturer and should be reviewed prior to installation to confirm coverage.
