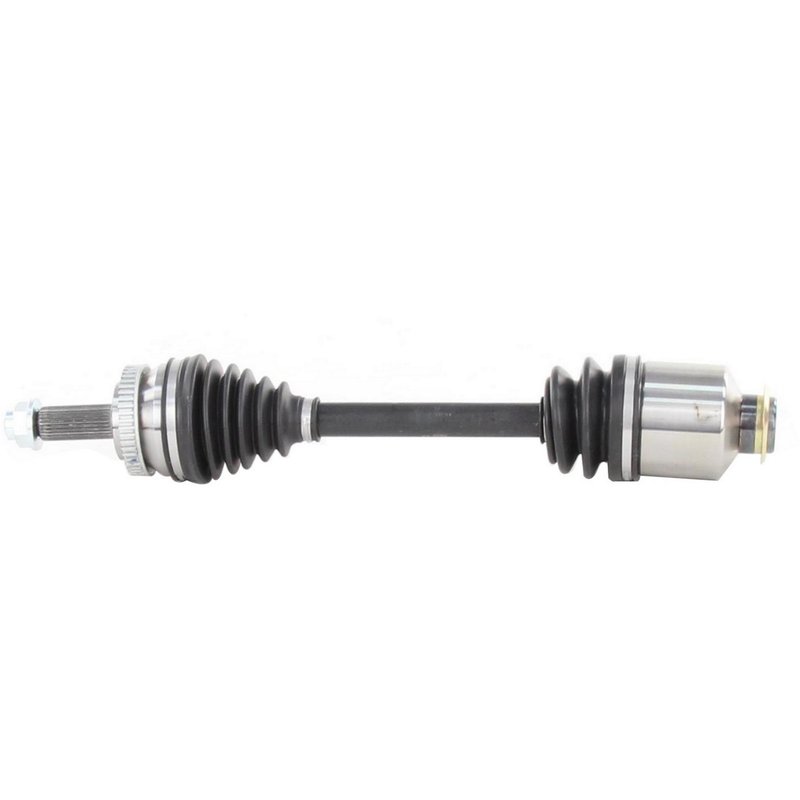

TrakMotive KA-8086 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft KA-8086 for Kia Rondo

The TrakMotive CV Axle Shaft KA-8086 is designed specifically for Kia Rondo models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Kia Rondo vehicles
• Includes a 48-tooth ABS ring with a toothed design
• Equipped with a neoprene boot for enhanced protection
• Comes with a hex head axle nut (M22*1.5 thread size) included
• Overall compressed length of 23.5 inches (597 mm)
• Female inboard joint and conventional outboard joint types
• Axle nut locking type: stake for secure installation

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. The KA-8086 model features a combination of female inboard shaft connection and spline-style outboard shaft connection, ensuring compatibility and smooth power transfer for Kia Rondo vehicles. This product line emphasizes quality materials such as neoprene boots and includes necessary hardware like axle nuts to facilitate installation.

Technical Specifications and Features

This CV axle shaft includes a 48-tooth ABS tone ring with a toothed design, which is essential for accurate wheel speed sensor readings. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The axle nut is a hex type with a 1 1/4 inch (32 mm) hex size, 1 inch (24 mm) height, and 1 1/2 inch (37 mm) length, featuring a stake locking mechanism to prevent loosening during operation. The inboard joint is female with 28-2 splines, while the outboard joint is conventional with 27 splines, matching the Kia Rondo's driveline requirements. The overall compressed length of 23.5 inches (597 mm) ensures proper fitment and alignment.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Kia Rondo
• Resolves clicking or popping noises during turns caused by joint wear
• Fixes vibration or shuddering issues related to axle imbalance
• Addresses torn or leaking CV boots to prevent grease loss and contamination
• Restores proper ABS sensor function with included ABS tone ring

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft KA-8086, ensure the axle nut is torqued to manufacturer specifications and properly staked to secure the locking mechanism. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Use appropriate tools to avoid damaging the neoprene boot during installation. It is recommended to inspect related suspension and driveline components for wear during replacement.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet OEM standards for fit and function. TrakMotive products undergo quality control to ensure durability and performance. While specific warranty details are not provided here, new parts typically come with manufacturer-backed warranties covering defects in materials and workmanship.
