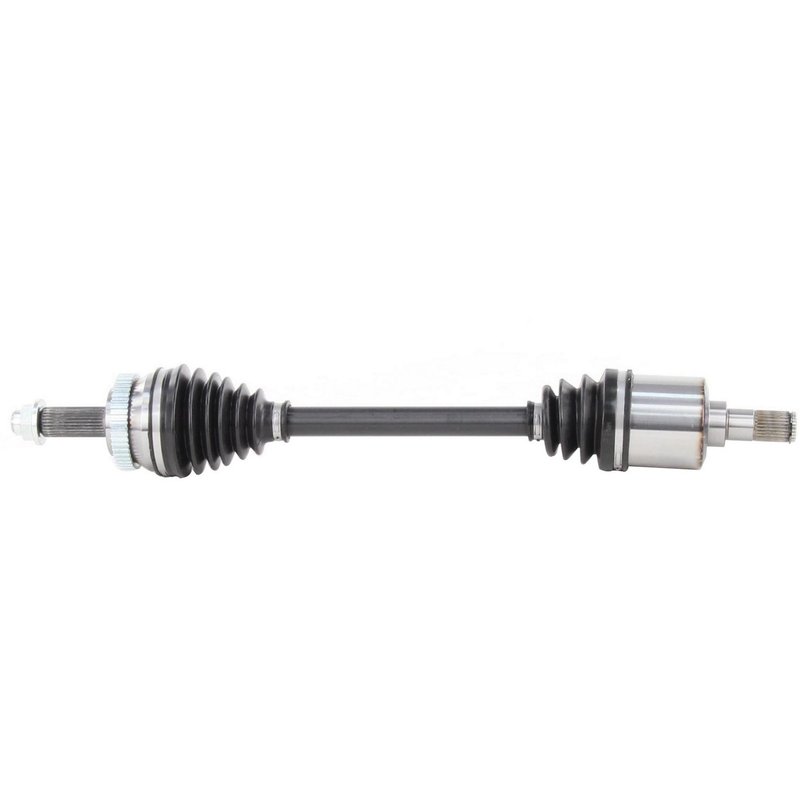

TrakMotive KA-8087 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft KA-8087 for Kia Rondo

The TrakMotive CV Axle Shaft KA-8087 is engineered specifically for Kia Rondo models, providing reliable driveline performance. Designed as a new replacement part, it ensures proper fit and function for your vehicle's front-wheel drive system.

• Compatible with Kia Rondo vehicles
• Includes a neoprene boot for durability
• Features a 48-tooth ABS ring with a toothed design
• Comes with a hex head axle nut (1 1/4 inch hex size)
• Overall compressed length of 26.89 inches (683 mm)
• Includes axle nut with stake locking type and M22x1.5 thread size
• Inboard and outboard joints with 27 splines each

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for specific vehicle applications. This line emphasizes quality materials such as neoprene boots and includes essential hardware like axle nuts to ensure a complete replacement solution. The KA-8087 model exemplifies this approach by combining robust joint designs and ABS tone ring integration for accurate wheel speed sensor operation.

Technical Specifications and Features

This CV axle shaft features a male inboard joint and a conventional outboard joint, both with 27 splines to match the Kia Rondo's drivetrain requirements. The included ABS tone ring has 48 teeth and a toothed design, which is critical for proper ABS sensor function. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 1 inch (24 mm) and a length of 1 1/2 inches (37 mm). It uses a stake locking mechanism and a thread size of M22x1.5, ensuring secure installation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Kia Rondo
• Restores proper ABS sensor signal with included tone ring
• Eliminates axle vibration or clicking noises during turns
• Addresses grease boot tears or leaks with durable neoprene material
• Resolves axle nut fastening issues with included locking nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft KA-8087 on a Kia Rondo, ensure the axle nut is torqued to manufacturer specifications to maintain the stake locking feature. Inspect the ABS tone ring alignment carefully to avoid sensor errors. The neoprene boot should be checked for proper seating to prevent contamination. Using the included axle nut simplifies the installation process and helps maintain driveline integrity.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet OEM standards for fit and function. TrakMotive products undergo quality control to ensure durability and performance. While specific warranty details are not provided here, new parts typically carry manufacturer-backed warranties against defects in materials and workmanship.
