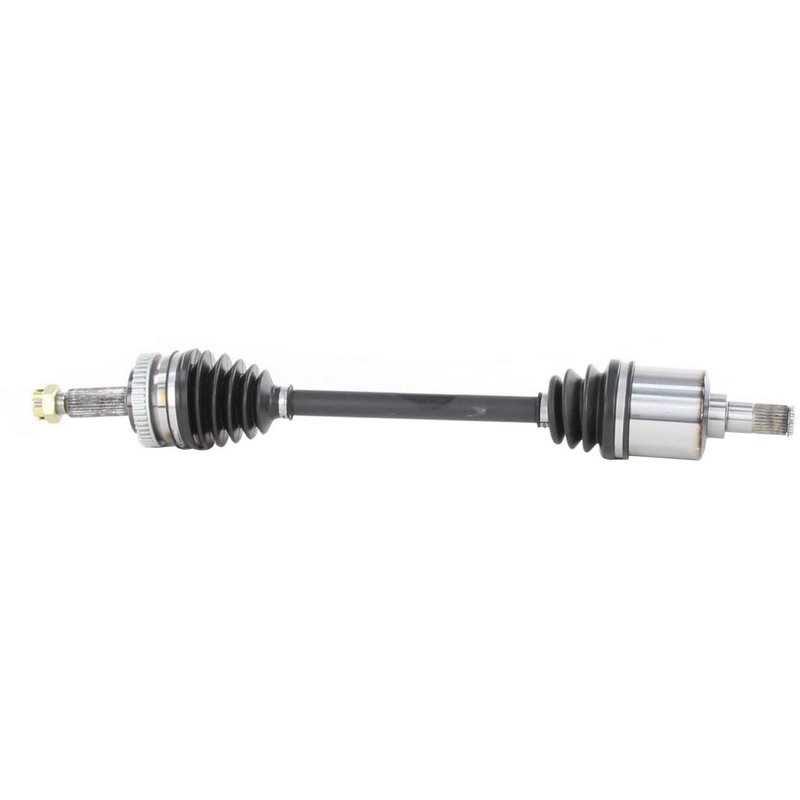

TrakMotive KA-8089 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft KA-8089 for Kia Rondo

The TrakMotive CV Axle Shaft KA-8089 is engineered specifically for Kia Rondo models, providing reliable driveline performance. This new CV axle shaft includes essential components designed to maintain proper vehicle handling and power transfer.

• Compatible with Kia Rondo vehicles
• Includes a neoprene boot for durability
• Equipped with a 48-tooth ABS ring and tone ring included
• Hex head axle nut with cotter pin locking mechanism
• Overall compressed length of 27.09 inches (688 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and function for driveline and axle components. This line emphasizes quality materials such as neoprene boots and includes necessary hardware like axle nuts and ABS tone rings to ensure compatibility and performance. The KA-8089 model is part of this line, designed to meet OEM specifications for Kia Rondo vehicles.

Technical Specifications and Features

This CV axle shaft features a 48-tooth toothed ABS ring with the tone ring included, which supports accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inches) and a length of 37 mm (1 1/2 inches). It uses an M22 x 1.5 thread size and secures with a cotter pin locking mechanism for added safety. The neoprene boot material offers resistance to wear and environmental factors. Both inboard and outboard joints have 27 splines, with the inboard joint being male type and the outboard joint conventional spline style. The overall compressed length of the shaft is 27.09 inches (688 mm), ensuring proper fitment within the Kia Rondo driveline assembly.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Kia Rondo
• Restoring proper ABS sensor function with included toothed ABS ring
• Eliminating axle vibration or clicking noises during turns
• Addressing boot damage or grease leakage with durable neoprene boot
• Ensuring secure axle nut fastening with cotter pin locking system

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft KA-8089 on a Kia Rondo, verify the axle nut torque specifications and ensure the cotter pin is properly installed to prevent loosening. Inspect the boot for any damage during installation and confirm the ABS tone ring is correctly positioned for sensor alignment. Use appropriate tools for the 1 1/4 inch hex axle nut and verify spline engagement on both inboard and outboard joints for a secure fit.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet or exceed OEM standards for Kia Rondo vehicles. TrakMotive products undergo quality control inspections to ensure durability and fitment accuracy. Warranty coverage details should be confirmed with the product documentation or manufacturer.
