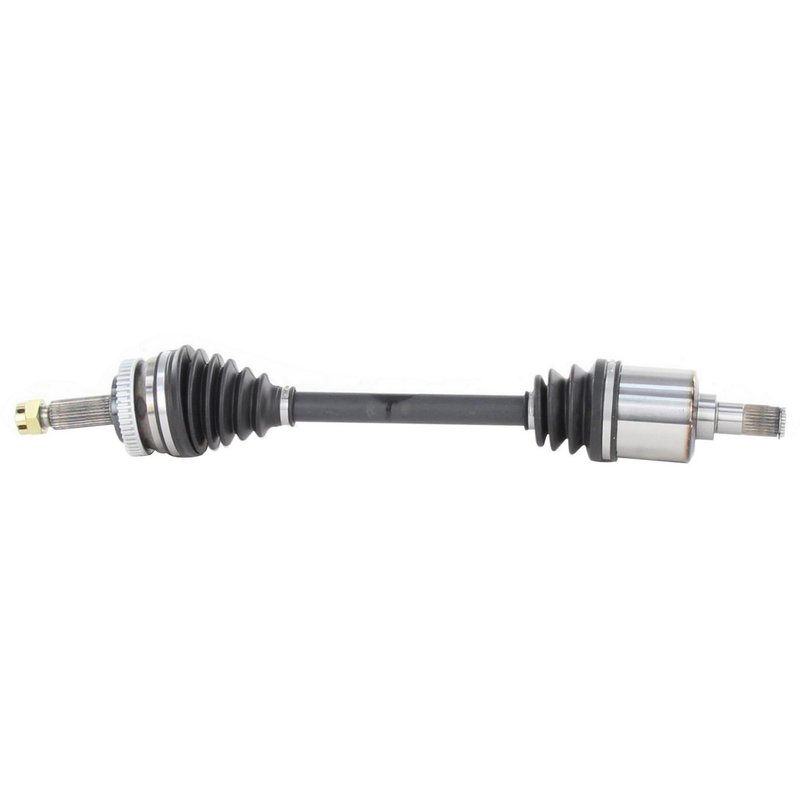

TrakMotive KA-8091 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft KA-8091 for Kia Rondo

The TrakMotive CV Axle Shaft KA-8091 is designed specifically for Kia Rondo models, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Kia Rondo vehicles
• Includes ABS tone ring with 48 toothed ring teeth
• Neoprene boot material for enhanced protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 26.73 inches (679 mm)
• Inboard and outboard joints with 27 splines each

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fitment and reliable driveline components. This line includes new CV axle shafts engineered to meet OEM specifications, featuring components such as ABS tone rings and neoprene boots to maintain vehicle safety and performance. The KA-8091 model is part of this line, ensuring it meets the quality and design standards expected for Kia Rondo applications.

Technical Specifications and Features

This CV axle shaft includes a 48-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inches) and a length of 37 mm (1 1/2 inches). It uses a cotter pin locking mechanism and has an M22x1.5 thread size, ensuring secure installation. Both the inboard and outboard joints have 27 splines, with the inboard joint featuring a male connection style and the outboard joint a conventional spline connection. The overall compressed length of the shaft is 26.73 inches (679 mm), matching the OEM dimensions for proper fitment.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Kia Rondo
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft KA-8091, ensure the axle nut is torqued to the manufacturer’s specifications and secured with the cotter pin to prevent loosening. Verify the ABS tone ring is properly aligned with the wheel speed sensor for accurate readings. Inspect the neoprene boot for any damage during installation to maintain joint protection. This part is designed for direct replacement on Kia Rondo models, but always confirm fitment with your vehicle’s year and trim.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft KA-8091 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and cotter pin for a complete installation. While specific warranty details are not provided, TrakMotive products typically undergo quality control to ensure durability and performance in driveline applications.
