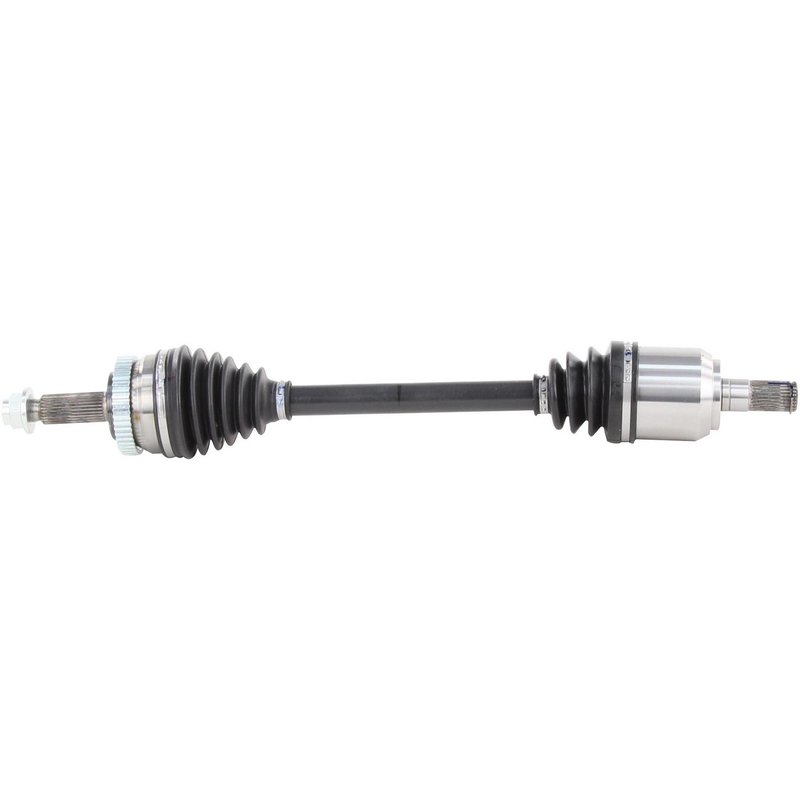

TrakMotive KA-8096 CV Axle Shaft - Front Left
OE Quality 60-Day Returns
TrakMotive
 CV Axle Shaft

TrakMotive KA-8096 CV Axle Shaft - Front Left

Brand TrakMotive KA-8096
Position Front Left
Abs Ring Tooth Count 48
Abs Ring Type Toothed
Abs Tone Ring Included Yes
Axle Nut Head Type Hex
Axle Nut Height (in) 1
Axle Nut Height (mm) 24
Axle Nut Hex Size (in) 1 1/4
Axle Nut Hex Size (mm) 32
Axle Nut Included Yes
Axle Nut Length (in) 1 1/2
Axle Nut Length (mm) 37
Axle Nut Locking Type Stake
Axle Nut Thread Size M22*1.5
Boot Material Neoprene
Inboard Joint Type Male
Inboard Shaft Connection Style Male
New Or Remanufactured New
Number Of Inboard Splines 27
Number Of Outboard Splines 27
Outboard Joint Type Conventional
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 26.5
Overall Compressed Length (mm) 673
Product line CV Axle Shaft
Fits Kia · 9 vehicles

New CV axle shaft. Direct replacement for a worn driveline component.

Neoprene boot. Helps protect the joint from dirt and moisture.

ABS tone ring included. Built with a toothed ring for ABS-equipped applications.

Cross-references TrakMotive KA-8096, 495003S300 and 40728025 for the same application. See all 7.

$144.52Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $144.52
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

TrakMotive CV Axle Shaft for Kia Optima

TrakMotive KA-8096 is a new CV axle shaft for the front left position on select Kia Optima applications. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint to support smooth driveline operation in the specified fitments.

This CV axle shaft is engineered for 2011-2015 Kia Optima applications, including 2014-2015 models with VIN 7 at the 8th digit and 2011-2013 U.S. Market vehicles built in South Korea only with VIN starting with K. The KA-8096 includes a 48-tooth toothed ABS ring with tone ring, a 27-spline inboard and outboard configuration, and an included axle nut with M22 x 1.5 thread, 32 mm hex size, and stake locking type.

Key Features

  • Front left CV axle shaft for select Kia Optima models
  • New replacement axle, not remanufactured
  • Neoprene boot material for driveline protection
  • 48-tooth toothed ABS ring with tone ring included
  • 27 inboard splines and 27 outboard splines
  • Included axle nut with hex head, stake lock, and M22 x 1.5 thread
  • Overall compressed length: 26.5 in. (673 mm)
  • TrakMotive part number KA-8096

Product Details

TrakMotive CV Axle Shaft KA-8096 is a direct-fit driveline replacement for the front left side of compatible Kia Optima vehicles. It is built to match the specified axle geometry, spline count, and ABS tone ring setup needed for proper wheel-speed signal transfer and drivetrain engagement. This part cross-references Hyundai/Kia OE-style numbers such as 495003S300 and HY10571 for the same application.

Common Problems This Part Can Address

  • Clicking or popping during turns from a worn CV joint
  • Vibration or shudder during acceleration
  • Grease leakage from a damaged axle boot
  • ABS warning light caused by a failed tone ring or sensor signal issue
  • Excessive driveline play from a worn front axle assembly

Installation Notes

Verify the vehicle’s VIN, model year, and build details before ordering. This axle is listed for 2014-2015 Kia Optima, front left, VIN 7 (8th digit), and 2011-2013 Kia Optima, front left, for U.S. Market vehicles built in South Korea only with VIN starting with K. Confirm spline count, axle nut thread size, and ABS ring configuration against the original part before installation.

Quality Assurance

TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for driveline components.

Related reading

This part fits 9 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelTransmissionLitersCylindersFuel TypePositionNotes
2015KiaOptima——2.4LL4GASFront LeftVIN 7 (8th Digit); CV Axle Shaft
2014KiaOptima——2.4LL4GASFront LeftVIN 7 (8th Digit); CV Axle Shaft
2013KiaOptimaLXAutomatic2.4LL4—Front LeftU.S. Market vehicles built in South Korea only (VIN starting with K); CV Axle Shaft
2013KiaOptimaEXAutomatic2.4LL4—Front LeftU.S. Market vehicles built in South Korea only (VIN starting with K); CV Axle Shaft
2013KiaOptimaEX LuxuryAutomatic2.4LL4—Front LeftU.S. Market vehicles built in South Korea only (VIN starting with K); CV Axle Shaft
2012KiaOptimaLXAutomatic2.4LL4—Front LeftU.S. Market vehicles built in South Korea only (VIN starting with K); CV Axle Shaft
2012KiaOptimaEXAutomatic2.4LL4—Front LeftU.S. Market vehicles built in South Korea only (VIN starting with K); CV Axle Shaft
2011KiaOptimaLXAutomatic2.4LL4—Front LeftU.S. Market vehicles built in South Korea only (VIN starting with K); CV Axle Shaft
2011KiaOptimaEXAutomatic2.4LL4—Front LeftU.S. Market vehicles built in South Korea only (VIN starting with K); CV Axle Shaft
Directly replaces or cross-references 7 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — KA-8096495003S3004072802540728042HY10571KA10533ENCV37078
