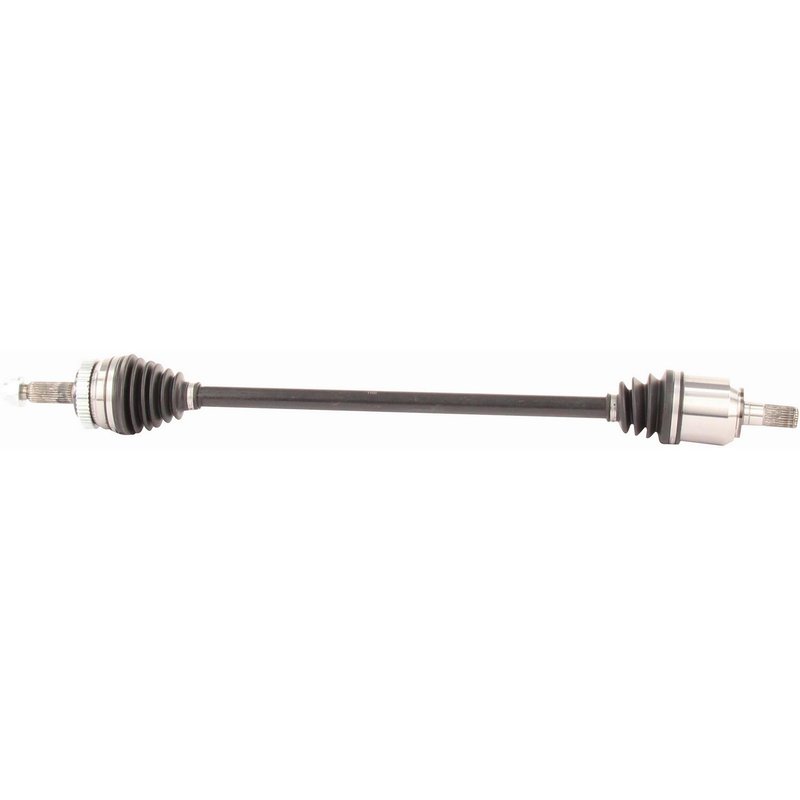

TrakMotive KA-8111 CV Axle Shaft - Front Right
| Brand | TrakMotive KA-8111 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 38.23 |
| Overall Compressed Length (mm) | 971 |
| Product line | CV Axle Shaft |
| Fits | Kia · 2 vehicles |
New CV axle shaft. Direct replacement for a straightforward driveline repair.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Built with a toothed ring for compatible ABS applications.
Cross-references TrakMotive KA-8111, 495014C370 and 40728041 for the same application. See all 5.
Front Right CV Axle Shaft for Kia Optima
TrakMotive KA-8111 is a new CV axle shaft for the front right position on select 2014-2015 Kia Optima models. Built for driveline service, this axle shaft includes the axle nut and ABS tone ring details needed for the listed application.
Key Features
- Fits 2014-2015 Kia Optima, front right
- TrakMotive CV Axle Shaft, part number KA-8111
- New axle shaft with 27 inboard splines and 27 outboard splines
- Neoprene boot material for driveline protection
- 48-tooth toothed ABS ring with tone ring included
- Axle nut included: M22 x 1.5 thread, 32 mm hex size, stake locking type
- Overall compressed length: 38.23 in (971 mm)
Product Details
TrakMotive KA-8111 is a CV axle shaft for the front right side of the 2014-2015 Kia Optima. It uses a male inboard shaft connection, a spline-style outboard shaft connection, and a conventional outboard joint type. The axle is built new, not remanufactured, and is specified with a neoprene boot for the listed driveline application. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
As part of TrakMotive’s CV Axle Shaft line, KA-8111 is backed by the brand’s manufacturing standards and is produced by an ISO 9001:1007 and TS 16949:2009 certified company. The manufacturer notes that ABS axles fit non-ABS applications unless otherwise noted, which helps clarify application coverage for the listed vehicle fitment.
Common Problems This Part Addresses
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage caused by a damaged axle boot
- ABS-related driveline service needs on the front right axle
- Excessive play or noise from a fatigued axle shaft assembly
Installation Notes
Confirm the vehicle is a 2014-2015 Kia Optima with front right fitment before ordering. Verify spline count, axle nut thread size, and compressed length against the original part to ensure proper match. Inspect related suspension and hub components during replacement, and follow factory torque procedures for the axle nut and fasteners.
Quality Assurance
TrakMotive manufactures this CV axle shaft under ISO 9001:1007 and TS 16949:2009 certification standards. KA-8111 is a new part and carries a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2015 | Kia | Optima | 2.4L | L4 | GAS | Front Right | CV Axle Shaft |
| 2014 | Kia | Optima | 2.4L | L4 | — | Front Right | CV Axle Shaft |
