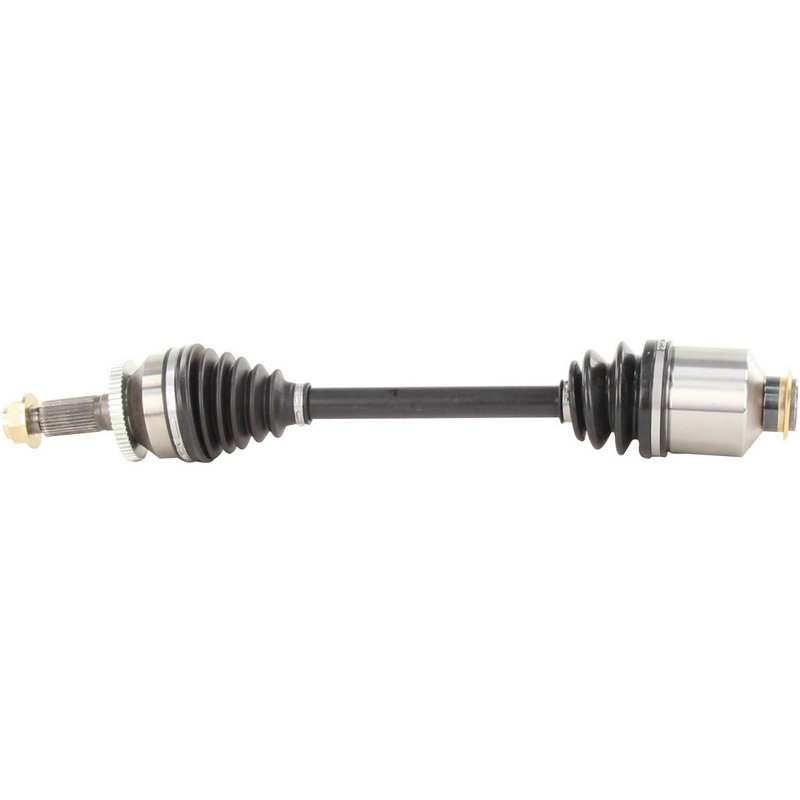

TrakMotive KA-8112 CV Axle Shaft - Front Right
| Brand | TrakMotive KA-8112 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 54 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24.3 |
| Axle Nut Hex Size (in) | 1 1/3 |
| Axle Nut Hex Size (mm) | 34.4 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 39.7 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28-2 |
| Number Of Outboard Splines | 31 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.67 |
| Overall Compressed Length (mm) | 652 |
| Product line | AAR CV Axle Shaft |
| Fits | Kia · 3 vehicles |
New CV axle shaft. A fresh replacement for dependable driveline service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Ready for applications that use a toothed ABS ring.
Cross-references GSP NCV75091, GSP NCV75533 and TrakMotive KA-8112 for the same application. See all 6.
Front Right CV Axle for Kia Sedona
The TrakMotive AAR CV Axle Shaft, part number KA-8112, is a new front right axle assembly for select Kia Sedona applications. It is built with a neoprene boot, a toothed ABS ring with 54 teeth, and an included axle nut for a direct replacement on the listed vehicles.
Key Features
- Fits 2011-2012 Kia Sedona, front right
- Fits 2014 Kia Sedona, front right
- TrakMotive AAR CV Axle Shaft, part number KA-8112
- New replacement axle shaft with conventional outboard joint
- Female inboard joint and female inboard shaft connection style
- Neoprene boot material for driveline protection
- ABS tone ring included with 54-tooth toothed ring
- Axle nut included, M24 x 1.5 thread, stake locking type
- Overall compressed length: 25.67 in. (652 mm)
Product Details
TrakMotive’s AAR CV Axle Shaft line is built for direct-fit driveline service on covered applications, with attention to OE-style dimensions and connection points. This KA-8112 axle is configured for the front right position on the Kia Sedona and uses a 31-spline outboard connection with a 28-2 inboard spline specification. The included ABS tone ring and toothed ring design support vehicles equipped with ABS-related wheel speed sensing requirements where specified.
This part cross-references Kia OE numbers 495004D700 and 40728035 for the same application.
Common Repair Applications
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration from a damaged axle shaft
- Torn or deteriorated CV boot material
- ABS tone ring wear or sensor signal issues on the front right side
- Excessive driveline play from a failing axle assembly
Installation Notes and Tips
Verify front right fitment by year and model before installation. Confirm axle nut thread size, spline count, and overall compressed length against the removed part to ensure proper match. Inspect the hub, seals, and surrounding suspension components during service, and torque fasteners to the vehicle manufacturer’s specifications.
Quality Assurance
TrakMotive identifies this AAR CV Axle Shaft as a new part and backs it with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification for its quality management system.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Kia | Sedona | Front Right | Updated Design; AAR CV Axle Shaft |
| 2012 | Kia | Sedona | Front Right | Updated Design; AAR CV Axle Shaft |
| 2011 | Kia | Sedona | Front Right | Updated Design; AAR CV Axle Shaft |
