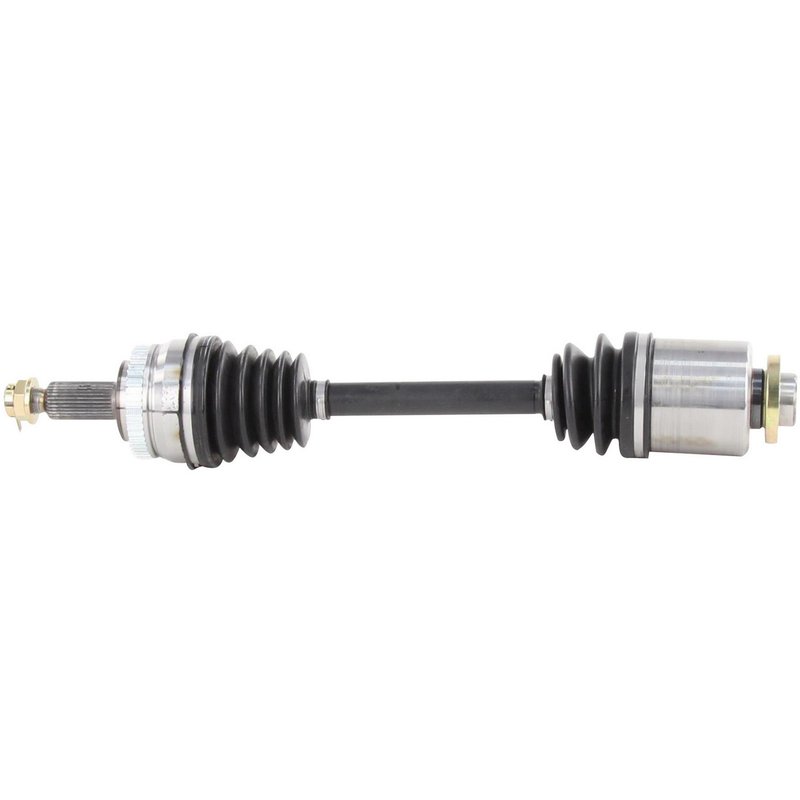

TrakMotive KA-8114 CV Axle Shaft - Front Right
| Brand | TrakMotive KA-8114 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 47 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.43 |
| Overall Compressed Length (mm) | 595 |
| Product line | AAR CV Axle Shaft |
| Fits | Kia · 3 vehicles |
New CV axle shaft. Built as a fresh replacement for dependable driveline service.
Neoprene boot. Helps protect the joint from dirt and moisture.
ABS tone ring included. Ready for ABS-equipped applications unless otherwise noted.
Cross-references TrakMotive KA-8114, 495003F030 and NCV75002 for the same application. See all 3.
TrakMotive AAR CV Axle Shaft for Kia Amanti
The TrakMotive KA-8114 is a new front right CV axle shaft for 2007-2009 Kia Amanti applications. Built for the updated design used on this platform, it provides the correct spline counts, ABS tone ring setup, and compressed length for a direct driveline service replacement.
The AAR CV Axle Shaft line from TrakMotive focuses on application-specific fitment for import driveline repairs. For this Kia Amanti front right axle, the design includes a neoprene boot, a female inboard connection, and a conventional outboard joint to match the listed vehicle configuration.
Key Features
- Fits 2007-2009 Kia Amanti, front right
- TrakMotive part number KA-8114
- New CV axle shaft for driveline replacement
- 47-tooth toothed ABS ring with ABS tone ring included
- 28 inboard splines and 30 outboard splines
- Neoprene boot material for the axle assembly
- Overall compressed length: 23.43 in. (595 mm)
- Female inboard joint and female inboard shaft connection style
- Conventional outboard joint with spline shaft connection
Detailed Description
TrakMotive KA-8114 is a front right CV axle shaft for the 2007, 2008, and 2009 Kia Amanti. It is specified for the updated design on this application and is built as a new replacement axle with the correct 28-spline inboard and 30-spline outboard configuration. The included toothed ABS ring uses 47 teeth, and the ABS tone ring is included for vehicles that require that setup. This part cross-references Kia OE number 495003F030 and NCV75002 for the same application.
Use KA-8114 when servicing a worn or damaged front right axle on a Kia Amanti and you need the correct length, joint style, and ABS-related components to match the vehicle’s original driveline layout.
What It Helps Repair
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a compromised boot
- ABS warning concerns related to a damaged tone ring setup
- Driveline noise caused by spline or joint wear
Installation Notes and Tips
Verify the vehicle’s front right application, updated design requirement, spline counts, and compressed length before installation. Confirm whether the vehicle uses an ABS axle configuration, since ABS axles fit non-ABS applications unless otherwise noted. The axle nut is not included, so reuse or source the correct nut separately as needed. Inspect related seals, hub components, and suspension parts during service to help ensure a proper repair.
Quality Assurance
TrakMotive manufactures this AAR CV Axle Shaft as a new part and lists ISO 9001:1007 and TS 16949:2009 certification for the company. The KA-8114 also carries a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Kia | Amanti | Front Right | Updated Design; AAR CV Axle Shaft |
| 2008 | Kia | Amanti | Front Right | Updated Design; AAR CV Axle Shaft |
| 2007 | Kia | Amanti | Front Right | Updated Design; AAR CV Axle Shaft |
