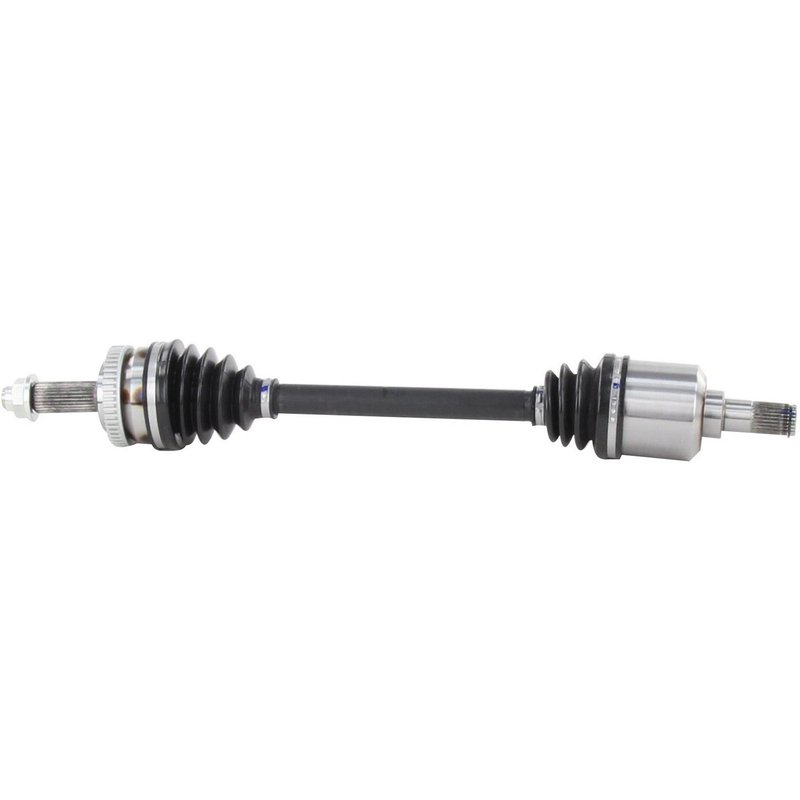

TrakMotive KA-8117 CV Axle Shaft - Front Left

Overview of TrakMotive AAR CV Axle Shaft KA-8117

The TrakMotive AAR CV Axle Shaft KA-8117 is designed specifically for Kia Magentis and Optima models, providing reliable driveline performance. This new CV axle shaft features precise engineering to ensure compatibility and durability in your vehicle's driveline system.

• Compatible with Kia Magentis and Optima models
• Includes ABS tone ring with 48 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut included with stake locking type
• Overall compressed length of 26.44 inches (671.5 mm)
• Inboard and outboard spline connection styles with 27 splines each

TrakMotive AAR CV Axle Shaft Product Line Details

The AAR CV Axle Shaft product line by TrakMotive focuses on delivering new, high-quality CV axle shafts engineered for precise fitment and reliable driveline function. This line emphasizes components that include ABS tone rings and durable neoprene boots, ensuring compatibility with modern vehicle ABS systems and protection against environmental wear. The KA-8117 part is a part of this line, offering a balance of performance and fitment for Kia vehicles.

Technical Specifications and Features

The KA-8117 CV axle shaft features a 48-tooth ABS ring with a toothed design, which is included to maintain proper ABS sensor function. The axle nut is a hex head type, measuring 0.94 inches (24 mm) in height and 1.26 inches (32 mm) across the hex, with a length of 1.45 inches (36.95 mm). It uses a stake locking mechanism and has an M22x1.5 thread size. The neoprene boot material provides resistance to wear and environmental damage, extending the life of the joint. Both the inboard and outboard joints use spline connection styles with 27 splines each, ensuring secure and precise fitment. The overall compressed length of the axle shaft is 26.44 inches (671.5 mm), matching OEM specifications for Kia Magentis and Optima models.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Kia Magentis and Optima
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boots
• Ensures secure wheel attachment with included hex axle nut and stake locking

Installation Notes and Tips

• Verify vehicle compatibility with Kia Magentis or Optima before installation
• Use proper torque specifications for the M22x1.5 axle nut with stake locking
• Inspect ABS sensor and wiring during installation to ensure proper function
• Check spline engagement on both inboard and outboard joints for secure fit
• Replace any damaged or worn components to maintain driveline integrity

Quality Assurance and Warranty

The TrakMotive AAR CV Axle Shaft KA-8117 is a new, remanufactured-quality part designed to meet or exceed OEM standards. It includes an ABS tone ring and a neoprene boot for durability and proper ABS system operation. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliable performance in Kia Magentis and Optima vehicles.
