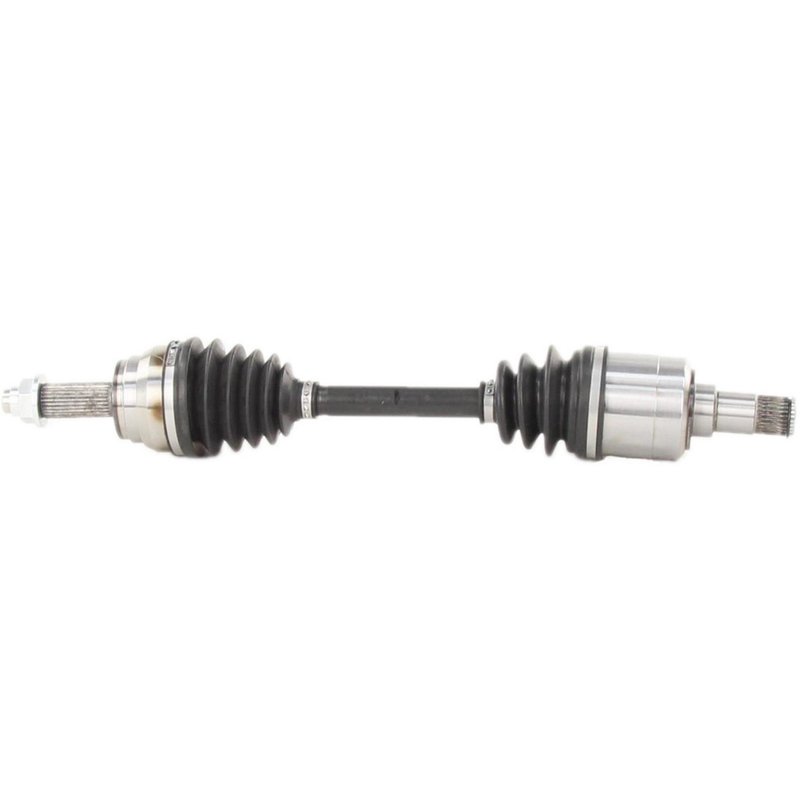

TrakMotive KA-8127 CV Axle Shaft - Front Left
| Brand | TrakMotive KA-8127 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.94 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.07 |
| Overall Compressed Length (mm) | 586 |
| Product line | AAR CV Axle Shaft |
| Fits | Kia · 4 vehicles |
New CV axle shaft. Built as a fresh replacement for dependable driveline service.
Neoprene boot. Helps protect the joint from wear and contamination.
Includes axle nut. Ready for a more complete installation.
Cross-references TrakMotive KA-8127, 49500G5000 and NCV75082 for the same application. See all 3.
TrakMotive KA-8127 Front Left CV Axle Shaft
The TrakMotive KA-8127 is a new front left CV axle shaft for select Kia Niro applications. It is built with a neoprene boot, spline-style shaft connections, and a conventional outboard joint to support smooth driveline operation in the listed vehicle applications.
Key Features
- New CV axle shaft for front left placement
- Neoprene boot material for driveline protection
- Male inboard joint with spline connection
- Conventional outboard joint with spline connection
- Includes axle nut with M22 x 1.5 thread size
- Axle nut uses a 32 mm hex size and stake locking type
- Overall compressed length: 23.07 in. (586 mm)
- ABS tone ring not included
Product Details
TrakMotive AAR CV Axle Shaft KA-8127 is engineered for 2017-2020 Kia Niro front left applications, including the 2017 updated design and the 2020 OE AAR design. This Kia Niro CV axle shaft uses 28 inboard splines and 27 outboard splines, along with a male inboard joint and conventional outboard joint for direct-fit driveline service in the specified positions. TrakMotive KA-8127 cross-references Monroe Shocks & Struts 172286 and 182286 for the same application.
The AAR CV axle shaft product line is positioned for OE-style replacement needs where the original axle architecture matters. For buyers searching for a front left CV axle shaft for Kia Niro, or a TrakMotive KA-8127 replacement axle for 2017-2020 Kia Niro, this part matches the listed fitment and connection details.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Torn or deteriorated axle boot conditions
- Excessive driveline play from damaged splines or joint wear
- Loss of smooth power transfer at the front left wheel position
Installation Notes and Tips
Verify the vehicle’s year, model, and front left position before installation. Confirm axle nut thread size, hex size, and locking style against the original hardware and service procedure. Because ABS tone ring is not included, compare the original axle configuration before ordering. Always inspect seals, hub components, and surrounding suspension parts during axle replacement.
Quality Assurance
This TrakMotive CV axle shaft is new and backed by a limited lifetime warranty. TrakMotive states that its manufacturing is supported by ISO 9001:1007 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Kia | Niro | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | Kia | Niro | Front Left | AAR CV Axle Shaft |
| 2018 | Kia | Niro | Front Left | AAR CV Axle Shaft |
| 2017 | Kia | Niro | Front Left | Updated Design; AAR CV Axle Shaft |
