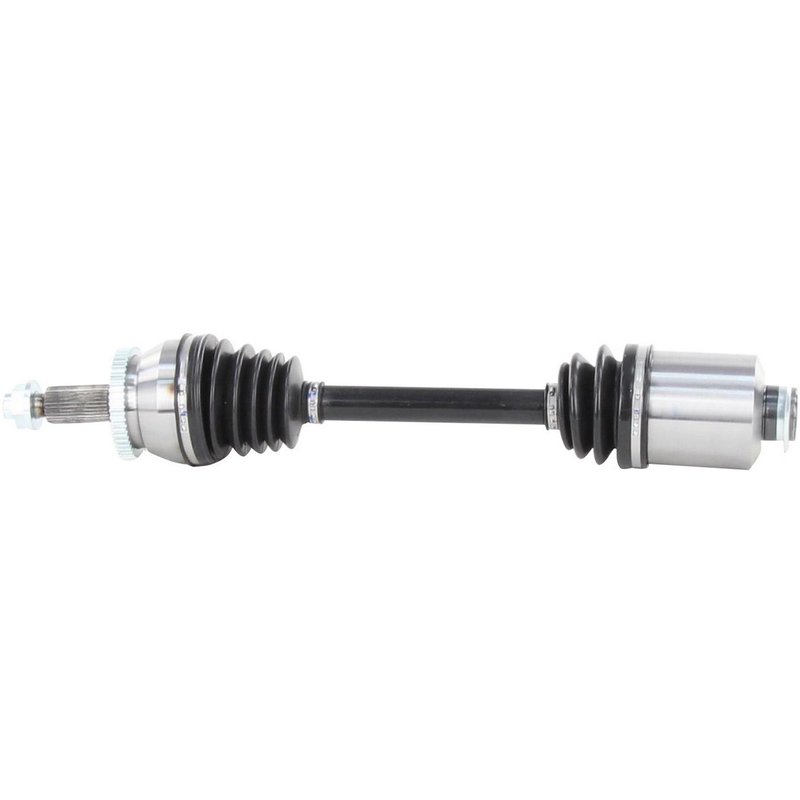

TrakMotive KA-8133 CV Axle Shaft - Front Right
| Brand | TrakMotive KA-8133 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 52 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.94 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.02 |
| Overall Compressed Length (mm) | 610 |
| Product line | AAR CV Axle Shaft |
| Fits | Hyundai and Kia · 16 vehicles |
New CV axle shaft. Fresh replacement part for restoring driveline function.
Neoprene boot material. Helps protect the joint from wear and contamination.
ABS tone ring included. Built with the sensing hardware needed for compatible applications.
Cross-references TrakMotive KA-8133, 49501C5450 and NCV75075 for the same application. See all 3.
Front Right CV Axle Shaft for Hyundai and Kia
The TrakMotive AAR CV Axle Shaft KA-8133 is a new front right replacement axle for select Hyundai Santa Fe, Santa Fe Sport, Santa Fe XL, and Kia Sorento applications. It is built with a neoprene boot, 26 inboard splines, 26 outboard splines, and an included axle nut for a direct driveline service replacement.
Key Features
- Brand: TrakMotive AAR CV Axle Shaft
- Part number: KA-8133
- New CV axle shaft for front right position
- Neoprene boot material
- Female inboard joint with spline connection
- Conventional outboard joint with spline connection
- 26 inboard splines and 26 outboard splines
- ABS tone ring included with 52-tooth toothed ring
- Axle nut included: M22 x 1.5, 32 mm hex, stake type
- Overall compressed length: 24.02 in. (610 mm)
Product Details
TrakMotive positions the AAR CV Axle Shaft line as a direct replacement driveline solution for service work where OE-style fit and function matter. KA-8133 is engineered for front right installation on 2015-2018 Kia Sorento, 2016-2018 Hyundai Santa Fe, 2016-2018 Hyundai Santa Fe Sport, and 2017-2019 Hyundai Santa Fe XL. This part number also cross-references 49501C5450 and NCV75075 for the same application. The axle is manufactured by an ISO 9001:1007 and TS 16949:2009 certified company and carries a limited lifetime warranty.
What It Helps Fix
- Clicking or popping during turns caused by worn CV joints
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- ABS warning concerns related to a failed tone ring or sensor signal issue
- Driveline noise from spline wear or joint wear at the front right corner
Installation Notes
Fits 2015-2018 Kia Sorento, front right; 2016-2018 Hyundai Santa Fe, front right; 2016-2018 Hyundai Santa Fe Sport, front right; and 2017-2019 Hyundai Santa Fe XL, front right. For 2017-2019 Hyundai Santa Fe XL applications, inspect the intermediate shaft for damage and replace it if needed when servicing the CV axle. ABS axles fit non-ABS applications unless otherwise noted. Verify spline count, axle nut thread size, and compressed length before installation.
Quality Assurance
KA-8133 is a new TrakMotive CV axle shaft built by an ISO 9001:1007 and TS 16949:2009 certified company. It is backed by a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Hyundai | Santa Fe XL | 3.3L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2018 | Hyundai | Santa Fe | 3.3L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2018 | Hyundai | Santa Fe Sport | 2.0L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2018 | Hyundai | Santa Fe XL | 3.3L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2018 | Kia | Sorento | 3.3L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2018 | Kia | Sorento | 2.0L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Hyundai | Santa Fe | 3.3L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Hyundai | Santa Fe Sport | 2.0L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Hyundai | Santa Fe XL | 3.3L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2017 | Kia | Sorento | 3.3L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Kia | Sorento | 2.0L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Hyundai | Santa Fe | 3.3L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Hyundai | Santa Fe Sport | 2.0L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Kia | Sorento | 3.3L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Kia | Sorento | 2.0L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Kia | Sorento | 3.3L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
