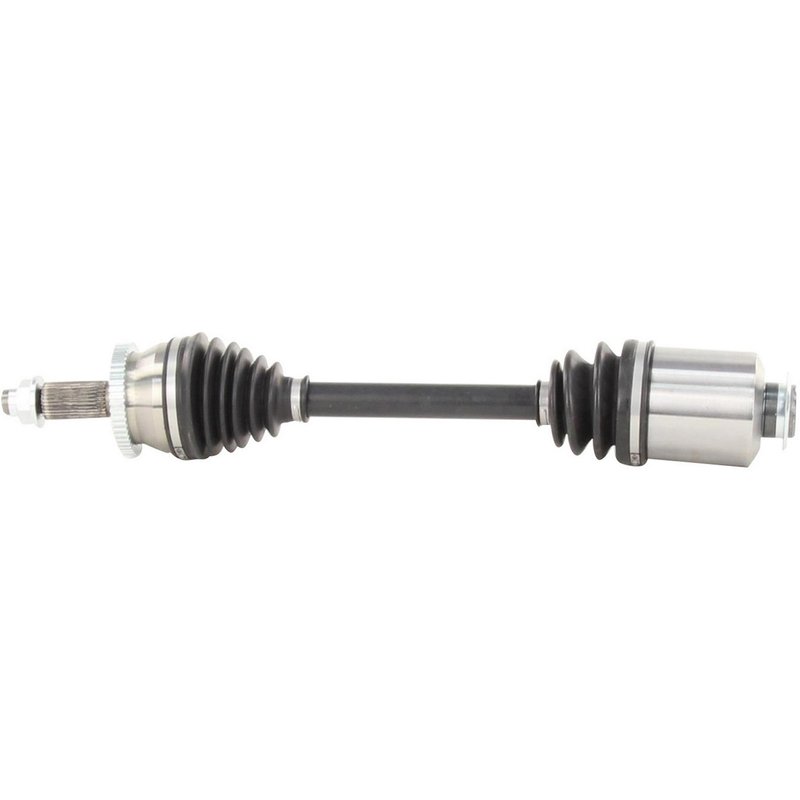

TrakMotive KA-8137 CV Axle Shaft - Front Right
| Brand | TrakMotive KA-8137 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 52 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.94 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.7 |
| Overall Compressed Length (mm) | 602 |
| Product line | AAR CV Axle Shaft |
| Fits | Kia · 7 vehicles |
New CV axle shaft. Built with spline connections and conventional joint design.
Neoprene boot material. Helps protect the joint from dirt and moisture.
ABS tone ring included. Ready for applications that use a toothed ABS ring.
Cross-references TrakMotive KA-8137, 49501C5250 and NCV75087 for the same application. See all 3.
Front Right CV Axle for Kia Sorento
TrakMotive KA-8137 is a new front right CV axle shaft for select Kia Sorento applications. It is built as an AAR CV axle shaft with a neoprene boot, ABS tone ring, and included axle nut for a direct replacement on listed vehicles.
Key Features
- Fits 2015-2018 Kia Sorento, front right
- Fits 2016-2018 Kia Sorento, front right
- New CV axle shaft from TrakMotive
- ABS tone ring included with 52-tooth toothed ring
- Neoprene boot material for driveline protection
- Inboard joint type: female; outboard joint type: conventional
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and stake locking type
- Overall compressed length: 23.7 in. (602 mm)
Product Details
The TrakMotive AAR CV Axle Shaft line focuses on replacement driveline components built for specific vehicle applications. Part number KA-8137 is engineered for the front right position on the Kia Sorento and uses 28 inboard splines and 30 outboard splines for the listed fitments. This axle also includes a toothed ABS ring with 52 teeth, making it a direct option for vehicles that require ABS tone ring integration. This part cross-references Monroe Shocks & Struts 172286 for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn outer CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage from a damaged boot
- ABS warning concerns related to a worn or missing tone ring
- Excessive driveline play on the front right side
Installation Notes
Verify spline count, compressed length, and axle nut thread size before installation. Confirm front right placement and match the ABS tone ring configuration to the vehicle’s original setup. Inspect seals, hub condition, and surrounding suspension components during replacement to help ensure proper operation on the Kia Sorento. The included axle nut uses a stake-style locking design.
Quality Assurance
TrakMotive backs this axle shaft with a limited lifetime warranty. The company states ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and quality processes for driveline replacement parts.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Kia | Sorento | FWD | 2.4L | L4 | Front Right | AAR CV Axle Shaft |
| 2018 | Kia | Sorento | AWD | 2.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Kia | Sorento | FWD | 2.4L | L4 | Front Right | AAR CV Axle Shaft |
| 2017 | Kia | Sorento | AWD | 2.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Kia | Sorento | FWD | 2.4L | L4 | Front Right | AAR CV Axle Shaft |
| 2016 | Kia | Sorento | AWD | 2.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Kia | Sorento | AWD | 2.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
