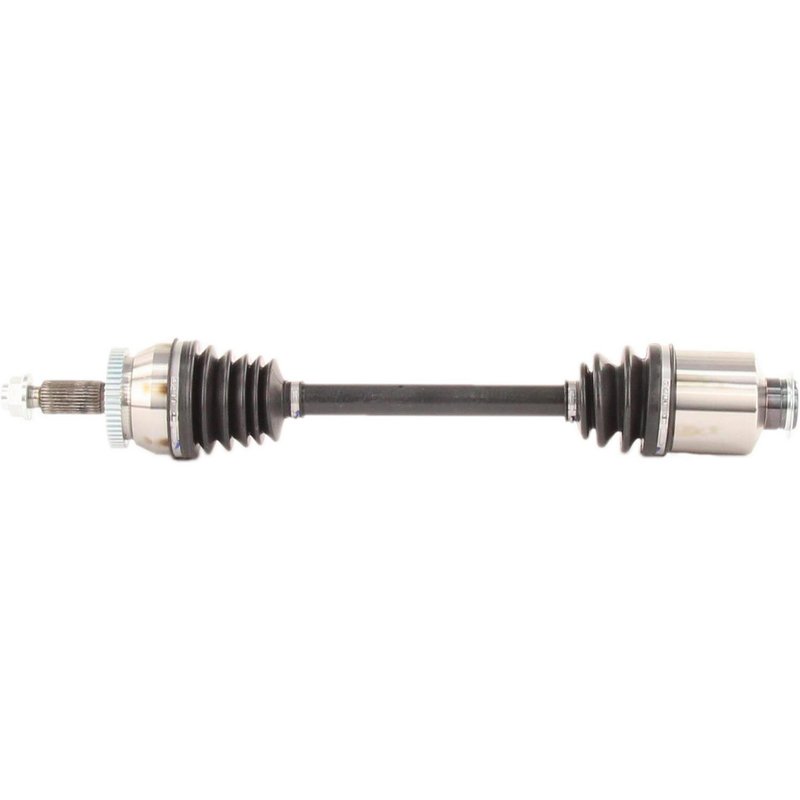

TrakMotive KA-8140 CV Axle Shaft - Front Right

Reliable CV Axle Shaft for Kia Sedona Vehicles

The TrakMotive AAR CV Axle Shaft KA-8140 is engineered to provide dependable driveline performance for Kia Sedona models. Designed with precision, this new CV axle shaft ensures smooth power transfer and durability for your vehicle's front-wheel drive system.

• Compatible with Kia Sedona models
• Includes ABS tone ring with 52 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut with stake locking type included
• Overall compressed length of 26.38 inches (670 mm)
• Inboard female joint with 28-2 splines and outboard conventional joint with 30 splines

About the TrakMotive AAR CV Axle Shaft Product Line

The AAR CV Axle Shaft line by TrakMotive focuses on delivering high-quality constant velocity components designed to meet or exceed OEM specifications. This product line emphasizes precise fitment and reliable performance, making it suitable for vehicles like the Kia Sedona that require exacting driveline parts. The KA-8140 model is part of this line, offering a new axle shaft solution with integrated ABS tone ring and durable neoprene boots.

Technical Specifications and Features

This CV axle shaft features a 52-tooth ABS ring with a toothed design, ensuring accurate wheel speed sensor readings. The included ABS tone ring supports anti-lock braking system functionality. The axle nut is a hex head type measuring 1.26 inches (32 mm) across flats, with a height of 0.94 inches (24 mm) and a length of 1.45 inches (36.95 mm). It uses an M22x1.5 thread size and a stake locking mechanism for secure installation. The neoprene boot material provides resistance to wear and environmental factors, protecting the joints. The inboard joint is female with a spline connection style featuring 28-2 splines, while the outboard joint is conventional with 30 splines. The overall compressed length of the axle shaft is 26.38 inches (670 mm), designed to fit Kia Sedona driveline requirements precisely.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Kia Sedona
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boots
• Ensures secure wheel attachment with included hex axle nut

Installation Notes and Tips

When installing the TrakMotive KA-8140 CV axle shaft, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly aligned with the wheel speed sensor for accurate ABS operation. Inspect the neoprene boots for any damage during installation to maintain joint protection. This axle shaft is designed for direct replacement on compatible Kia Sedona models, facilitating a straightforward installation process.

Quality Assurance and Warranty

The TrakMotive AAR CV Axle Shaft KA-8140 is a new, not remanufactured, component built to meet OEM standards. It undergoes rigorous quality control to ensure durability and performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality expectations for driveline components.
