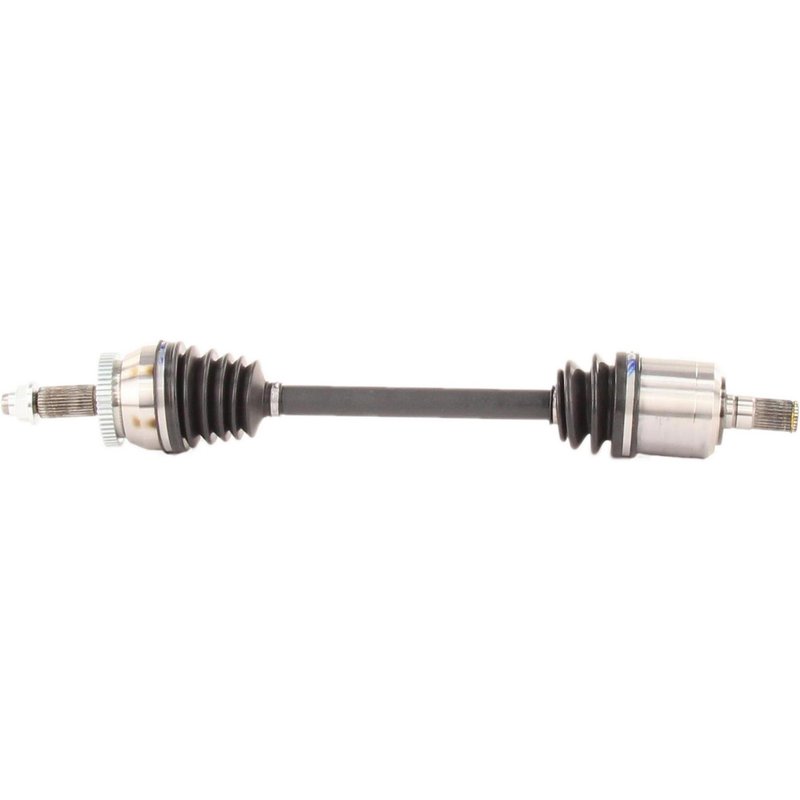

TrakMotive KA-8144 CV Axle Shaft - Front Left
| Brand | TrakMotive KA-8144 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 52 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | HEX |
| Axle Nut Height (in) | 0.94 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 28.56 |
| Overall Compressed Length (mm) | 725.5 |
| Product line | AAR CV Axle Shaft |
| Fits | Kia · 4 vehicles |
OE-style replacement. New CV axle shaft with a direct-fit design for straightforward installation.
Neoprene boot material. Helps resist wear while keeping the joint protected and flexible.
ABS tone ring included. Built with a toothed ring and matching axle nut for a complete assembly.
Cross-references TrakMotive KA-8144, 49500A9300 and NCV75086 for the same application. See all 3.
TrakMotive KA-8144 CV Axle Shaft
The TrakMotive KA-8144 is a new front left CV axle shaft for select 2015-2018 Kia Sedona models. Built for direct replacement service, it includes the axle nut and ABS tone ring details needed for the listed application.
Key Features
- Fits 2015-2018 Kia Sedona, front left
- TrakMotive AAR CV Axle Shaft line
- New CV axle shaft for driveline repair
- Overall compressed length: 28.56 in. (725.5 mm)
- Inboard joint type: male with 28 inboard splines
- Outboard joint type: conventional with 30 outboard splines
- ABS tone ring included; 52-tooth toothed ring
- Neoprene boot material
- Axle nut included: M22 x 1.5, 32 mm hex, stake type
Product Details
The TrakMotive KA-8144 AAR CV Axle Shaft is engineered for the front left position on 2015-2018 Kia Sedona vehicles. This axle shaft uses a spline-style shaft connection at both ends, a male inboard joint, and a conventional outboard joint to match the listed fitment. The included ABS tone ring and 52-tooth toothed ring support vehicles equipped with ABS-related wheel speed sensing requirements. This part cross-references OE-style numbers 49500A9300 and NCV75086 for the same application.
As part of the TrakMotive AAR CV Axle Shaft line, KA-8144 is a new replacement axle built for direct driveline service on the Kia Sedona front left application. The axle nut is included and specified as M22 x 1.5 with a 32 mm hex and stake locking type.
Common Repair Symptoms
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- ABS warning concerns related to a damaged tone ring area
- Excessive driveline play or noise from worn splines or joints
Installation Notes
Verify the front left position, spline count, axle nut thread size, and ABS ring details before installation. Confirm the vehicle uses the listed 2015-2018 Kia Sedona application and compare the original axle length of 28.56 in. (725.5 mm) to the replacement part. Follow factory service procedures for axle nut staking and final torque specifications.
Quality Assurance
TrakMotive states this axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for the KA-8144 CV axle shaft.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2018 | Kia | Sedona | Front Left | Updated Design; AAR CV Axle Shaft |
| 2017 | Kia | Sedona | Front Left | Updated Design; AAR CV Axle Shaft |
| 2016 | Kia | Sedona | Front Left | Updated Design; AAR CV Axle Shaft |
| 2015 | Kia | Sedona | Front Left | Updated Design; AAR CV Axle Shaft |
