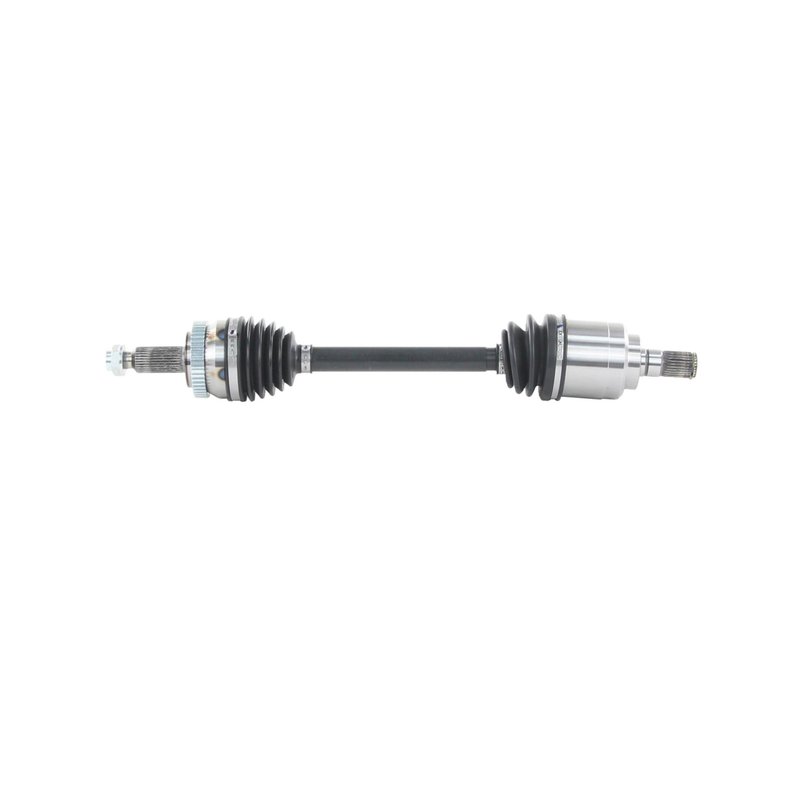

TrakMotive KA-86003 CV Axle Shaft - Front Left
| Brand | TrakMotive KA-86003 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 26 |
| Overall Compressed Length (mm) | 600 |
| Overall Extended Length (in) | 28.06 |
| Overall Extended Length (mm) | 714 |
| Product line | AAR CV Axle Shaft |
| Fits | Kia · 3 vehicles |
Premium grade. Built as a CV axle shaft with a conventional outboard joint.
Neoprene boot material. Helps protect the inboard joint from wear and contamination.
ABS-ready design. Uses a toothed ring with 48 teeth for ABS applications.
Cross-references TrakMotive KA-86003 and NCV75112 for the same application. See all 2.
Front Left CV Axle Shaft for Kia Cadenza
TrakMotive KA-86003 is a premium CV axle shaft for the front left position on select 2014-2016 Kia Cadenza models. It is built to match the OE AAR design for direct replacement service on the listed application.
Key Features
- Fits 2014-2016 Kia Cadenza, front left
- OE AAR design for the listed application
- Premium grade CV axle shaft
- Inboard joint type: male
- Outboard joint type: conventional
- Inboard splines: 28; outboard splines: 30
- ABS ring: 48-tooth, toothed style
- Overall compressed length: 600 mm (26 in); extended length: 714 mm (28.06 in)
- Inboard boot material: neoprene; outboard boot material: thermoplastic
- Axle nut thread size: M22x1.5; hex/socket size: 32 mm
Product Details
TrakMotive AAR CV Axle Shaft KA-86003 is engineered for the front left driveline position on the 2014-2016 Kia Cadenza. The AAR CV axle shaft line is built around OE-style fit and function for applications that use this axle architecture, with ABS ring details and spline counts matched to the listed vehicle fitment. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration caused by axle wear
- Torn or deteriorated axle boots
- Grease leakage around the CV joint area
- Noise or play from a damaged front left axle assembly
Installation Notes and Tips
Verify front left fitment against the vehicle’s axle configuration before installation. Confirm axle nut thread size, hex size, spline counts, and ABS ring details match the original part. Inspect related seals, hub components, and suspension hardware during replacement to help prevent repeat driveline noise or leakage.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a premium replacement part from an ISO 9001:2008 and TS 16949:2009 certified company. The KA-86003 is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2016 | Kia | Cadenza | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2015 | Kia | Cadenza | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2014 | Kia | Cadenza | Front Left | OE AAR design; AAR CV Axle Shaft |
