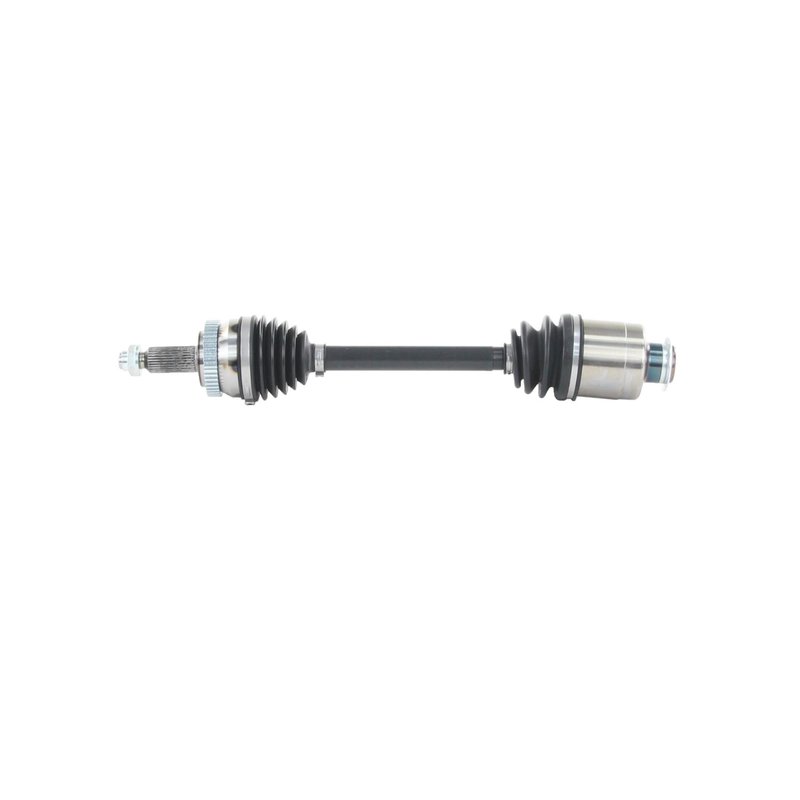

TrakMotive KA-86004 CV Axle Shaft - Front Right
| Brand | TrakMotive KA-86004 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 23.88 |
| Overall Compressed Length (mm) | 606 |
| Overall Extended Length (in) | 25.94 |
| Overall Extended Length (mm) | 660 |
| Product line | AAR CV Axle Shaft |
| Fits | Kia · 3 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward driveline service.
Premium-grade construction. Neoprene and thermoplastic boots help protect the joints.
Certified quality. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive KA-86004 and NCV75111 for the same application. See all 2.
TrakMotive KA-86004 Front Right CV Axle Shaft
TrakMotive KA-86004 is a premium CV axle shaft for the front right position on select Kia Cadenza models. Built for 2014-2016 Kia Cadenza applications, it supports smooth power transfer from the transaxle to the wheel while matching the fitment and spline details required for this vehicle.
Key Features
- Fits 2014-2016 Kia Cadenza, front right
- Premium-grade CV axle shaft for driveline service
- 48-tooth toothed ABS ring with no tone ring included
- 28-2T inboard splines and 30 outboard splines
- Female inboard joint with conventional outboard joint design
- Neoprene inboard boot and thermoplastic outboard boot materials
- Overall compressed length: 23.88 in. (606 mm)
- Overall extended length: 25.94 in. (660 mm)
- Axle nut thread size: M22x1.5; hex/socket size: 32 mm
Product Details
TrakMotive KA-86004 is part of the AAR CV Axle Shaft line, a product line focused on replacement driveline components for passenger vehicles. This axle is engineered for the front right side of the Kia Cadenza and follows the listed spline counts, joint styles, and length specifications needed for proper installation and operation. The ABS axle configuration uses a 48-tooth toothed ring and is noted to fit non-ABS applications unless otherwise specified.
This part cross-references Monroe Shocks & Struts (e.g., NCV75111) for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage from damaged axle boots
- Excessive driveline play caused by a fatigued axle shaft
- ABS-related fitment concerns when replacing the front right axle on a Kia Cadenza
Installation Notes and Tips
Before installation, inspect the intermediate shaft for damage and replace it if necessary, as recommended for this application. Verify axle nut thread size, hex size, spline counts, and overall length against the removed part before assembly. Confirm front right placement on the 2014-2016 Kia Cadenza and check surrounding suspension and hub components for wear that could affect the new axle.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for driveline replacement parts.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2016 | Kia | Cadenza | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2015 | Kia | Cadenza | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2014 | Kia | Cadenza | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
