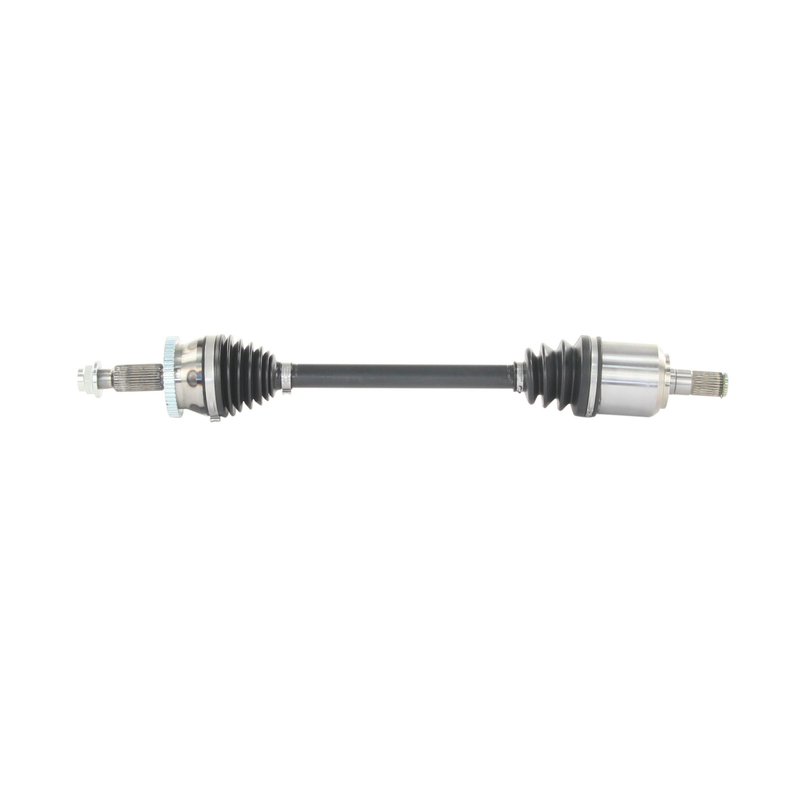

TrakMotive KA-86007 CV Axle Shaft - Front Left
| Brand | TrakMotive KA-86007 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 52 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M24*1.5 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 26.63 |
| Overall Compressed Length (mm) | 677 |
| Product line | AAR CV Axle Shaft |
| Fits | Kia · 2 vehicles |
Premium grade. Built as a CV axle shaft with a conventional outboard joint.
Toothed ABS ring. Provides 52 teeth for ABS signal compatibility.
ISO certified. Made by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive KA-86007 and NCV75131 for the same application. See all 2.
Front Left CV Axle Shaft for Kia Sorento
The TrakMotive AAR CV Axle Shaft, part number KA-86007, is a premium driveline replacement for the front left position on select Kia Sorento models. It is built for 2019-2020 Kia Sorento applications and supports standard-duty replacement needs with OE-style fitment details.
Key Features
- Fits 2019-2020 Kia Sorento, front left
- TrakMotive AAR CV Axle Shaft, part number KA-86007
- Premium grade replacement axle shaft for driveline service
- 27 inboard splines and 30 outboard splines
- Male inboard joint with conventional outboard joint design
- Overall compressed length: 26.63 in. (677 mm)
- ABS ring tooth count: 52 with toothed ring type
- Axle nut thread size: M24x1.5; hex/socket size: 32 mm
Product Details
KA-86007 is a front left CV axle shaft engineered for the Kia Sorento platform listed above. The axle uses a 27-spline inboard connection and a 30-spline outboard connection, along with a conventional outboard joint and male inboard joint configuration. ABS-related specifications include a 52-tooth toothed ring design, while the tone ring is not included. TrakMotive identifies this AAR CV Axle Shaft line as a premium replacement option, and the manufacturer notes ISO 9001:2008 and TS 16949:2009 certified production practices.
This part cross-references Monroe Shocks & Struts (e.g., NCV75131) for the same application.
Common Replacement Uses
- Front left axle shaft replacement for a worn or damaged Kia Sorento CV axle
- Repair for clicking or popping during turns caused by CV joint wear
- Service for vibration or driveline shudder from a failing axle assembly
- Replacement for torn boots, grease loss, or contaminated CV joints
- Correction for ABS-related axle service when the original axle is worn
Installation Notes
Verify axle nut thread size, hex size, and overall length before installation. This axle uses a 32 mm axle nut socket size and M24x1.5 thread specification, and the axle nut is not included. Confirm the vehicle is a 2019-2020 Kia Sorento, front left application before ordering. ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing.
Quality Assurance
TrakMotive backs this AAR CV Axle Shaft with a limited lifetime warranty. The brand also states that its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certified company standards.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Kia | Sorento | 2.4L | L4 | Front Left | Standard Duty Replacement; AAR CV Axle Shaft |
| 2019 | Kia | Sorento | 2.4L | L4 | Front Left | Standard Duty Replacement; AAR CV Axle Shaft |
