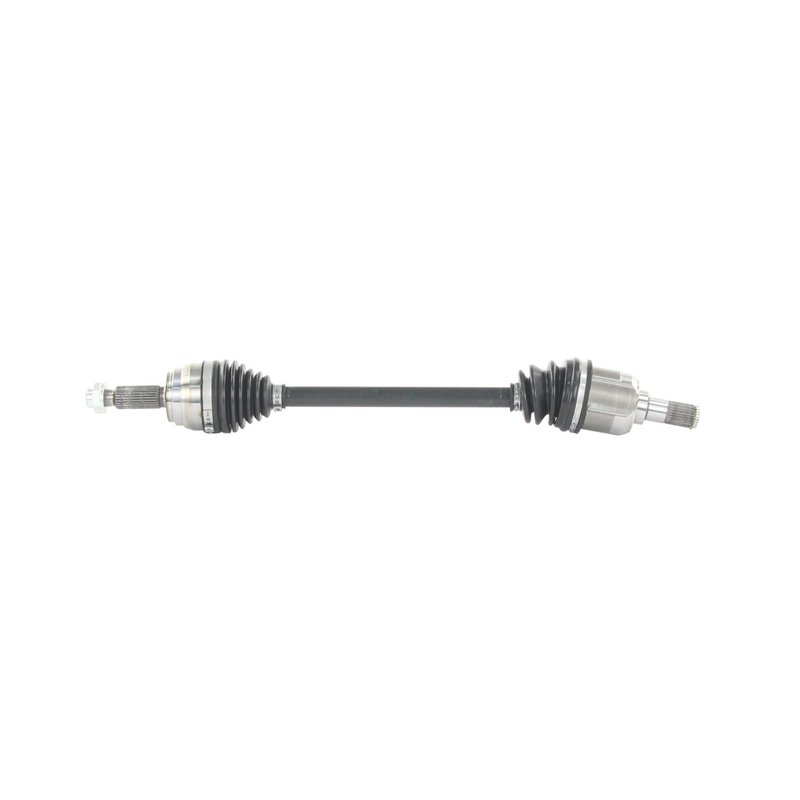

TrakMotive KA-86010 CV Axle Shaft - Front Left
| Brand | TrakMotive KA-86010 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 27 |
| Overall Compressed Length (mm) | 686.5 |
| Overall Compressed Length (mm) | 687 |
| Product line | CV Axle Shaft |
| Fits | Hyundai and Kia · 4 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline performance.
Conventional joint design. Uses 27 splines inboard and outboard for a precise fit.
ABS-ready compatibility. Fits non-ABS applications unless otherwise noted.
Cross-references TrakMotive KA-86010 and NCV75137 for the same application. See all 2.
CV Axle Shaft for Hyundai and Kia
TrakMotive KA-86010 is a premium CV axle shaft built for front-left driveline service on select Hyundai and Kia applications. It is listed for the 2021 Hyundai Elantra with manual transmission and 2019-2021 Kia Forte standard duty replacement use.
Key Features
- Front left CV axle shaft for driveline repair
- Premium grade replacement part
- 27-spline inboard and 27-spline outboard design
- Male inboard joint with conventional outboard joint
- Overall compressed length: 27 in. (686.5-687 mm)
- Axle nut thread size: M22x1.5 with 32 mm socket size
- No ABS tone ring included; ABS ring tooth count: 0
- Interchange reference: NCV75137
Detailed Description
TrakMotive KA-86010 is a CV axle shaft for front-left installation on the 2021 Hyundai Elantra with manual transmission and the 2019-2021 Kia Forte. The axle uses a male inboard joint, a conventional outboard joint, and 27 splines at both ends for a direct-fit driveline replacement. Its 27-inch compressed length and M22x1.5 axle nut specification help match the original application requirements for these Hyundai Elantra and Kia Forte fitments. TrakMotive identifies this CV axle shaft as part of its premium line, with manufacturing backed by ISO 9001:2008 and TS 16949:2009 certified processes.
This part cross-references NCV75137 for the same application.
What It Is Used For
- Replacing a worn or noisy front-left CV axle shaft
- Addressing clicking or popping during turns
- Correcting vibration caused by axle wear or joint play
- Restoring driveline transfer on affected Hyundai Elantra and Kia Forte models
- Replacing a damaged axle with the correct spline and length specification
Installation Notes and Tips
Verify front-left fitment by year, model, and transmission before installation. Confirm the axle nut thread size, socket size, and compressed length against the original part. This axle does not include an axle nut, and it does not include an ABS tone ring.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:2008 and TS 16949:2009 certified company processes for manufacturing control.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2021 | Hyundai | Elantra | — | 2.0L | L4 | Front Left | With Manual Transmission; CV Axle Shaft |
| 2021 | Kia | Forte | Manual | 2.0L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Kia | Forte | Manual | 2.0L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Kia | Forte | Manual | 2.0L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
