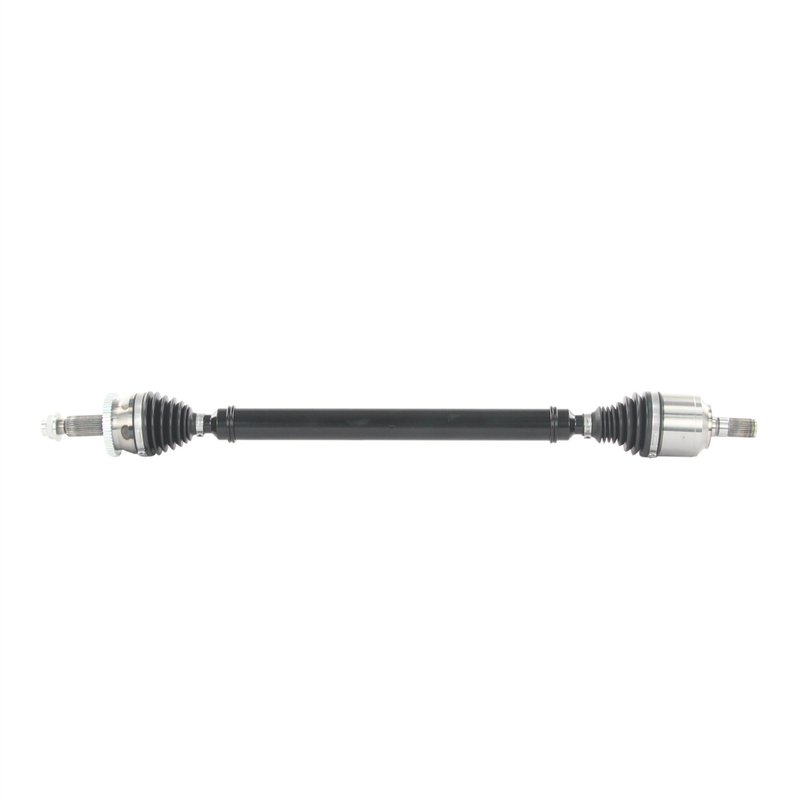

TrakMotive KA-86012 CV Axle Shaft - Front Right
| Brand | TrakMotive KA-86012 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 52 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M24*1.5 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 38.75 |
| Overall Compressed Length (mm) | 984 |
| Product line | CV Axle Shaft |
| Fits | Kia · 2 vehicles |
OE-style replacement. Direct-fit CV axle shaft for straightforward installation.
ABS-ready design. Toothed ring supports ABS-equipped applications when specified.
Premium construction. Built to ISO 9001:2008 and TS 16949:2009 standards.
Cross-references TrakMotive KA-86012 and NCV75132 for the same application. See all 2.
Front Right CV Axle Shaft for Kia Sorento
TrakMotive KA-86012 is a premium CV axle shaft for the front right position on select 2019-2020 Kia Sorento models. It is built for standard-duty replacement service and is engineered around the listed spline counts, ABS ring specification, and axle dimensions for a direct driveline repair.
Key Features
- Fits 2019-2020 Kia Sorento, front right
- TrakMotive CV Axle Shaft, part number KA-86012
- Premium grade replacement for driveline service
- Inboard joint type: male
- Outboard joint type: conventional
- 27 inboard splines and 30 outboard splines
- ABS ring: toothed, 52-tooth count
- Overall compressed length: 984 mm (38.75 in)
- Axle nut thread size: M24x1.5 with 32 mm hex size
Product Details
This TrakMotive CV axle shaft is built for the front right side of the 2019-2020 Kia Sorento and matches the listed application with a 52-tooth toothed ABS ring, 27 inboard splines, and 30 outboard splines. KA-86012 is a standard-duty replacement axle for driveline repair where the original shaft has worn joints, vibration, or clicking during turns. TrakMotive identifies this part as a premium-grade component and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing practices. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Repair Symptoms
- Clicking or popping noise while turning
- Vibration during acceleration
- Grease leakage around the axle boot area
- Worn or damaged CV joint movement
- Front right driveline noise on a Kia Sorento
Installation Notes
Verify axle nut thread size, hex size, spline count, and ABS ring style before installation. The axle nut is not included, so reuse or replace it according to service requirements. Confirm the vehicle is a 2019-2020 Kia Sorento, front right, and compare the original shaft length and joint configuration to KA-86012 before assembly.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:2008 and TS 16949:2009 certified manufacturing, supporting consistent production control for driveline replacement parts.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2020 | Kia | Sorento | FWD | 2.4L | L4 | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Kia | Sorento | FWD | 2.4L | L4 | Front Right | Standard Duty Replacement; CV Axle Shaft |
