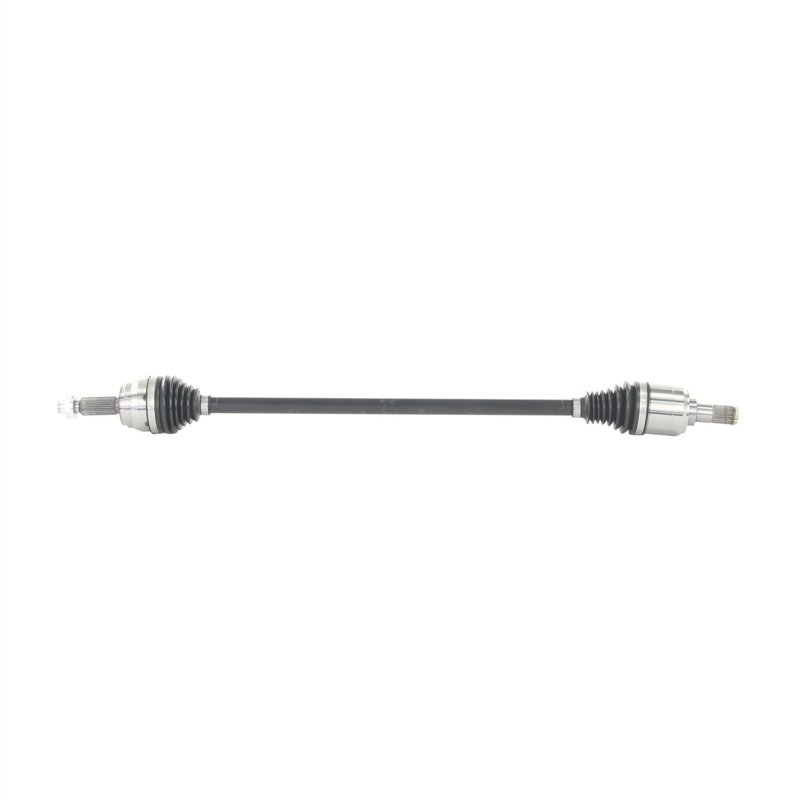

TrakMotive KA-86014 CV Axle Shaft - Front Right
| Brand | TrakMotive KA-86014 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M2*1.5 |
| Axle Nut Thread Size | M2x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 37.94 |
| Overall Compressed Length (mm) | 963 |
| Product line | CV Axle Shaft |
| Fits | Kia · 3 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline performance.
ABS-ready design. Configured for non-ABS applications unless otherwise noted.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive KA-86014 for the same application. See all 1.
CV Axle Shaft for Kia Forte Front Right
TrakMotive KA-86014 is a premium CV axle shaft for the front right position on 2019-2021 Kia Forte models. It is built for standard-duty replacement service and is specified for non-ABS applications unless otherwise noted.
Key Features
- Fits 2019-2021 Kia Forte, front right
- Premium-grade CV axle shaft for driveline repair
- Inboard joint type: male
- Outboard joint type: conventional
- 27 inboard splines and 27 outboard splines
- Overall compressed length: 963 mm (37.94 in)
- ABS tone ring not included; ABS ring tooth count: 0
- Axle nut thread size: M2x1.5; socket size: 32 mm
Detailed Description
TrakMotive KA-86014 is a direct-fit CV axle shaft for the front right side of the Kia Forte, covering 2019, 2020, and 2021 model years. This axle is engineered around the listed spline counts, compressed length, and joint configuration to match the original driveline layout for standard-duty replacement work. TrakMotive positions the CV Axle Shaft line as a premium replacement option, and the brand states its manufacturing is backed by ISO 9001:2008 and TS 16949:2009 certification.
This part cross-references TrakMotive KA-86014 for the same application.
What It Helps Address
- Clicking or popping from a worn front right CV axle
- Vibration during acceleration from driveline wear
- Grease leakage from a damaged axle assembly
- Noise caused by worn inner or outer CV joints
- Loss of smooth power transfer to the front wheel
Installation Notes and Tips
Verify the front right position, axle nut thread size, and spline count before installation. This axle uses a 32 mm axle nut socket size and does not include the axle nut. ABS tone ring is not included, and the axle is listed for non-ABS applications unless otherwise noted. Confirm vehicle configuration against the fitment data for the 2019-2021 Kia Forte before service.
Quality Assurance
TrakMotive lists this CV axle shaft under its premium grade line and backs it with a limited lifetime warranty. The company also states that its manufacturing is certified to ISO 9001:2008 and TS 16949:2009 standards.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2021 | Kia | Forte | Manual | 2.0L | L4 | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Kia | Forte | Manual | 2.0L | L4 | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Kia | Forte | Manual | 2.0L | L4 | Front Right | Standard Duty Replacement; CV Axle Shaft |
