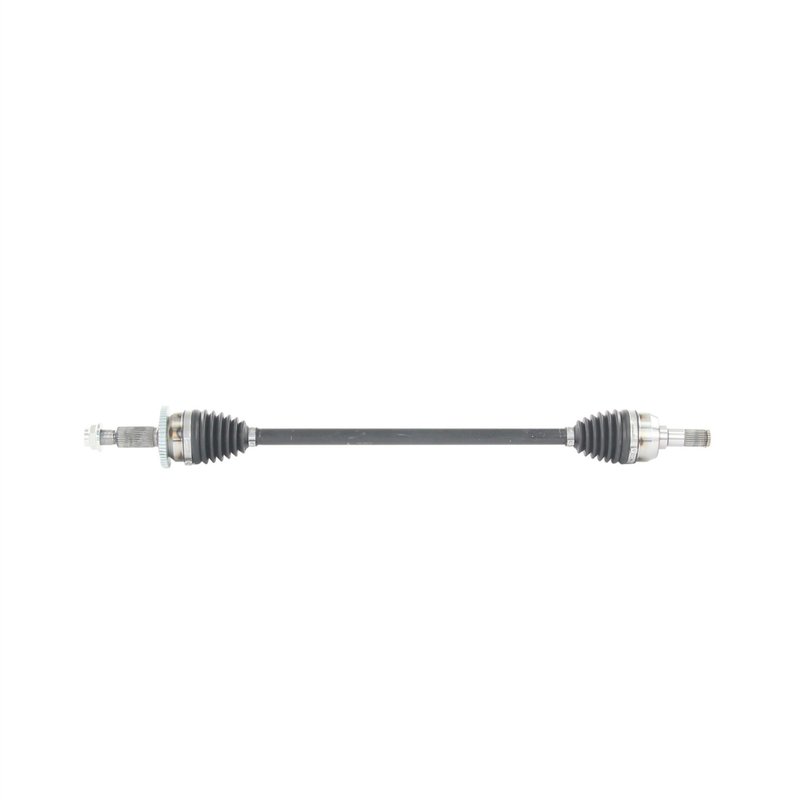

TrakMotive KA-86015 CV Axle Shaft - Rear Left
| Brand | TrakMotive KA-86015 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 52 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M24*1.5 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 32.88 |
| Overall Compressed Length (mm) | 835 |
| Product line | CV Axle Shaft |
| Fits | Kia · 2 vehicles |
CV axle shaft. Premium replacement for driveline and axle applications.
ABS-ready design. Toothed ring with 52 teeth for ABS-equipped applications.
Quality certified. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive KA-86015 for the same application. See all 1.
CV Axle Shaft for Rear Left Sorento
TrakMotive KA-86015 is a premium CV axle shaft for the rear left position on 2019-2020 Kia Sorento models. It is built for standard duty replacement service and matches the specified spline, seal, and axle nut dimensions for the application.
Key Features
- Fits 2019-2020 Kia Sorento, rear left
- Premium-grade CV axle shaft for driveline repair
- Inboard joint type: male
- Outboard joint type: conventional
- 25 inboard splines and 30 outboard splines
- Overall compressed length: 835 mm (32.88 in)
- ABS ring tooth count: 52 with toothed ring design
- Axle nut thread size: M24x1.5; hex/socket size: 32 mm
Detailed Description
TrakMotive KA-86015 is a CV axle shaft engineered for the rear left side of the 2019-2020 Kia Sorento. The axle uses a male inboard joint and a conventional outboard joint, with 25 inboard splines, 30 outboard splines, and an overall compressed length of 835 mm to match the listed application. The ABS ring is toothed with 52 teeth, and the axle is specified without an included tone ring or axle nut.
TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles. KA-86015 is a standard duty replacement for the Kia Sorento rear left application and is identified by part number KA-86015 for ordering and catalog lookup.
This part cross-references TrakMotive KA-86015 for the same application.
What It Helps Fix
- Clicking or popping noises from a worn CV axle assembly
- Vibration during acceleration from driveline wear
- Grease leakage from a damaged axle boot or joint
- Excessive play in the rear left axle shaft
- ABS-related driveline service needs on the listed Sorento application
Installation Notes
Verify spline count, axle length, and axle nut thread size before installation. Use the listed 32 mm axle nut socket size and M24x1.5 thread specification when servicing the axle nut. Confirm rear left placement and application details on the vehicle before removal of the original shaft.
Quality Assurance
TrakMotive manufactures this axle shaft as a premium replacement part from an ISO 9001:2008 and TS 16949:2009 certified company. KA-86015 is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Kia | Sorento | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Kia | Sorento | Rear Left | Standard Duty Replacement; CV Axle Shaft |
