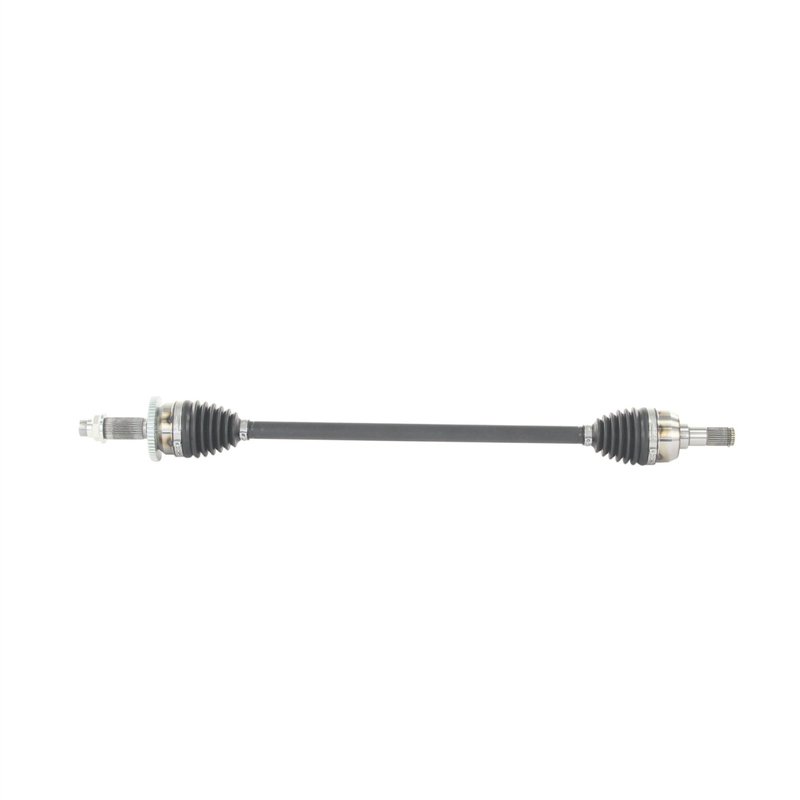

TrakMotive KA-86016 CV Axle Shaft - Rear Right
| Brand | TrakMotive KA-86016 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 52 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M24*1.5 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 33.5 |
| Overall Compressed Length (mm) | 850.5 |
| Overall Compressed Length (mm) | 851 |
| Product line | CV Axle Shaft |
| Fits | Kia · 2 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline replacement.
Toothed ABS ring. Provides 52 teeth for consistent wheel speed signal pickup.
ISO certified. Made by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive KA-86016 for the same application. See all 1.
Rear Right CV Axle Shaft for Kia Sorento
The TrakMotive KA-86016 is a premium CV axle shaft for the rear right position on select 2019-2020 Kia Sorento models. It is built for standard duty replacement service and is engineered with the spline counts and dimensions needed for the listed application.
Compatible with 2019-2020 Kia Sorento rear right applications, this axle shaft supports driveline repair where the original axle is worn, noisy, or no longer transferring power smoothly. The KA-86016 is part of TrakMotive’s CV Axle Shaft line and is backed by the company’s manufacturing standards.
Key Features
- Part number KA-86016 CV axle shaft for rear right fitment
- Fits 2019-2020 Kia Sorento, rear right
- Premium grade replacement for standard duty service
- Male inboard joint with conventional outboard joint design
- 25 inboard splines and 30 outboard splines
- ABS ring with 52 teeth; ABS tone ring not included
- Overall compressed length: 850.5-851 mm (33.5 in)
- Axle nut thread size: M24x1.5; 32 mm hex/socket size
Detailed Description
TrakMotive KA-86016 is a rear right CV axle shaft for the 2019-2020 Kia Sorento. It is specified with a 25-spline inboard connection, 30-spline outboard connection, and an overall compressed length of 850.5-851 mm to match the listed vehicle application. The axle uses a toothed ABS ring with 52 teeth and does not include an ABS tone ring.
TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Restores driveline operation after a worn or damaged rear axle shaft
- Addresses clicking, vibration, or binding from axle wear
- Replaces a shaft with damaged splines or joint wear
- Supports repair of ABS-related axle fitment on the listed Sorento application
- Helps correct noise or rough operation from a failing rear right CV axle
Installation Notes and Tips
Verify rear right fitment, spline count, axle length, and axle nut thread size before installation. This axle uses a 32 mm axle nut hex/socket size and M24x1.5 thread specification. ABS axles fit non-ABS applications unless otherwise noted, so confirm the vehicle’s brake and sensor configuration against the listing before service.
Quality Assurance
TrakMotive states that this CV axle shaft is produced by an ISO 9001:2008 and TS 16949:2009 certified company. The KA-86016 is covered by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Kia | Sorento | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Kia | Sorento | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| No rows match your filter. | ||||
