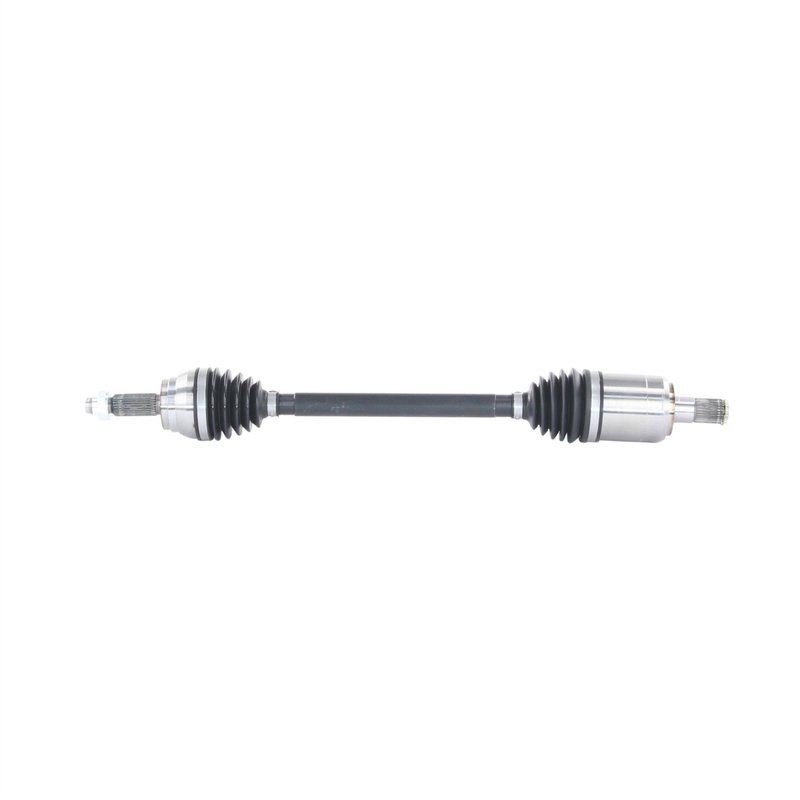

TrakMotive KA-86017 CV Axle Shaft - Front Left
| Brand | TrakMotive KA-86017 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 29.19 |
| Overall Compressed Length (mm) | 741 |
| Overall Extended Length (in) | 31.625 |
| Product line | AAR CV Axle Shaft |
| Fits | Kia · 2 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward service fit.
Premium grade. Built with thermoplastic boots and spline connections.
ABS-ready design. Configured for non-ABS applications unless noted otherwise.
Cross-references TrakMotive KA-86017 for the same application. See all 1.
Front Left CV Axle Shaft for Kia Niro EV
TrakMotive KA-86017 is a premium CV axle shaft for the front left position on the 2023-2024 Kia Niro EV. It follows the OE AAR design for direct replacement service and is built with application-specific spline counts, boot materials, and axle hardware details for a precise driveline match.
Key Features
- Fits 2023-2024 Kia Niro EV, front left
- OE AAR design for the listed application
- Premium-grade CV axle shaft from TrakMotive
- Inboard joint type: male with spline connection
- Outboard joint type: conventional with spline connection
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and stake locking type
- Thermoplastic boot material on both inboard and outboard joints
- 28 inboard splines and 27 outboard splines
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
TrakMotive AAR CV Axle Shaft KA-86017 is engineered for the front left driveline position on the Kia Niro EV. The shaft measures 29.19 inches compressed and 31.625 inches extended, with a male inboard joint and conventional outboard joint for the specified OE-style fitment. TrakMotive positions this AAR CV axle shaft line as a direct replacement solution for vehicles that require the AAR configuration, and KA-86017 is listed specifically for the 2023-2024 Kia Niro EV, front left.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration from a damaged axle shaft
- Torn or deteriorated CV boots that expose joint grease
- Axle noise caused by spline or joint wear
- Front left driveline failure on the Kia Niro EV
Installation Notes
Verify front left position, spline count, axle nut thread size, and OE AAR design before installation. Use the included axle nut and follow the vehicle service procedure for torque and staking requirements. Inspect hub, seals, and surrounding suspension components during replacement to help prevent repeat driveline noise or leakage.
Quality Assurance
TrakMotive lists this AAR CV axle shaft as a premium-grade part from an ISO 9001:2008 and TS 16949:2009 certified company. Manufacturer coverage includes a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Kia | Niro EV | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2023 | Kia | Niro EV | Front Left | OE AAR design; AAR CV Axle Shaft |
