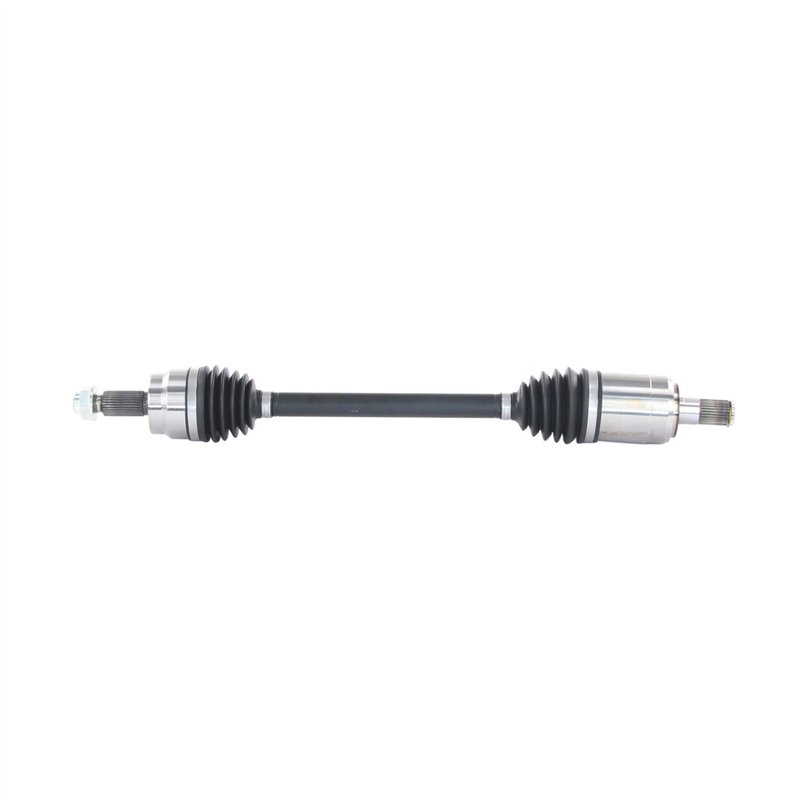

TrakMotive KA-86018 CV Axle Shaft - Front
| Brand | TrakMotive KA-86018 |
|---|---|
| Position | Front |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 28.875 |
| Overall Compressed Length (mm) | 733 |
| Overall Extended Length (in) | 31.5 |
| Product line | AAR CV Axle Shaft |
| Fits | Kia · 2 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward service fit.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Premium grade. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive KA-86018 for the same application. See all 1.
Front CV Axle Shaft for Kia EV6
The TrakMotive AAR CV Axle Shaft, part number KA-86018, is a front driveline replacement for the 2023-2024 Kia EV6. It is built as a premium CV axle shaft with OE AAR design details for direct-fit service on the listed application.
Key Features
- Front CV axle shaft for 2023-2024 Kia EV6
- TrakMotive AAR CV Axle Shaft line for OE-style replacement coverage
- Premium grade construction
- Overall compressed length: 28.875 in. (733 mm)
- Overall extended length: 31.5 in. (801 mm)
- Inboard joint: male, spline connection with 28 splines
- Outboard joint: conventional, spline connection with 30 splines
- Includes axle nut with M24x1.5 thread, 36 mm hex size, and stake locking type
- Thermoplastic boot material on inboard and outboard joints
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
KA-86018 is a front CV axle shaft engineered for the Kia EV6 platform listed above. The axle uses a male inboard joint, conventional outboard joint, and spline-style shaft connections to match the OE AAR design noted for this application. TrakMotive identifies this part as a premium replacement and states that its manufacturing is backed by ISO 9001:2008 and TS 16949:2009 certified company processes. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
What This Part Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration or shudder from a damaged axle shaft
- Grease leakage from deteriorated CV boots
- Driveline noise from spline or joint wear
- Front axle replacement needs on the 2023-2024 Kia EV6
Installation Notes
Verify front application, spline count, and axle nut thread size before installation. The included axle nut uses a 36 mm socket size and stake-style locking design. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring. Confirm compressed and extended length measurements against the original shaft before service.
Quality Assurance
TrakMotive lists this AAR CV Axle Shaft with a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified company standards for manufacturing control.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Kia | EV6 | Front | OE AAR design; AAR CV Axle Shaft |
| 2023 | Kia | EV6 | Front | OE AAR design; AAR CV Axle Shaft |
