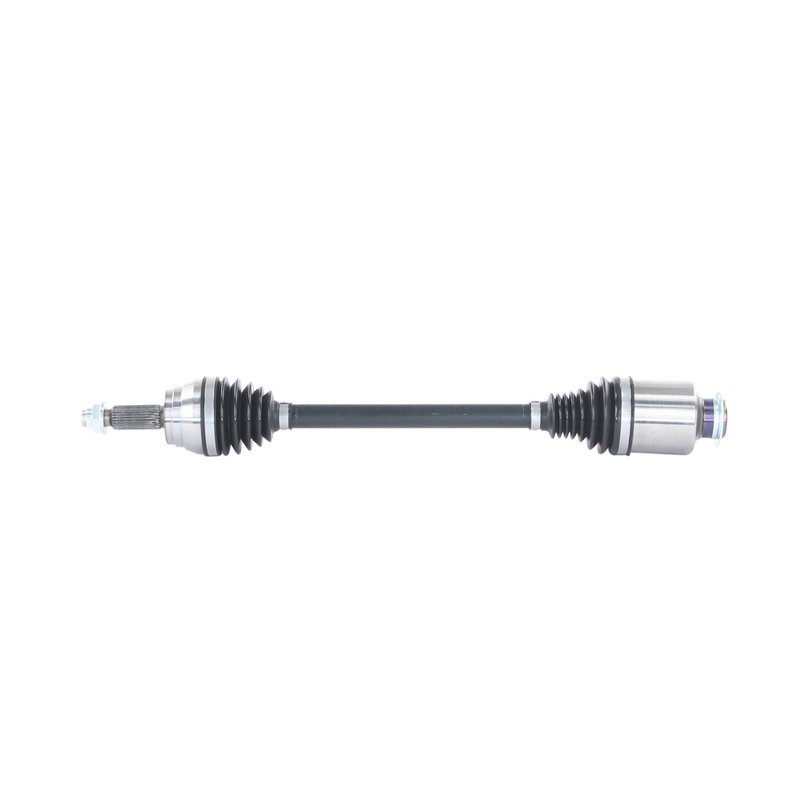

TrakMotive KA-86019 CV Axle Shaft - Front Right
| Brand | TrakMotive KA-86019 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.75 |
| Overall Compressed Length (mm) | 680 |
| Overall Extended Length (in) | 28.75 |
| Product line | AAR CV Axle Shaft |
| Fits | Kia · 2 vehicles |
OE direct replacement. AAR CV axle shaft for straightforward replacement fit.
Premium grade. Built with thermoplastic boots and spline connections.
ABS-ready design. Configured for non-ABS applications unless otherwise noted.
Cross-references TrakMotive KA-86019 for the same application. See all 1.
Front Right CV Axle Shaft for Kia Niro EV
TrakMotive KA-86019 is a premium CV axle shaft for the front right position on the 2023-2024 Kia Niro EV. It is built for direct replacement service with the correct spline counts, axle nut specification, and overall length for this application.
Key Features
- Fits 2023-2024 Kia Niro EV, front right
- Premium-grade AAR CV axle shaft from TrakMotive
- Inboard joint type: female with spline connection
- Outboard joint type: conventional with spline connection
- Inboard splines: 28-2T; outboard splines: 27
- Overall compressed length: 26.75 in. (680 mm)
- Overall extended length: 28.75 in. (731 mm)
- Includes axle nut with M22x1.5 thread, 32 mm hex size, stake locking type
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
TrakMotive KA-86019 is part of the AAR CV Axle Shaft line, a premium driveline replacement option for the Kia Niro EV front right position. This axle uses thermoplastic boot materials on both joints, a female inboard joint, and a conventional outboard joint to match the listed vehicle application. TrakMotive states that its manufacturing is backed by ISO 9001:2008 and TS 16949:2009 certification, and this axle is covered by a limited lifetime warranty.
This part cross-references TrakMotive KA-86019 for the same application.
Common Repair Applications
- Front-end vibration during acceleration
- Clicking or popping from the front right driveline area
- Worn or damaged CV joint components
- Axle shaft noise after driveline wear or impact damage
- Replacement after inspection of the intermediate shaft on the Kia Niro EV
Installation Notes
Confirm the front right fitment before installation on the 2023-2024 Kia Niro EV. The axle nut is included and uses a 32 mm hex with M22x1.5 thread and stake-style locking. When replacing a CV axle, inspect the intermediate shaft for damage and replace it if needed. Verify spline engagement, seal condition, and axle length match the original part before final assembly.
Quality Assurance
TrakMotive manufactures this AAR CV axle shaft under ISO 9001:2008 and TS 16949:2009 certified processes. KA-86019 includes a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Kia | Niro EV | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2023 | Kia | Niro EV | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
