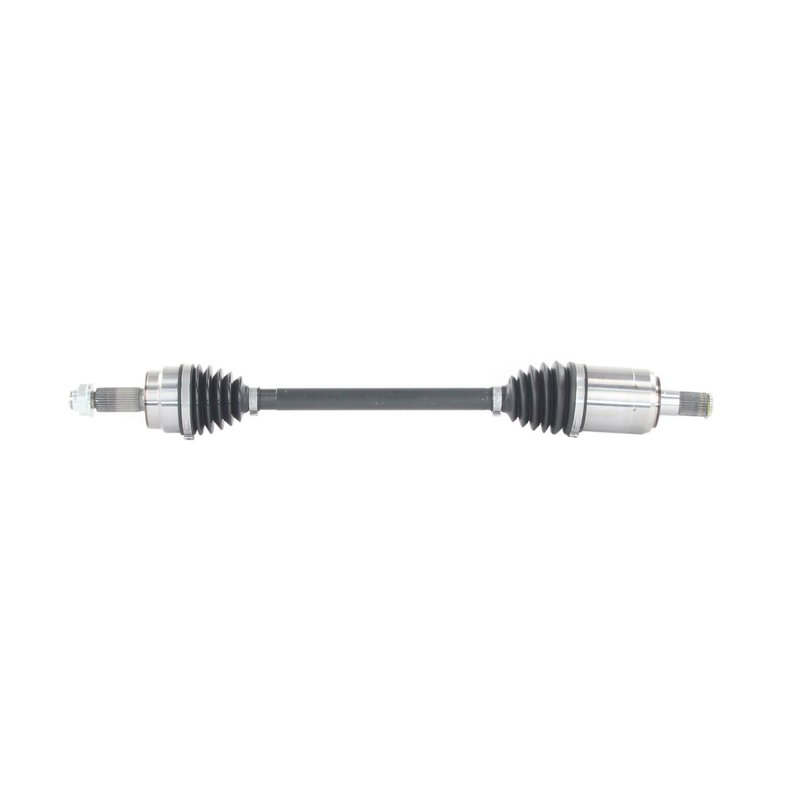

TrakMotive KA-86020 CV Axle Shaft - Front
| Brand | TrakMotive KA-86020 |
|---|---|
| Position | Front |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 29.56 |
| Overall Compressed Length (mm) | 751 |
| Overall Extended Length (in) | 32.25 |
| Product line | AAR CV Axle Shaft |
| Fits | Kia · 2 vehicles |
Premium grade. Built with thermoplastic boots and a conventional outboard joint.
Spline connection. 28 inboard splines and 30 outboard splines for secure engagement.
Includes axle nut. Hex nut with stake locking and M24x1.5 thread size.
Cross-references TrakMotive KA-86020 and NCV75151 for the same application. See all 2.
Front CV Axle Shaft for Kia EV6
The TrakMotive AAR CV Axle Shaft KA-86020 is a front driveline replacement for select Kia EV6 applications. It is built as a premium axle assembly with OE AAR design details, making it a direct-match option for front axle service on 2022-2023 Kia EV6 models.
Key Features
- Front CV axle shaft for 2022-2023 Kia EV6
- OE AAR design for the listed application
- Premium grade construction
- Includes axle nut with M24x1.5 thread size
- 36 mm axle nut socket size and stake-style locking type
- 28 inboard splines and 30 outboard splines
- Thermoplastic boots on the inboard and outboard joints
- Conventional outboard joint and male inboard joint design
- ABS tone ring not included; ABS ring tooth count is 0
Product Details
TrakMotive KA-86020 is part of the AAR CV Axle Shaft line, a product line focused on OE-style axle replacement for driveline service. This axle shaft is specified for the front position on the Kia EV6 and uses spline connections with 28 inboard splines and 30 outboard splines. The assembly measures 29.56 inches compressed and 32.25 inches extended, and it includes the axle nut required for the listed application.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Restoring front-wheel driveline operation on a Kia EV6
- Replacing a worn or noisy front CV axle shaft
- Addressing vibration during acceleration or turning
- Correcting clicking or binding from a damaged CV joint
- Servicing axle spline wear or boot-related contamination
Installation Notes
Fits 2022-2023 Kia EV6, front. Verify spline count, axle nut thread size, and overall length against the original axle before installation. The axle nut is included, and the nut uses a 36 mm socket size with stake-style locking. Confirm whether the vehicle is equipped for the listed non-ABS axle configuration before ordering.
Quality Assurance
TrakMotive states that this axle is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification for its quality management systems.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Kia | EV6 | Front | OE AAR design; AAR CV Axle Shaft |
| 2022 | Kia | EV6 | Front | OE AAR design; AAR CV Axle Shaft |
